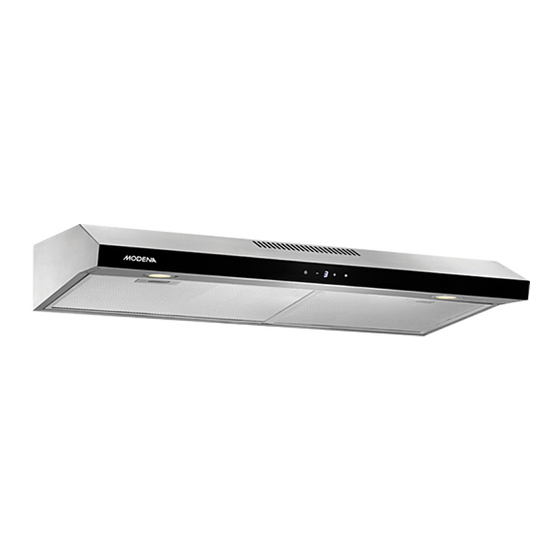

- Page 1 User Manual Book Slim Hood Series...
-
Page 2: Table Of Contents
Operating procedure HOW TO USE Touch button MAINTENANCE Cleaning the cabinet Cleaning the filter TROUBLESHOOTING SPECIFICATION This guide book explains everything you need to know about your new product. Please contact our Customer Care should you need further assistance through www.modena.com. -
Page 3: Features
FEATURES Carbon Filter 2. Direction airflow 3. Control panel 4. Lamp 5. Aluminum filter 6. Filter holder... -
Page 4: Installation
INSTALLATION Exhaust hood is an equipment which sucks smoke and cooking fragrance. With a vent hood, your kitchen will be free from oil particles that may produce bad odor. Check the strength of wall on which the exhaust hood is to be installed. Make sure the wall can sustain the weight / load of the vent hood. -
Page 5: Installation Of Exhaust Hood
The exhaust hood has two holes on it: Hole D and Hole E (look at the picture). To install the spigot/flange and hole cover, follow these instructions: follow these instructions: • For ducting / exhaust system: Install the spigot / flange G on one of the air holes, either D or E. -
Page 6: Installation On The Bottom Part Of The Kitchen Set
4. Install the screw on noth upper holes and set aside 1 cm between the head of the screw and the wall surface (5). 5. Install the exhaust hood on the screwes wall by suspending the vent hood on the screq (6). 6. -
Page 7: Operating Procedure
Operating procedure MODENA Exhaust Hood has 2 (two) work methods as follows: DUCTING / EXHAUST System: • this mode, exhaust hood operates sucking smoke/ cooking odor and then discharging it out of the vent. • A heat/fire-resistant ducting system is required to discharge smoke/odor out of the vent. - Page 8 Electricity Connection MODENA Exhaust Hood is designed for 220 Volt electricity input, single phase with 50 Hz of frequency. This appliance uses a double- insulated power cord (2 parallel cords) and should not be connected...
-
Page 9: How To Use
HOW TO USE • Connect the power cord with an electrical outlet. • Slide or press the motor speed regulator button and light switch to turn vent hood on or off as shown in the following picture. NOTES: Adjust the motor speed of the vent hood according to the thickness of smoke/steam generated by the cooking process. -
Page 10: Maintenance
MAINTENANCE MODENA Exhaust Hood is specifically designed for long-term usage and does not require complicated maintenance. However, there are several things you can do to maintain its quality as follows: Cleaning the cabinet: To clean the surface of exhaust hood cabinet from sticky oil particles, use cloth/sponge and soap water and dry it. - Page 11 • Install the new carbon filter by putting it in position and rotating it clockwise. ATTENTION! Carbon filter cannot be washed and must be replaced with a new one upon its expiry.
-
Page 12: Troubleshooting
• Dirty carbon filter. • Replace the carbon filter with a new one • Motor fan Contact MODENA Service • Broken motor coil malfunctioning Center • The vent hood is installed too close to the stove Motor stops •... -
Page 13: Specification
SPECIFICATION Model RX 9632 RX 7632 Type Slim hood Slim hood Material of cabinet Stainless Stainless Color of cabinet Stainless Stainless Front color Black Black Amount the Motor Light 2 LED 2 LED Control Touch button Touch button Variable speed level Kind of filter Cassette Aluminum Filter Cassette Aluminum Filter +... - Page 14 06/21...
