Parts of the Board and Factory Defaults

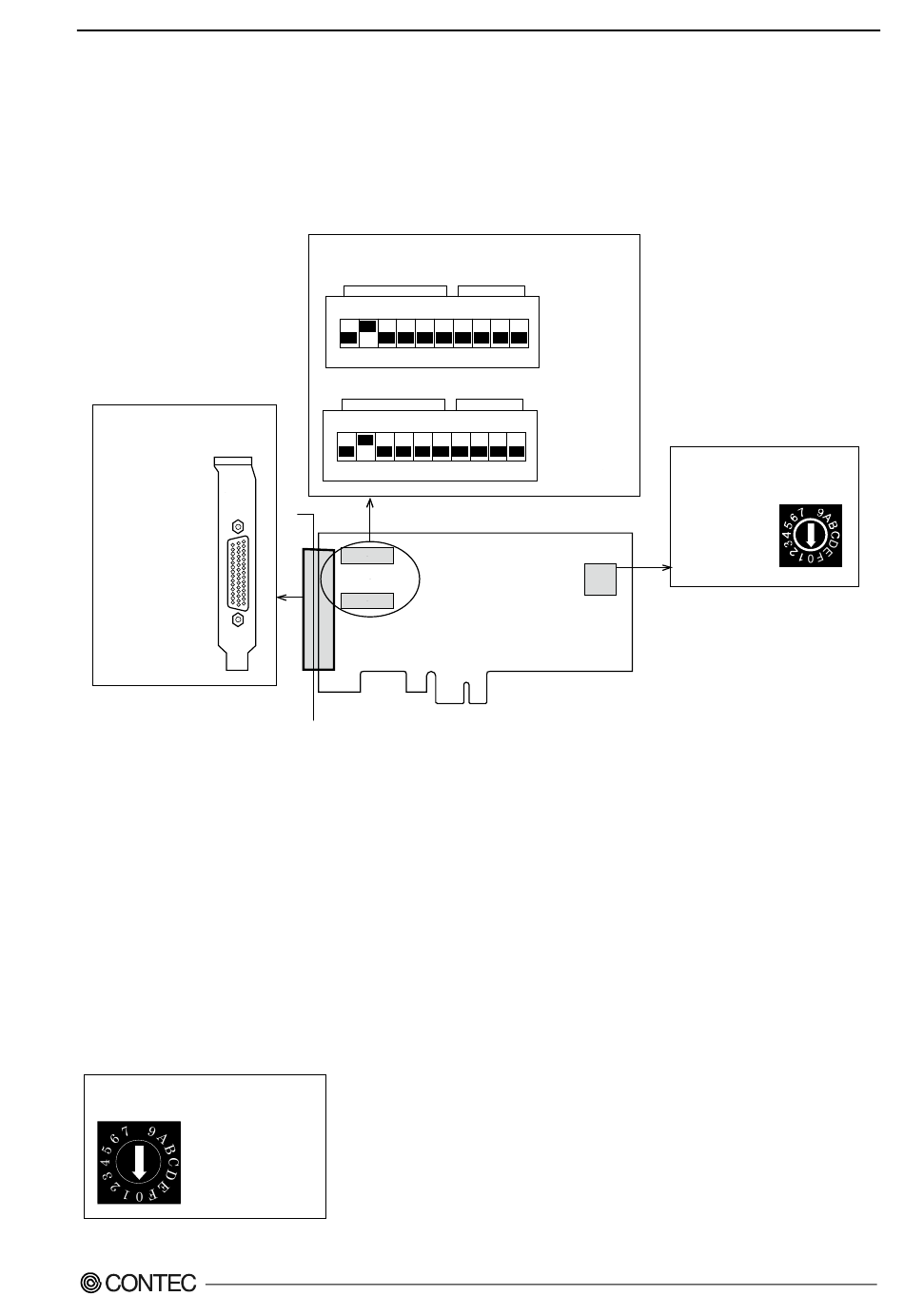

Figure 2.2. shows the names of major parts on the board.
Note that the switch setting shown below is the factory default.
COM-1PD(LPCI)H
- Interface connector
(CN1)
Figure 2.2. Component Locations
Setting the Board ID
If you install two or more boards on one personal computer, assign a different ID value to each of
the boards to distinguish them.
The board IDs can be set from 0 - Fh to identify up to sixteen boards.
If only one board is used, the original factory setting (Board ID = 0) should be used.
Setting Procedure
To set the board ID, use the rotary switch on the board. Turn the SW1 using, for example, a standard
screwdriver, to set the arrow to the board ID.
SW1
BOARD ID
8
Factory setting:
(Board ID = 0)
Figure 2.3. Board ID Settings (SW1)
COM-2PD-LPE
- Data transfer mode, terminator setting SW
(SW2, SW3)
MODE
TERM
ON
1 2 3 4 5 6 7 8 9 10
SW2
MODE
TERM
ON
1 2 3 4 5 6 7 8 9 10
SW3
COM-2PD-LPE
- Board ID setting SW
(SW1)
SW1
BOARD ID
2. Setup
SW1
BOARD ID
8
11
