2. Setup

Step 1 Setting the Hardware

This section describes how to set the board and plug it on your PC.
The board has some switches and jumper to be preset.
Check the on-board switches and jumpers before plugging the board into an expansion slot.
The board can be set up even with the factory defaults untouched. You can change board settings later.

Replacing the Bracket

This board is shipped with a Low Profile size bracket mounted. To plug the board into a standard size
slot, replace the bracket with the bundled standard size bracket. The replacing method is as follows :
Low Profile size bracket
(Attached upon shipping)

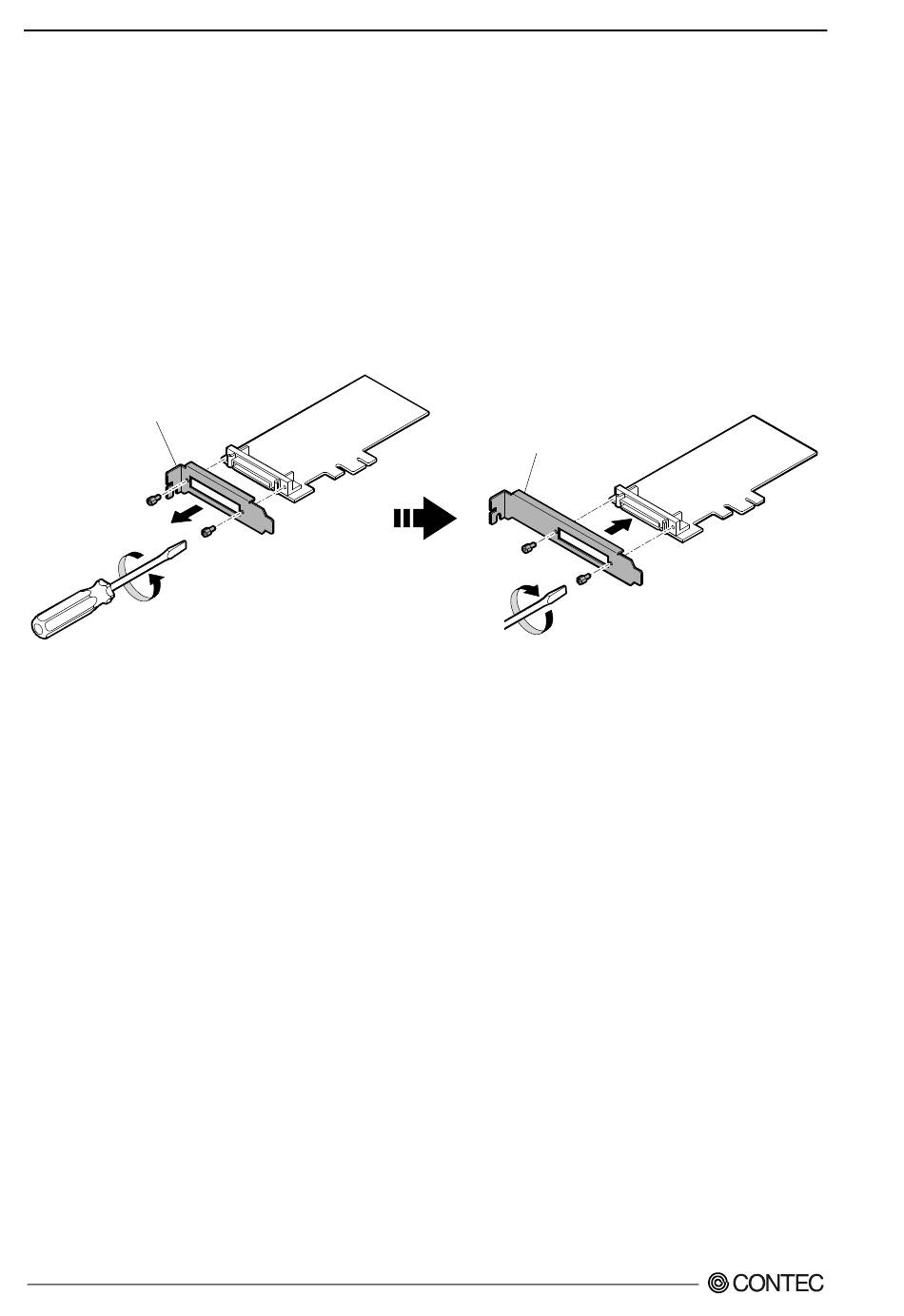

Figure 2.1. Replacing the Bracket
10
Standard size
bracket
COM-2PD-LPE
