Using the Diagnosis Program

Starting the Diagnosis Program
Run\Utility\CommChk\CommChk.exe from the supplied bundled disk.

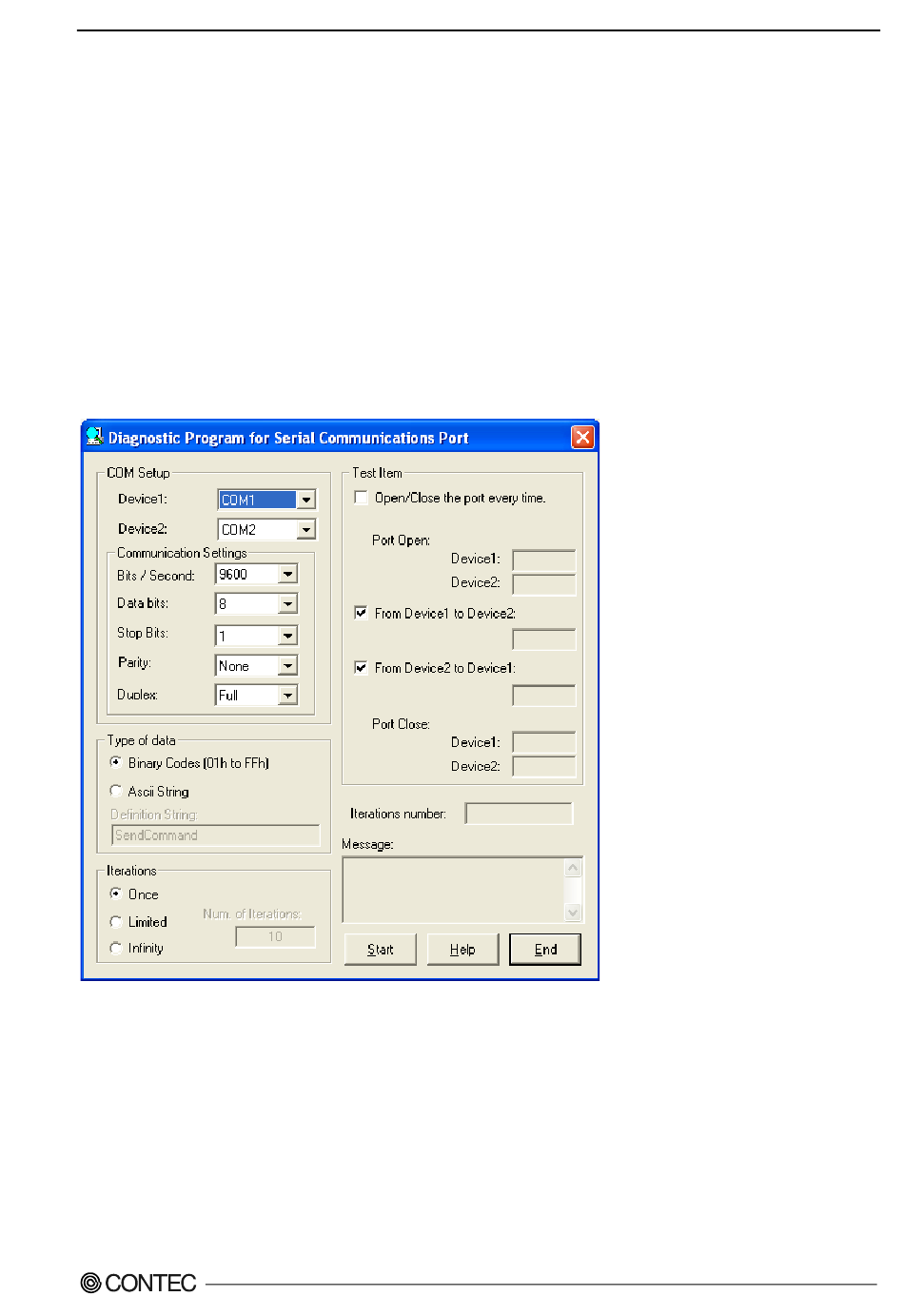

Communication Settings
COM Setup: Specify the number of the COM port you wish to test.
If connecting two COM ports via a cross cable, specify the respective COM ports in
[Device1] and [Device2].
When performing loopback communications on a single COM port, set the same port
number in both [Device 1] and [Device 2].
Communication Settings: Specify the [Bits / Second], [Data bits] and other settings you wish to use.
