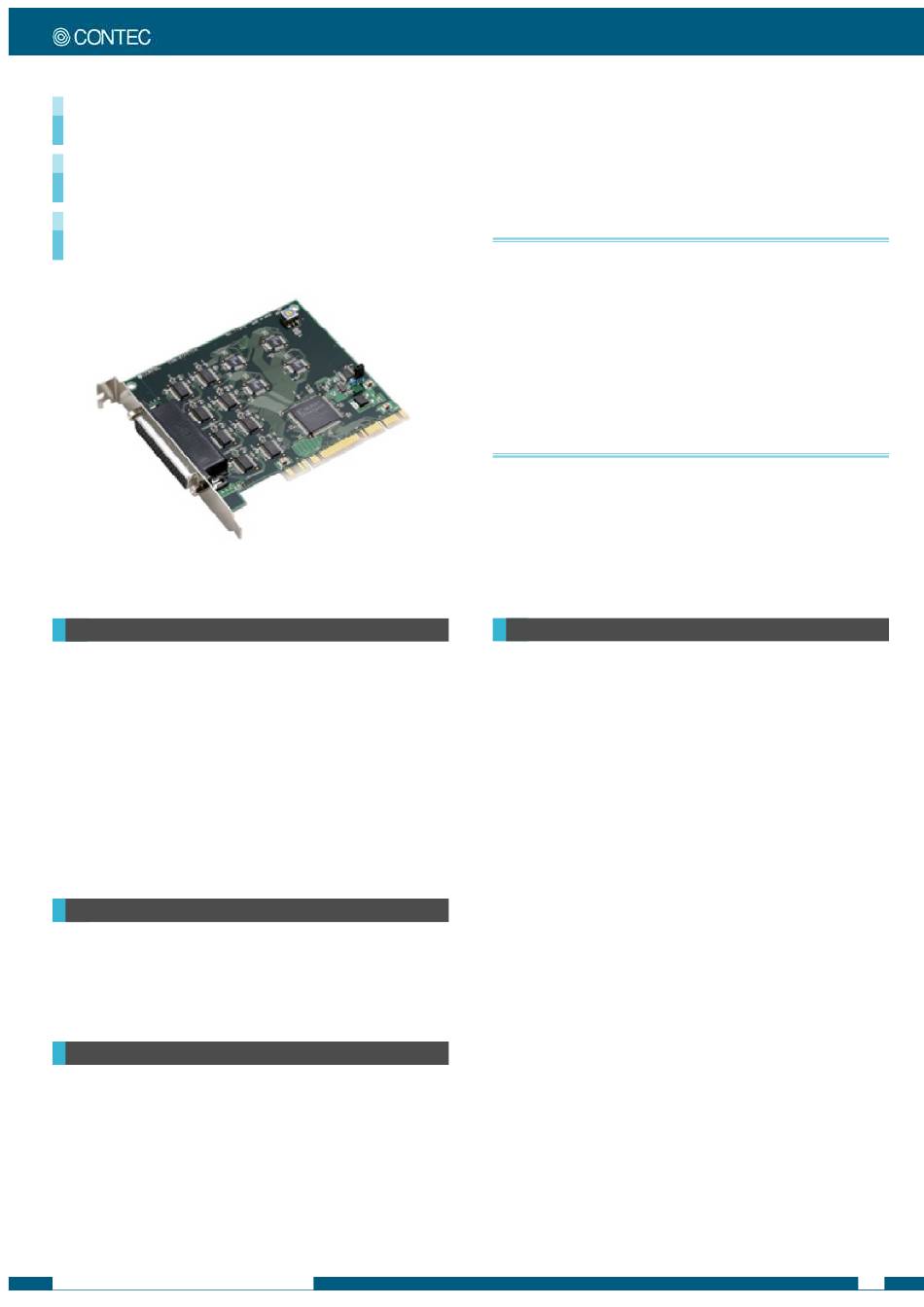

RS-232C Serial I/O Board for PCI 2ch
COM-2(PCI)H
RS-232C Serial I/O Board for PCI 4ch
COM-4(PCI)H
RS-232C Serial I/O Board for PCI 8ch
COM-8(PCI)H
Features
- Maximum communication speed = 921,600bps.
- The baud rate can be set independently for each channel, by
software.
- Each channel is equipped with separate 128-byte FIFO buffers for
transmit and receive.
- A maximum of 16 boards can be installed as configured in the range
COM1 - COM256.
- Driver software is supplied to allow the serial ports to be used as
standard Windows or Linux COM ports.
- The boards use the same easy-to-use 9-pin D-SUB connectors as
are used on a PC.
Product Configuration List
- Board
[COM-2(PCI)H, COM-4(PCI)H or COM-8(PCI)H]
- First step guide ...1
- COM Setup Disk(CD-ROM *1 ) ...1
*1: The CD-ROM contains the driver software and User's Guide.
Accessories (Option)
Connection Conversion Unit for RS-232C(78P 25P x 8)
*1 The option cable RSS-78M or RSS-78M/37M is needed.
COM-2(PCI)H,4(PCI)H,8(PCI)H
The specification, color, and design of a product may be changed without a preliminary announcement.
: CCU-78F/25M *1

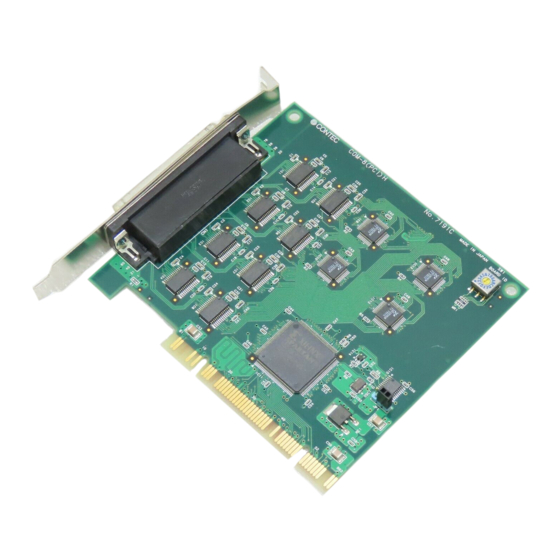

This board is a PCI bus interface board for performing RS-232C
serial communications with external devices.
The <COM-2(PCI)H> has two serial ports per board.
The <COM-4(PCI)H> has four serial ports per board.
The <COM-8(PCI)H> has eight serial ports per board.
You can use the standard COM driver software (COM Setup Disk)
supplied with the board to access the serial ports as standard
Windows or Linux COM ports.
The COM-2/4/8(PCI)H boards are backward compatible with the
CONTEC COM-2/4/8(PCI) boards. The COM-x(PCI)H can
therefore replace the COM-x(PCI) in an existing system.
Cable & Connector (Option)
RS-232C Straight Cable with D-SUB9P (1.8m)
RS-232C Cross Cable with D-SUB9P (1.8m)
RS-232C Straight Cable with D-SUB25P (1.8m) : RSS-25M/F
RS-232C Cross Cable with D-SUB25P (1.8m)
RS-232C Connection Conversion Straight Cable (25M 9F, 1.8m)
RS-232C Connection Conversion Straight Cable (25F 9M, 1.8m)
RS-232C Connection Conversion Cross Cable (25F 9F, 1.8m)
Connection Conversion Cable (37M 9M x 4, 250mm)
Connection Conversion Cable (37M 25M x 4, 250mm)
Connection Conversion Cable for RS-232C (37M 25M x 4, 450mm)
Connection Conversion Cable (78M 9M x 8, 1m)
Connection Conversion Cable (78M 25M x 8, 1m)
COM-8ch Board Optional Cable for CCU-78F/25M (2m)
COM-4ch Board Optional Cable for CCU-78F/25M (2m)
Set of five 9-pin D-SUB (male) connectors
Set of five 9-pin D-SUB (female) connectors
Set of five 25-pin D-SUB (male) connectors
Set of five 25-pin D-SUB (female) connectors
Set of five 37-pin D-SUB (male) connectors
Set of five 78-pin D-SUB (male) connectors
Ver.3.30
: RSS-9M/F
: RSC-9F
: RSC-25F
: RSS-25M/9F
: RSS-25F/9M
: RSC-25F/9F
: PCE37/9PS
: PCE37/25PS
: COM-4MCABLE(PC)1
: PCE78/9PS
: PCE78/25PS
: RSS-78M
: RSS-78M/37M
: CN5-D9M
: CN5-D9F
: CN5-D25M
: CN5-D25F
: CN5-D37M
: CN5-D78M
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Contec COM-2(PCI)H
Summary of Contents for Contec COM-2(PCI)H
- Page 1 This board is a PCI bus interface board for performing RS-232C serial communications with external devices. The <COM-2(PCI)H> has two serial ports per board. The <COM-4(PCI)H> has four serial ports per board. The <COM-8(PCI)H> has eight serial ports per board.
-
Page 2: Specification
The interrupt signals from individual channels are arranged into a single interrupt signal and connected to the PCI bus. Boards with different board numbers are different in these specifications. See Table 6.4 "Different in the specification" at the end of this document. COM-2(PCI)H,4(PCI)H,8(PCI)H... -
Page 3: Support Software
(Bundled) In addition to connecting directly to the connector on the board, you The purpose of this software is to allow the CONTEC serial can also connect external devices via a connection conversion cable or communication boards to be used under Windows or Linux in the connection conversion unit. - Page 4 RS-232C Straight Cable with D-SUB25P (1.8m) RSS-25M/F RS-232C Cross Cable with D-SUB25P (1.8m) RSC-25F RS-232C Connection Conversion Straight Cable (25M 9F, 1.8m) RSS-25M/9F RS-232C Connection Conversion Straight Cable (25F 9M, 1.8m) RSS-25F/9M RS-232C Connection Conversion Cross Cable (25F 9F, 1.8m) RSC-25F/9F COM-2(PCI)H,4(PCI)H,8(PCI)H...
- Page 5 * A power supply output is referred to. CN5-D25F (mfd. by CONTEC, Female) (Five connector set) ■ C on n e ct i on co n v er s io n c a ble & c on n e ct i on co n v er s io n u n i t...
- Page 6 CTS 8 N.C. - Applicable connectors RSS-25M/9F RTS 8 N.C. 17JE-13090-02(D8C) RxD 8 N.C. (mfd. by DDK, Female) RS-232C Connection Conversion Straight Cable (25F 9M, 1.8m) TxD 8 N.C. N.C. RSS-25F/9M RS-232C Connection Conversion Cross Cable (25F 9F, 1.8m) RSC-25F/9F COM-2(PCI)H,4(PCI)H,8(PCI)H...
- Page 7 * A power supply output is referred to. CN5-D25F (mfd. by CONTEC, Female) (Five connector set) ■ C on ne ct i on c on v er si o n ca bl e & con ne cti on con ver si on uni t ( Optio n)
-
Page 8: Types Of Cable And Example Connections
Differences to the COM-2(PCI), COM-4(PCI), and COM-8(PC) The COM-2(PCI)H, COM-4(PCI)H, and COM-8(PCI)H boards are an enhancement of the previous COM-2(PCI), COM-4(PCI), and COM- 8(PCI) board models and are upwardly compatible with the COM-xx(PCI) boards. Accordingly, the boards can generally be used in the same way as the COM-xx(PCI) boards. - Page 9 . c o n te c . c o m Differences between the COM-2(PCI)H, COM-4(PCI)H and COM-8(PCI)H The COM-2(PCI)H, COM-4(PCI)H, and COM-8(PCI)H are different in specifications, depending on the board number as listed below. COM-2(PCI)H Board No.
