Types of Cable and Example Connections

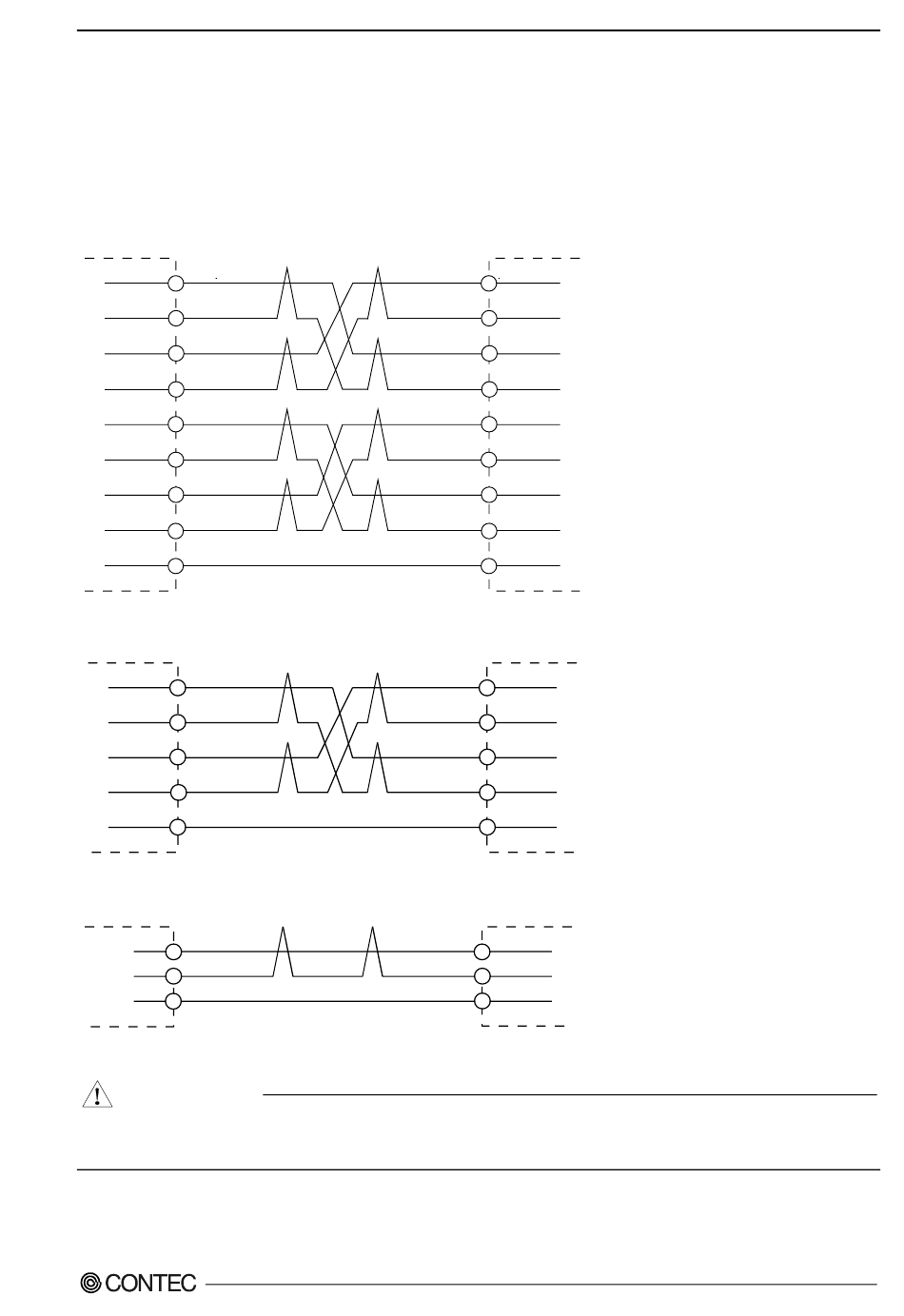

The figures below show examples of how to connect the cable for the board.
The RS-422A/485 interface works based on a differential signal whereby the signal is carried by the
potential difference between two lines (+ and -). Using twisted pair cable is recommended to improve
resistance to noise.
TxD+
TxD-
RxD+
RxD-
RTS+
RTS-
CTS+
CTS-
SG
Figure 3.4. Example Connection RTS and CTS to a External Device in Full Duplex
TxD+
TxD-
RxD+
RxD-
SG
Figure 3.5. Example Connection Oneself loop to RTS and CTS in Full Duplex
TxD+
TxD-
SG
Figure 3.6. Example Connection in Half Duplex
CAUTION
If connecting between external devices and this board with faulty wiring, it will become the cause
of failure.
COM-2PD-LPE
TxD+
TxD-
RxD+
RxD-
RTS+
RTS-
CTS+
CTS-
SG
External device
TxD+
TxD-
RxD+
RxD-
SG
External device
TxD+
TxD-
SG
External device
