Contec COM-4(PCI)H User Manual

Ver.2.01

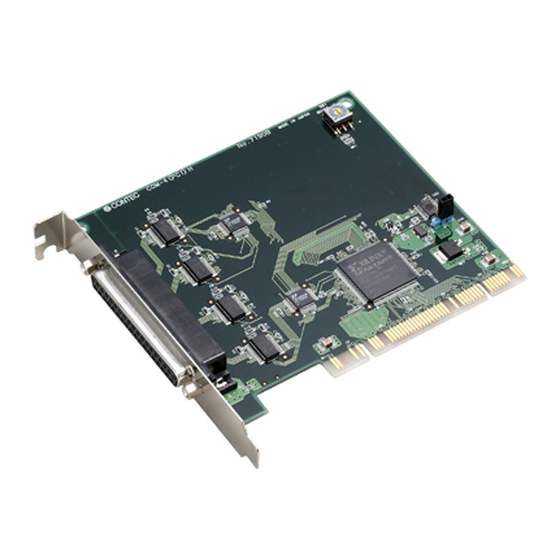

PCI-bus 4Ch RS-232C Communication Board
COM-4(PCI)H
T his board is external equipment and an int erface board of t he
PCI bus conformit y which performs serial communicat ion of
RS-232C conformity.
It has the serial port of four channels by one
sheet.
Attached st andard COM driver soft ware [COM Set up Disk] by
using it , it can access as a Windows or st andard COM port for
Linux.
Moreover, t his board can be replaced within t he system already
built for t he higher rank compatible product of our company
COM-4(PCI).
- It corresponds t o a maximum of 921,600bps high-speed communication.
- T he b aud rat e o f each channel can b e individually set up by software.
- FIFO buffer of 1 28 bytes o f reception is carried for every channel 128 by t es of transmission.
- T he b oard of a maximum of 16 sheet s can be ext ended, an d setup t o COM 1-COM 2 56 is p ossible.
- It can be used as Windows and a standard COM p ort of Linux b y at t ached driver sof tware.
Item
Number of channels 4 channels
Interface type RS-232C
Transfer method Asynchronous serial transfer
Baud rate 2 to 921,600bps *
Data length 5, 6, 7, 8 bits
1, 1.5, 2 stop bits
Parity check Even, Odd, Non-parity *
Controller chip 162850 or equivalent
(Each channel has 128-byte receive and 128-byte transmit FIFO buffers.)
Connecting distance 15m(Typ.)
Interrupt requests 1 level use *
I/O address Any 32-byte boundary
Power consumption 5VDC 500mA (Max.)
Operating
0 to 50°C, 10 to 90%RH (No condensation)
temperature
PCI bus specification 32-bit, 33MHz, 5V
121.69(L) × 106.68(H)
Dimension (mm)
Weight 130g
*1 These items can be set by software.
For the "API Function Library API-PAC(W32)" and the "Standard COM Driver Software COM
Setup Disk" on the supplied CD-ROM, the range is 15 to 921,600 bps.
*2 Data transmission at high speed may not be performed normally depending on the environment
including the type of status of connected material of cable and environment.
*3 A single interrupt signal "INTA" is output as a collection of interrupt input signals from four
channels.
Features
Specification
Specification
1 2
*
1
*
1
3
- Board [COM -4(PCI)H] - 1
- T his User's Manual - 1
- COM Setup Disk(CD-ROM ) - 1
COM-4(PCI)H
Board size
121.69(L)
[mm]
Th e standard outside dimension (L) is
t h e d ist an ce f rom t h e end of t h e b oar d
t o t h e ou t er su rf ace of t h e slot cover.
Packing List
1
