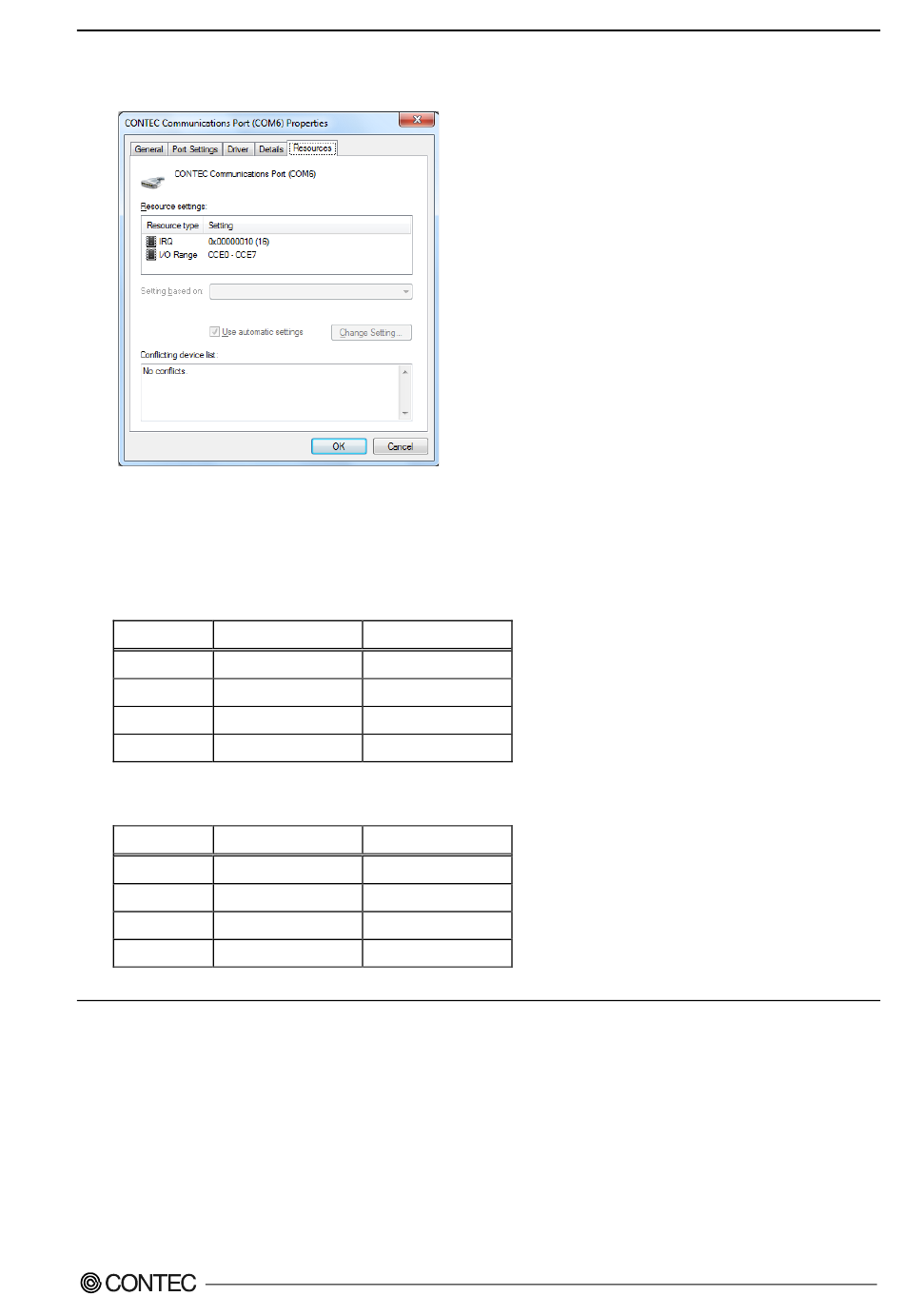

2. Double-click each COM port of the CONTEC product assigned under [Ports], click the
[Resources] tab, and then check the [I/O Range].
3. Table 2.3. shows an example in which the four channels of the serial board have been assigned in
order. Table 2.4 shows an example in which the four channels of the serial board have not been
assigned in order.
Table 2.4. Assigned in order
CH no.
CH1 EF00 - EF07
CH2 EF08 - EF0F
CH3 EF10 - EF17
CH4 EF18 - EF1F
Table 2.5. Not assigned in order
CH no.
CH1 EF00 - EF07
CH2 EF08 - EF0F
CH3 EF10 - EF17
CH4 EF18 - EF1F
COM-2PD-LPE
I/O range COM port no.
COM3
COM4
COM5
COM6
I/O range COM port no.
COM5
COM6
COM3
COM4
