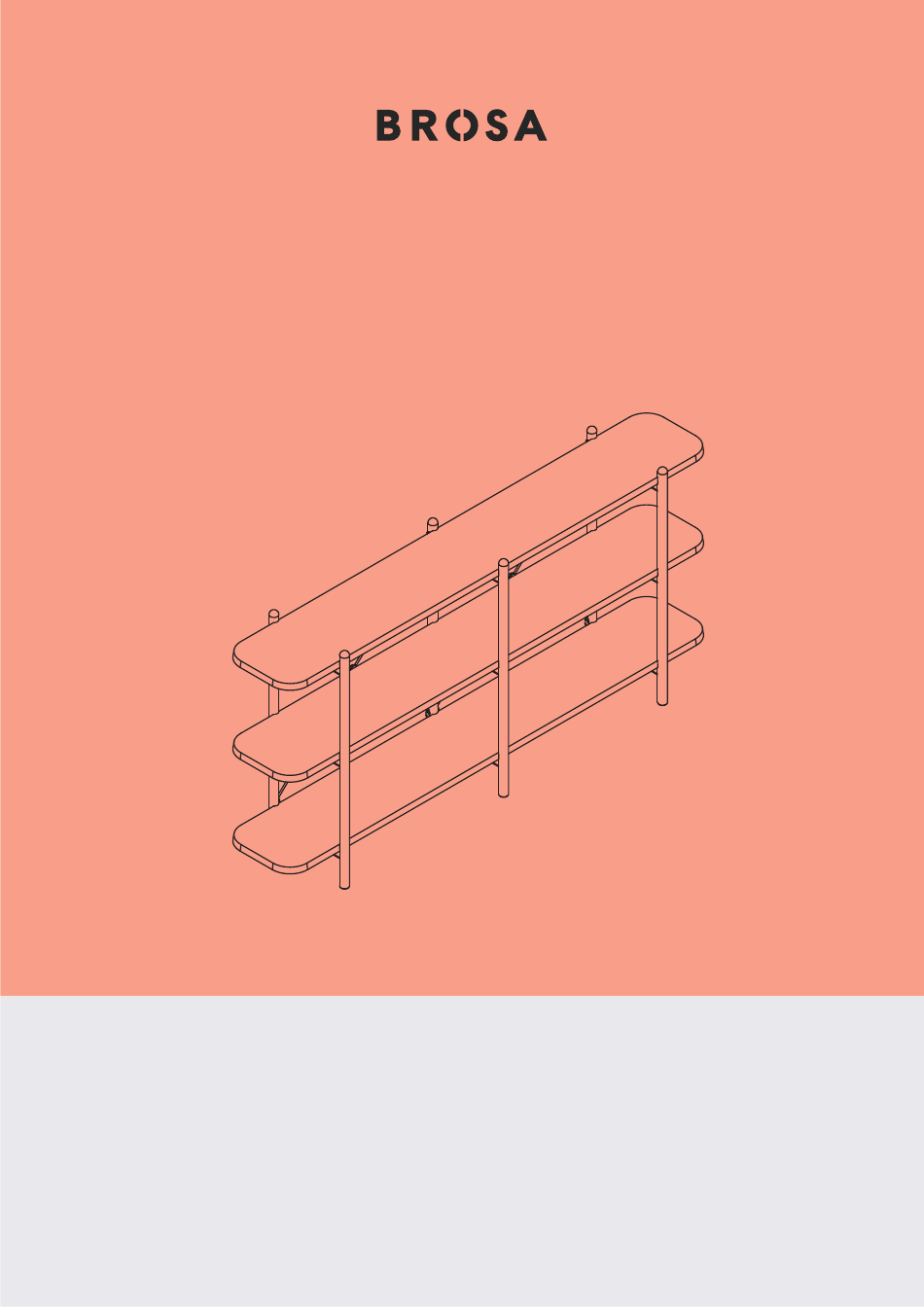

- Page 1 Dominic Wide Bookcase A S S E M B LY G U I D E...
- Page 2 F O R Y O U R S A F E T Y Lift, don’t drag. This protects Check the assembly guide your floor and product. for required components. Assembly requires 2 people. Assembling this product on It's always easier with a a soft surface protects its friend.
- Page 3 Components Before you get started, check you have all of the pieces below. If anything’s missing, we’ll sort it out right away. Simply visit: www.brosa.com.au/pages/product-return-and-parts-request ③ Left Stand x 1 ② Middle Stand x 1 ① Right Stand x 1 ④...
-
Page 4: What You Need
What You Need To prevent the components from damage during transport, an extra wooden crate has been applied. Follow Step 1 and Step 2 below to unbox the product. Step 1 Identify the face where the slats of the wooden crate are fixed by the screws. - Page 5 Step 2 Lift the carton out of the wooden crate and place it on a level surface. Unbox the components to get ready for assembly.
- Page 6 Step 3 Attach the felt pads to the bottom of the ① ② ③. stands ③ ② ①...
- Page 7 Step 4 ① ② ③. Make sure that the Line up the stands bolt holes are facing each other as shown in the diagram below. ③ ② ①...
- Page 8 Step 5 ④ The edge of each shelf is beveled. Make sure you recognise the narrow face of each shelf and place the narrow face on top. ④ This...
- Page 9 Step 6 With friends holding the stands, rest a shelf upon the rails of the stands. Make sure the columns of the stands run through the slots of the shelf.
- Page 10 Step 7 Slant another shelf and run it through the structure formed in Step 6. Flip it horizontal once the slots match the columns. Now you can rest it upon the rails.
- Page 11 Step 8 Repeat Step 7 for the other shelf.
- Page 12 Step 9 Note: It is important to install the inner brace first. Pay attention to distinguishing the inner brace from the outer brace in this step. ⑤ Inner brace has a smaller threaded hole in the ⑥ centre while the outer brace has a bigger unthreaded hole.
- Page 13 Step 10 ⑤ Align an inner brace with diagonal bolt holes on the columns. Insert the long bolts into the holes and screw them with your hand. Leave the bolts loosely attached. Repeat this for the other half of the structure. ⑤...
- Page 14 Step 11 ⑥ Align an outer brace with the other diagonal bolt holes. Insert the long bolts into the holes and screw them with your hand. Leave the bolts loosely attached. Repeat this for the other half of the structure. ⑥...
- Page 15 Step 12 Insert a short bolt into the centre hole of the outer brace and make it grab the threads of the inner brace. Repeat this for the other half of the structure.
- Page 16 Step 13 Once the braces are fixed in place, tighten all bolts with the Allen key E.
- Page 17 Step 14 Lay the formed structure on a protected surface. Insert the screws into the holes on the bottom and drive them into the bottom of the shelves with a drill or screwdriver. This might need a fair amount of strength as there are NO pre-drilled holes on the solid wood shelves to receive the screws.
- Page 18 Step 15 Flip the completed piece of furniture and place it upright in its desired location. Enjoy your new Dominic Wide Bookcase!
-
Page 19: Anti-Tip Kit Installation
Anti-Tip Kit Installation It is not mandatory but strongly recommended to install anti-tip kit for safety. Hardware Wall Fixings Wall fixings are NOT included since different wall materials require different types of fixing devices. Use fixing devices suitable for the walls in your home. - Page 20 Fit the brackets over the back columns of the stands. Fix the brackets with appropriate wall fixings. Wall fixings are not included. Contact your local hardware store for appropriate fixing devices.
- Page 21 Warning Serious or fatal crushing injuries can occur from furniture tip-over. Never allow children to climb or play on furniture.
- Page 22 With that in mind, the following tips can help prolong the life of your Brosa veneer furniture to help them look beautiful for years to come. Assembly 1. Assemble furniture using our Assembly Guides. You can find them at support.brosa.com...
- Page 23 3. Do not use any abrasive cleaner or harsh detergent as this can damage the surface of the furniture. 4. Avoid using spray polishes as they contain silicones which may spoil the furniture’s surface. 5. Make sure all surfaces are protected from heat and liquids by mats and coasters.
