v1.0
ASSEMBLY GUIDE
Siesta 3 Seater Sofa Bed

Advertisement

loading
Need help?

Need help?

Do you have a question about the Siesta 3 Seater Sofa Bed and is the answer not in the manual?

Questions and answers

Summary of Contents for BROSA Siesta 3 Seater Sofa Bed

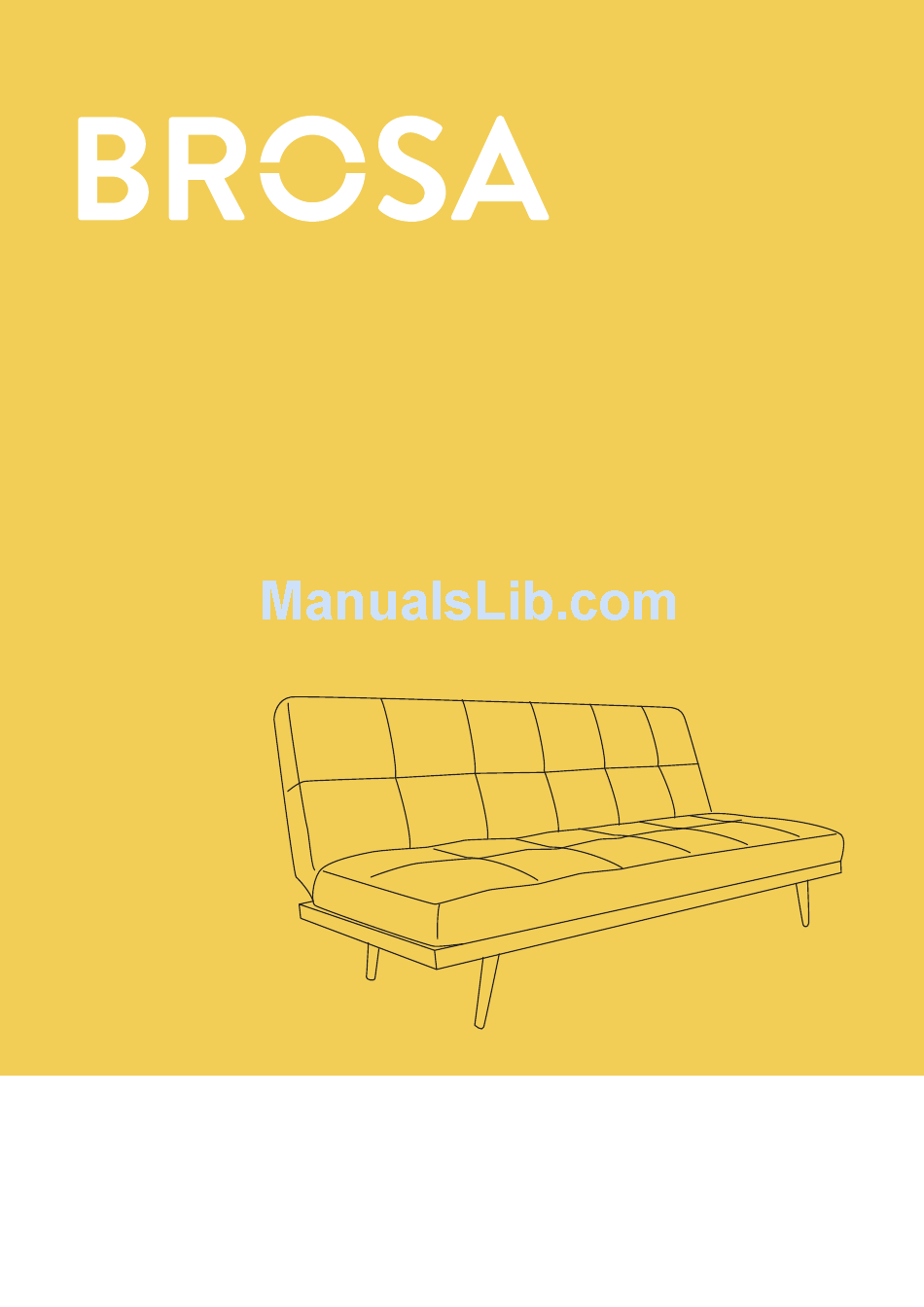

  • Page 1 ASSEMBLY GUIDE Siesta 3 Seater Sofa Bed...
  • Page 2 Components Upon unpacking your sofa bed from it’s delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new sofa bed. Hardware B x 1 (Allen key) C x 16 (Bolt) A x 4 (Leg) Sofa bed body x 1 What you need...
  • Page 3 Align a leg to the underside of the body so that Step 1 the bolt holes are overlapping. Insert the bolt into the hole and tighten with the allen key (B). Repeat for all four legs. A x 4 B x 1 C x 16 Step 2.1 Unzip the back fabric and pull the support legs...
  • Page 4 To change the back position from bed to sofa, rise the Step 3 back (step 3.1) to either of the two sitting angles then turn the supporting legs to hide inside compartments (step 3.2). step 3.1 step 3.2 To change the back position from sofa to bed, take Step 4 out the supporting legs (step...
  • Page 5 Enjoy your new sofa bed! Step 5...
