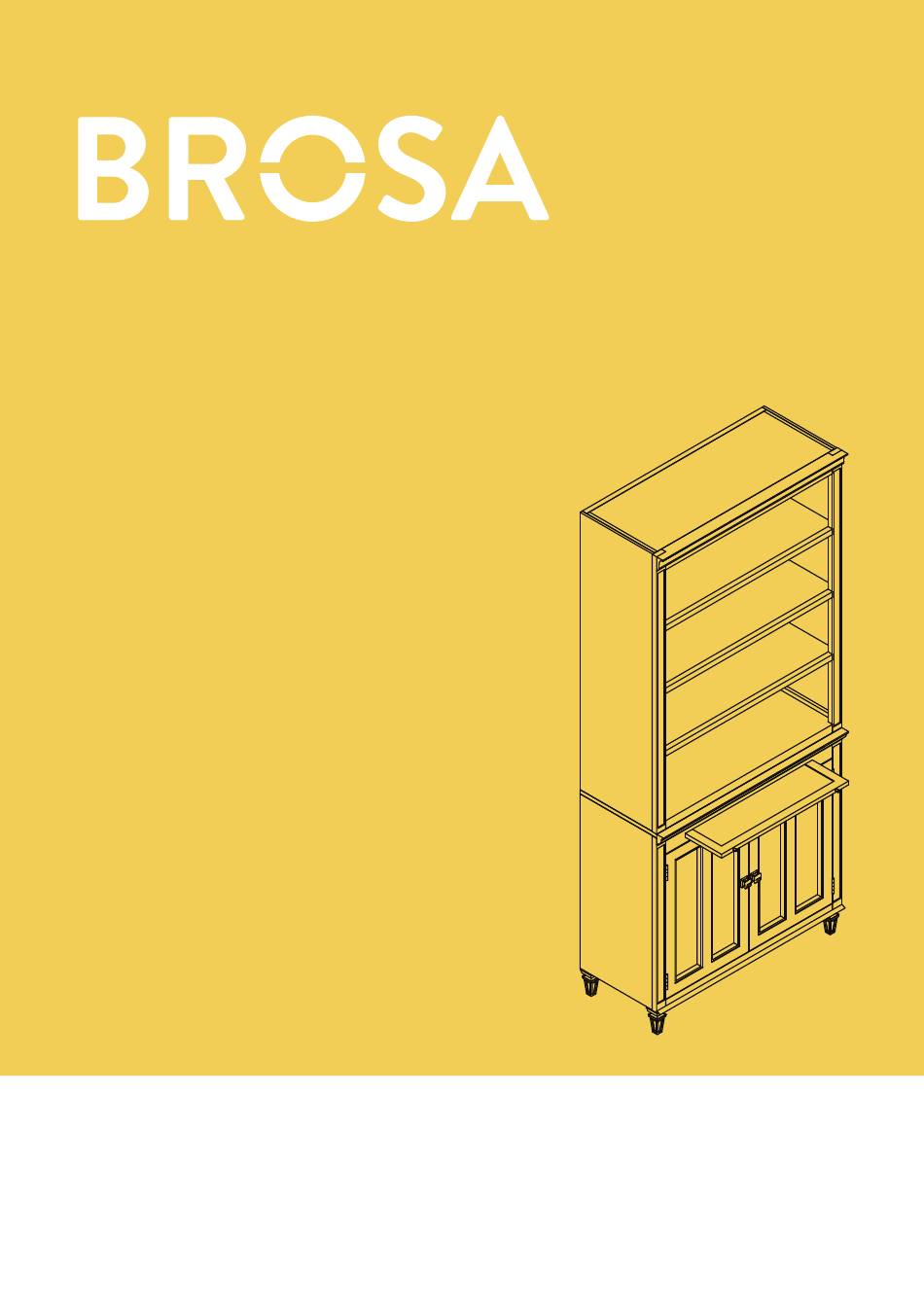

- Page 1 ASSEMBLY GUIDE Enzo Small Bookcase...
-
Page 2: What You Need
Components Before you get started, check you have all of the pieces below. If anything’s missing, please visit www.brosa.com.au/pages/product-return-and-parts-request and we’ll sort it out right away. Hardware A x 8 B x 8 C x 8 D x 28 E x 1... - Page 3 Insert the wooden dowels into the inner holes on Step 1 the sideboards (3). A x 8...
- Page 4 Align the sideboard with the base board Step 2 top board (1). Fit them together with the wooden dowels. Fit a washer to a bolt and insert the bolt into the hole on the inner side of the top and bottom boards.
- Page 5 Repeat Step 2 for the other sideboard (2). Step 3 B x 4 C x 4 E x 1...
- Page 6 Flip the structure formed in Step 3 and put it upright Step 4 on a level surface. Fit the back panel into the formed space on the back of the body and secure it in place using the screws and a Phillips screw- driver.
- Page 7 Incline the shelves to t them into the inner Step 5 space of the body and then place them upon the rails of the side boards.
- Page 8 Lift the upper case formed in Step 5 and put it on Step 6 top of the lower case (7). Rotate the metal plate on the back of the lower case so that it covers the upper case. Fit screws into the remaining holes on the plate and tighten them with a Phillips screwdriver.
- Page 9 Pull the handle to use the hidden panel. Step 7 Enjoy your new bookcase!
