Operating Manual

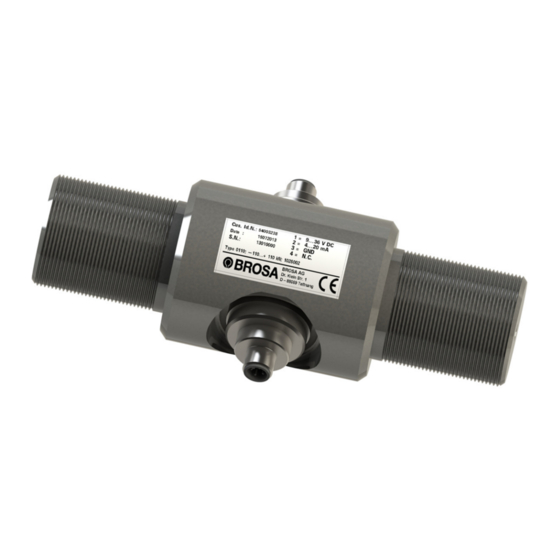

BROSA Type 0110 Rod End Load Cell
Version: 02/2021
................................................................................................................................................................
BROSA AG
Dr. Klein Straße 1
D-88069 Tettnang
Phone: +49(0)7542 93 35 0
Fax:
+49(0)7542 93 35 35
info@brosa.net
www.brosa.net
BROSA Pte Ltd
BROSA B.V.
25 Lorong Kilat #02-01
Galliershof 38
Singapore 598126
NL - 5349 BV Oss, Netherlands
Phone: +65 6795 2324
Phone: +31 412 6146 02
Fax:
+65 6795 2428
Fax:
info.sg@brosa.net
info@brosa.nl
BROSA (Nanjing) Co., Ltd.
Jinma Lu 3, Maqun Scientific Park, Qixia District
210049 Nanjing
Phone: +86 (25)8222 4639
+31 412 6146 86
Fax:
info.cn@brosa.net
© 2021 BROSA AG, Tettnang, Germany
+86 (25)8222 4639
Advertisement
Table of Contents
Related Manuals for BROSA 0110
Summary of Contents for BROSA 0110
- Page 1 Operating Manual BROSA Type 0110 Rod End Load Cell Version: 02/2021 © 2021 BROSA AG, Tettnang, Germany ................................BROSA AG BROSA Pte Ltd BROSA B.V. BROSA (Nanjing) Co., Ltd. Dr. Klein Straße 1 25 Lorong Kilat #02-01 Galliershof 38 Jinma Lu 3, Maqun Scientific Park, Qixia District...
- Page 2 BROSA Rod End Load Cell ................................................................Notes ................................................................ © 2021 BROSA AG, Tettnang, Germany English translation of the original German document 2 / 13...
-
Page 3: Table Of Contents
Structure and functionality ................5 Information on explosion protection ..............7 Label (nameplate, indication of measuring direction) ......... 7 Advice on the safe handling of BROSA rod end load cells ........8 Handling ......................8 Installation and commissioning ................. 8 3.2.1... -
Page 4: General Information
We also expressly point out that any liability is excluded if instructions in this documentation are disregarded. Current certificates can be downloaded from the BROSA AG website. Only the German version of this operating manual represents the original document. 1.1 Safety instructions – Explanation of symbols:... -
Page 5: Description Of The Brosa Rod End Load Cell
2 Description of the BROSA rod end load cell 2.1 Structure and functionality BROSA type 0110 rod end load cells transmit and measure the tensile/compressive force between two plane-parallel surfaces, the distance between which is mechanically bridged by the rod end load cell. - Page 6 More information can be found in the technical datasheets, which may be obtained free of charge from BROSA. WARNING! An insufficiently rigid surrounding construction, inadequate force...
-
Page 7: Information On Explosion Protection
................................2.2 Information on explosion protection The type 0110 rod end load cell can be optionally obtained in an intrinsically safe design for use in environments with explosion hazards. This is done using a 2-wire amplifier ExDANGmicro2W_***. The following specifications apply:... -
Page 8: Advice On The Safe Handling Of Brosa Rod End Load Cells
The analysis of an erroneous measurement can result in personal injury or material damage. WARNING! Despite their robust design, BROSA rod end load cells may not be used for any use beyond the intended purpose (see section 1.1). In the case of non-intended use, hazards to life and limb of the user or third parties and/or damage to the device in which the rod end load cell is installed or to other material goods. - Page 9 ................................................................ © 2021 BROSA AG, Tettnang, Germany English translation of the original German document 9 / 13...
-
Page 10: Additional Information For Operation In Areas Subject To Explosion Hazards
3.3 Operation and maintenance 3.3.1 Operation BROSA rod end load cells work independently, attaching tools is required for their operation. Direct manual intervention by the operator is not necessary; there are therefore no requirements for the operator to wear protective equipment during operation. However, the requirements towards the device in which the rod end load cell is installed must be observed. -
Page 11: Maintenance
3.3.2 Maintenance As sensors, BROSA rod end load cells are basically maintenance-free. As load-transmitting elements, however, they are subject to mechanical stress, requiring regular inspections of the fault-free state of each rod end load cell. The intervals between inspections depend on the intensity of use and must be determined by the end-user. -
Page 12: Disposal
BROSA sensors are usually made of stainless steel and can be disposed of accordingly. If the sensor is stored before final disposal, an appropriate storage location is to be selected which prevents harmful substances from entering the environment. - Page 13 BROSA Rod End Load Cell ..............................................................................................................................© 2021 BROSA AG, Tettnang, Germany English translation of the original German document 13 / 13...
