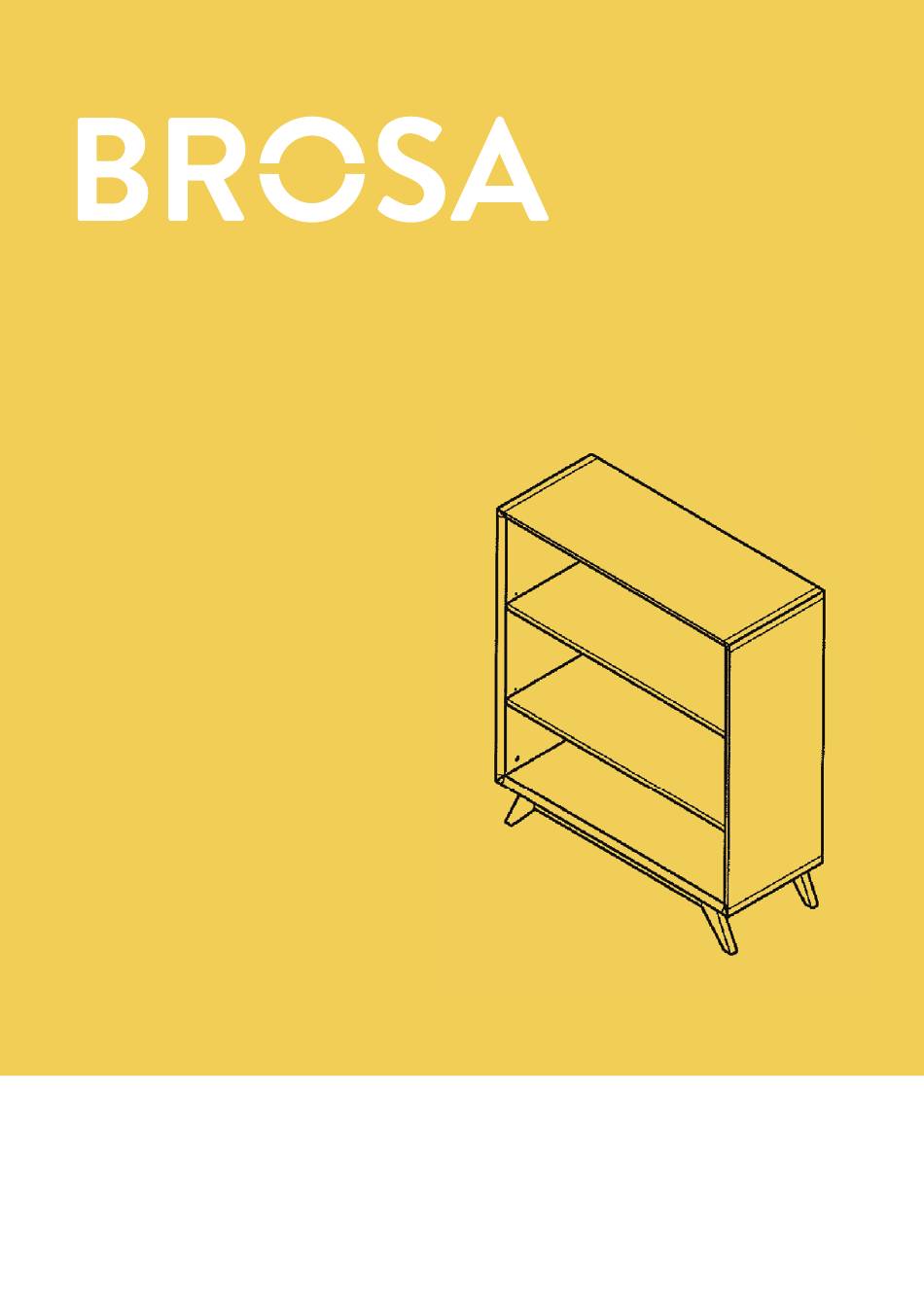

- Page 1 ASSEMBLY GUIDE Elizabeth Low Bookcase...
- Page 2 Components Upon unpacking your bookcase from its delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new bookcase. Upper Support Beam x 1 Top Panel x 1 Lower Support Beam x 1 Shelf x 2 Right Side Panel x 1...
-
Page 3: What You Need
Hardware A x 4 B x 4 C x 8 D x 8 E x 2 Spec: Ø15 x 13.5 Spec: Ø7 x 44.5 Spec: Ø7 x 49.5 Spec: Ø8 x 8.5 Spec: Ø4 x 40 F x 8 G x 8 H x 4 J x 4 K x 4... - Page 4 Step 1 Insert a cam screw into each hole on both side panels (2 & 3) as shown in the diagram below. B x 4 Step 2 Insert a steel dowel into each corner hole on the top panel and bottom panel as shown, making sure they face the correct direction as the zoomed-in diagram instructs.
- Page 5 Step 3 Insert wooden dowels into corresponding holes on both upper and lower support beams (5 & 6) as shown in the diagram. F x 8 Step 4 Insert a cross dowel into the hole at the top of each leg (8 &...
- Page 6 Step 5 Align the upper and lower support beams (5 & 6) with the left side panel and rmly press them together. Insert cam locks into corresponding holes as shown in the diagram and tighten them with a screwdriver. A x 2...
- Page 7 Step 6 Align the right side panel with the structure formed Step 5 and rmly press together. Insert cam locks into corresponding holes as shown in the diagram and tighten them with a screwdriver. A x 2...
- Page 8 Step 7 Align the top and bottom panel (1 & 4) with the structure formed in Step 6 and rmly press them together. Insert grub screws into corresponding holes on right and left side panels as shown in diagram below. D x 8...
- Page 9 Step 8 Insert screws into both holes on the upper support beam as shown in the diagram. Align a leg (8 or 9) with the bottom of the structure and make sure the threaded bolt protrudes from the metal bracket. Fit a at washer to the bolt E x 2 followed by a lock washer...
- Page 10 Step 9 Align the back panel (10) with the back of the structure. Insert screws into the holes on the back panel and x them in place using a screwdriver. P x 26 Step 10 10.1 Insert shelf supports into holes of desired level and make sure they are all on the same level.
- Page 11 Step 11 Place the completed piece of furniture in its desired location and then enjoy your new Elizabeth Low Bookcase!
-
Page 12: Anti Tip Kit Installation
Anti Tip Kit Installation Hardware aa x 2 bb x 1 cc x 2 (Mounting Bracket) (Nylon Strap) (Flat Head Screw) (Ø4 x 17) What you need Tape Measure Pencil Drill Wall Fixings Because of the variety of wall compositions, we can’t provide you with appro- priate wall xings. - Page 13 Using the short screws (cc) attach a bracket (aa) to the back of the piece of furniture’s top. aa x 1 cc x 2...
- Page 14 Determine where the piece is to be placed and using the pencil mark loca- tion on the wall for the mounting bracket. ey should be placed approxi- mately 2.5cm below the mounting bracket secured to the back of your furni- ture.
- Page 15 Lace the nylon strap (bb) down through the brackets. Slide the thin end of the strap through the receiving end on the nylon strap. Pull to tighten the piece of furniture snug against wall. bb x 1...
