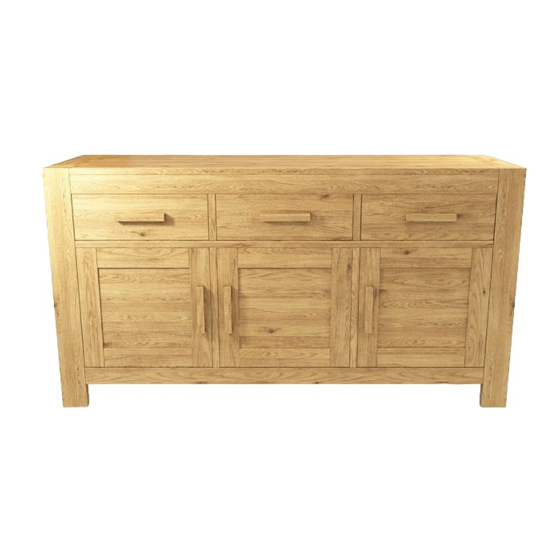

- Page 1 ASSEMBLY GUIDE Majime Wide Sideboard...
- Page 2 Components Upon unpacking your storage from it’s delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new storage. Shelf x 3 Body x 1 Hardware A x 12 B x 6 C x 6 D x 6 (Shelf Support)
- Page 3 Open the doors as shown. Step 1 Remove the handle from doors and drawers by using a screwdriver to turn round head bolts counter- clockwise as shown.
- Page 4 Attach handles to the doors and drawers using Step 2 round head bolts (D). Use a screwdriver to turn ttings clockwise to x.
- Page 5 Insert a pair of shelf supports into the holes on Step 3 the one side of the storage compartment. Tilt the shelf so it ts into the opening. Insert the shelf and rest on the supports. While holding the other side higher, insert the second pair of supports into the facing holes.
- Page 6 Step 4 hinges if needed. Vertical adjustment via slots on mounting plate by slackening and retightening the screws on the mounting plate. Lateral adjustment by screw adjustent. Front-to-Back adjustment by slackening and retightening the hinge-arm mounting screw. Step 4.2 Step 4.1 Step 4.3...
- Page 7 Turn the twist inside of the drawer to adjust it’s ver- Step 5 tical position, so that there are exqual gaps above and below the front wall. +2.5 -2.5...
- Page 8 To take the drawer out, open it, pull out the Lock Step 6 button inside of the drawer. Gently lift the front part of of the drawer.
- Page 9 To put the drawer back in, attach the connector in Step 7 the back of the drawer. Gently put down the front part of of the drawer so that the front connectors attach. Push back the Lock button inside of the drawer.
- Page 10 To use the optional handles attach them to the Step 8 fronts of the drawers by using 6 long round head blots (C). Use the shorter bolts for the doors. C x 6 D x 6...
- Page 11 Fix a mounting plate (aa) to the back of the storage Step 9 using at head screws (cc). By using appropriate fastener based upon wall com- position, x another mounting plate (aa) to the wall. Connect two plates with the nylon srap (bb). Tighten the strap so that the table is xed in the place.
- Page 12 Enjoy your new storage! Step 10...
