v1.0
ASSEMBLY GUIDE
Baker Wide Sideboard

Advertisement

loading
Need help?

Need help?

Do you have a question about the Baker Wide Sideboard and is the answer not in the manual?

Questions and answers

Summary of Contents for BROSA Baker Wide Sideboard

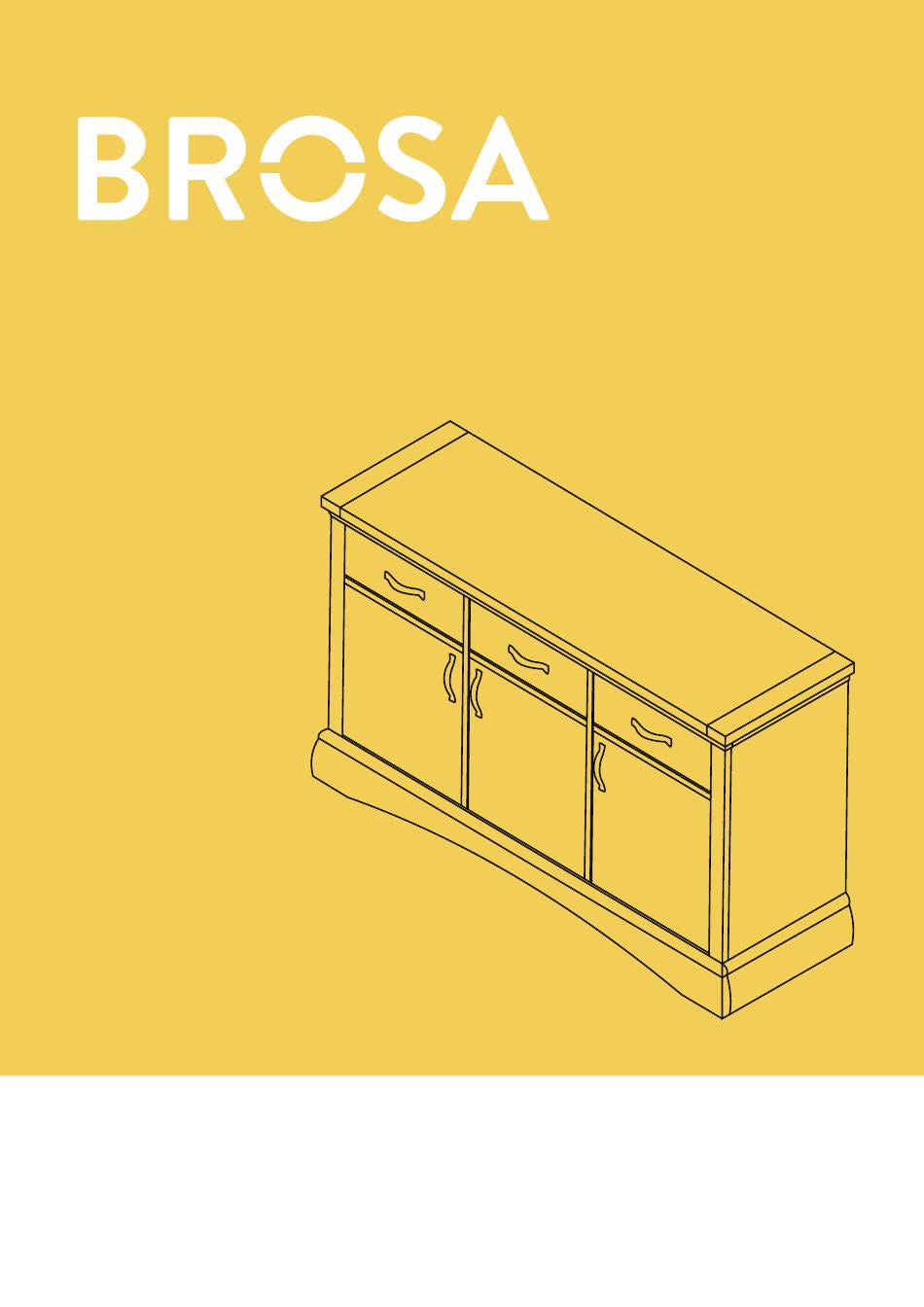

  • Page 1 ASSEMBLY GUIDE Baker Wide Sideboard...
  • Page 2: What You Need

    Components Before you get started, check you have all of the pieces below. If anything’s missing, please visit www.brosa.com.au/pages/product-return-and-parts-request and we’ll sort it out right away. Middle Shelf x 1 Side Shelf x 2 Body x 1 Hardware A x 12...
  • Page 3 Insert a pair of shelf supports into the holes Step 1 on the side of hinges inside the compartment. Fit a side shelf into the inner space. Tilt the shelf properly so that it goes in. Fit the projections on the supports into the holes beneath the shelves.
  • Page 4 Lift the un xed side of the shelf up to make room Step 2 for the supports. Insert the second pair of supports into the holes on the opposite side inside the compartment. Lower the shelf until it rests securely on all four supports.
  • Page 5 Repeat Step 1 Step 2 for the rest of the shelves. Step 3 Make sure begin with the sides of hinges. A x 8...
  • Page 6 Enjoy your new sideboard! Step 4...
  • Page 7: Door Adjustment

    Door Adjustment Identify the hinge types on your door(s) and then choose the right plan to adjust the hinge(s). 1. 90° Hinge Adjustment...
  • Page 8 2. 180° Hinge Adjustment...
  • Page 9 Drawer Adjustment 1. Door Adjustment Drawer door could be adjusted vertically by ±2.5mm. Turn the knob under- neath the drawer to adjust the vertical position so that there are equal gaps above and below the front panel. +2.5 -2.5...
  • Page 10 2. Drawer Uninstallation To take the drawer out, open it, pull the lock button underneath the drawer base panel [1]. Gently lift the front part of the drawer so that the brackets at the front of the runners separate from the holes on the side panels of the drawer [2].
  • Page 11 3. Drawer Installation To put the drawer back in, place the drawer upon the runners and t the brackets at the back of the runners into the holes of the drawer [1]. Gently put down the front part of the drawer so that the brackets at the front of the run- ners t into the holes on the side panels of the drawer [2].
  • Page 12 Standard Tip Kit Installation Hardware aa x 2 bb x 1 cc x 2 (Mounting Bracket) (Nylon Strap) (Flat Head Screw) (Ø4 x 17) What you need Tape Measure Pencil Drill Wall Fixings Because of the variety of wall compositions, we can’t provide you with appro- priate wall xings.
  • Page 13 Using the short screws (cc) attach a bracket (aa) to the back of the piece of furniture’s top. aa x 1 cc x 2...
  • Page 14 Determine where the piece is to be placed and using the pencil mark loca- tion on the wall for the mounting bracket. ey should be placed approxi- mately 2.5cm below the mounting bracket secured to the back of your furni- ture.
  • Page 15 Lace the nylon strap (bb) down through the brackets. Slide the thin end of the strap through the receiving end on the nylon strap. Pull to tighten the piece of furniture snug against wall. bb x 1...
