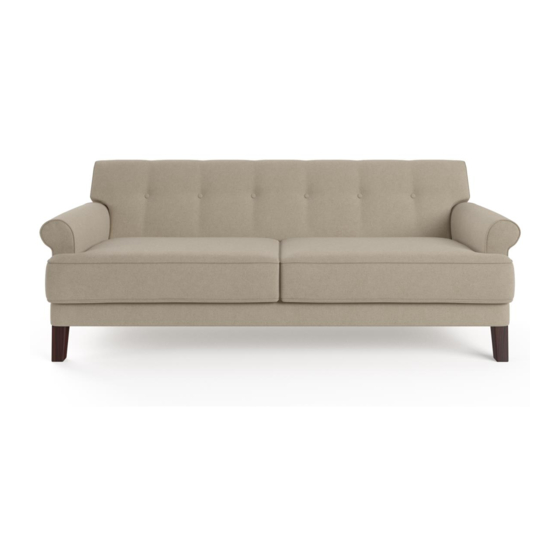

- Page 1 ASSEMBLY GUIDE Sondra Sofa Bed...
- Page 2 Components Upon unpacking your sofa bed from it’s delivery box, you should have one single component (the body of the sofa bed). Additional components are packed inside the body, you will learn how to access and utilise these components in the next steps. Unpacking Follow the zip to the component compartment.
- Page 3 Hardware D x 8 E x 8 F x 1 G x 4 H x 1 You will need...
- Page 4 Step 1 Insert and tighten the threaded rods into the holes on armrests (2), (3). Turn the sofa bed body so that the underside is facing you. Fit armrests into corresponding holes on sides of the sofa bed body. C x 8 Fit a washer and hex nut onto a rod...
- Page 5 Step 2 Fit a bolt into a front leg (A). With the sofa bed laid on its side, screw the bolt into the hole towards the front of the sofa bed using allen key (H). Repeat for the other front leg. A x 2 G x 2 H x 1...
- Page 6 Step 4 Unzip the back fabric and pull the support legs out. Slightly push the back forward and then put it down gently then you will get a bed position. Push the back upwards until it is steady and fold the support legs back into the back fabric then you will get a sofa position again.
