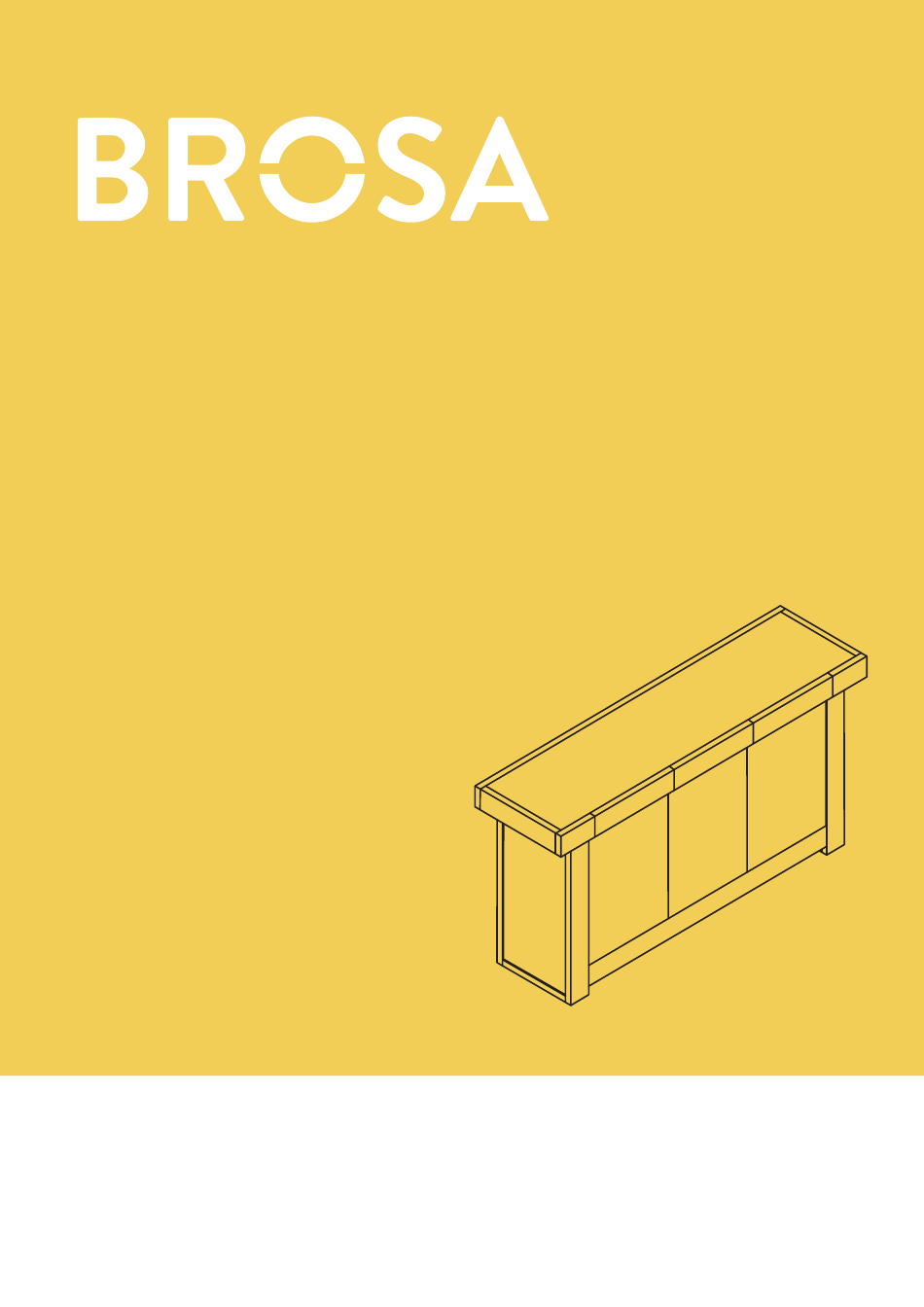

- Page 1 ASSEMBLY GUIDE Haruki Wide Sideboard...
- Page 2 Components Upon unpacking your sideboard from it’s delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new sideboard. Adjustable shelf x 3 Sideboard body x 1 Hardware What you need A x 12 B x 2 Spec:...
- Page 3 Step 1 e sideboard is already assembled. is step shows you how to insert the adjustable shelving inside the unit. Insert a wood shelf supporter into each desired hole inside the unit, making sure that they are level. Tilt the adjustable shelving to a suitable angle A x 12 and slide them into the unit, making sure rst that the...
- Page 4 Step 2 e following steps are to instruct how to adjust the hinges if needed. Lateral adjustment by screw adjustment. Front-to-Back by slackening and retightening the hinge-arm mounting screw. Vertical adjustment via slots on mounting plate by slackening and retightening the screws on the mounting plate.
- Page 5 Step 3 e following steps are to intruct how to remove and insert the drawers. To remove the drawers, pull them out one by one and unlock by lifting up both locking pads located on either side of the drawers and then remove it. To insert the drawers, align it to the unit one by one and push back inside and once the drawer is in place the locking pads on both sides will automatically lock.
- Page 6 Step 4 e following steps are to intruct how to install the anti-tip kit (optional) that came with the unit. To prevent injury and property damage from unexpected tipping of furniture we highly recommend installation of the anti-tip kit. Attaching furniture to the wall with anti-tip kits: B x 2 Determine where the piece is to be placed and mark the location on the wall for the mounting bracket...
- Page 7 Step 4 e diagram depicting Step...
