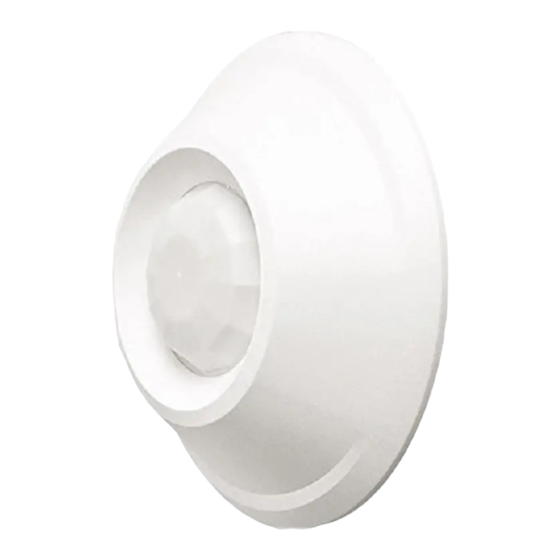

Satel AQUA Series Quick Start Manual

The microprocessor-based,
digital AQUA
feature high
interference resistance. A dual pyro
electric element is used in the AQUA
RING detector.
TERMINALS:
NC - alarm relay (NC)
TMP - tamper contact (NC)
COM - ground (0V)
12V - supply input (9-16V DC)
Three pairs of pins are used to set the detector working parameters (see Table)
The LED lights red when the detector is actuated, which enables the installer to
check the detector for correct functioning and to approximately determine the
protected area.
For 30 seconds after the power is turned on, the detector remains in a starting
state, which is signalized by rapid LED blinking. Only then the detector enters its
operational readiness state.
The detector monitors the supply voltage. If the voltage drops below 9V (±5%) for
more than 2 seconds, the detector will signalize a violation state until a voltage of
minimum 9V (±5%) is restored.

INSTALLATION

The detector is designed for ceiling mount. Prior to installation, remove the
electronics board and make adequate openings for screws and cable in the
housing.
Be careful so as not to soil or damage the pyro element in the process of
installation.
DIGITAL PASSIVE INFRARED DETECTOR
®
fully
series detectors
sensitivity and
Low sensitivity
Medium sensitivity
High sensitivity
LED indicator ON
LED indicator OFF
- pins open
AQUA RING
CEILING MOUNT
NC NC TMP TMP COM 12V
relay
positioning scale

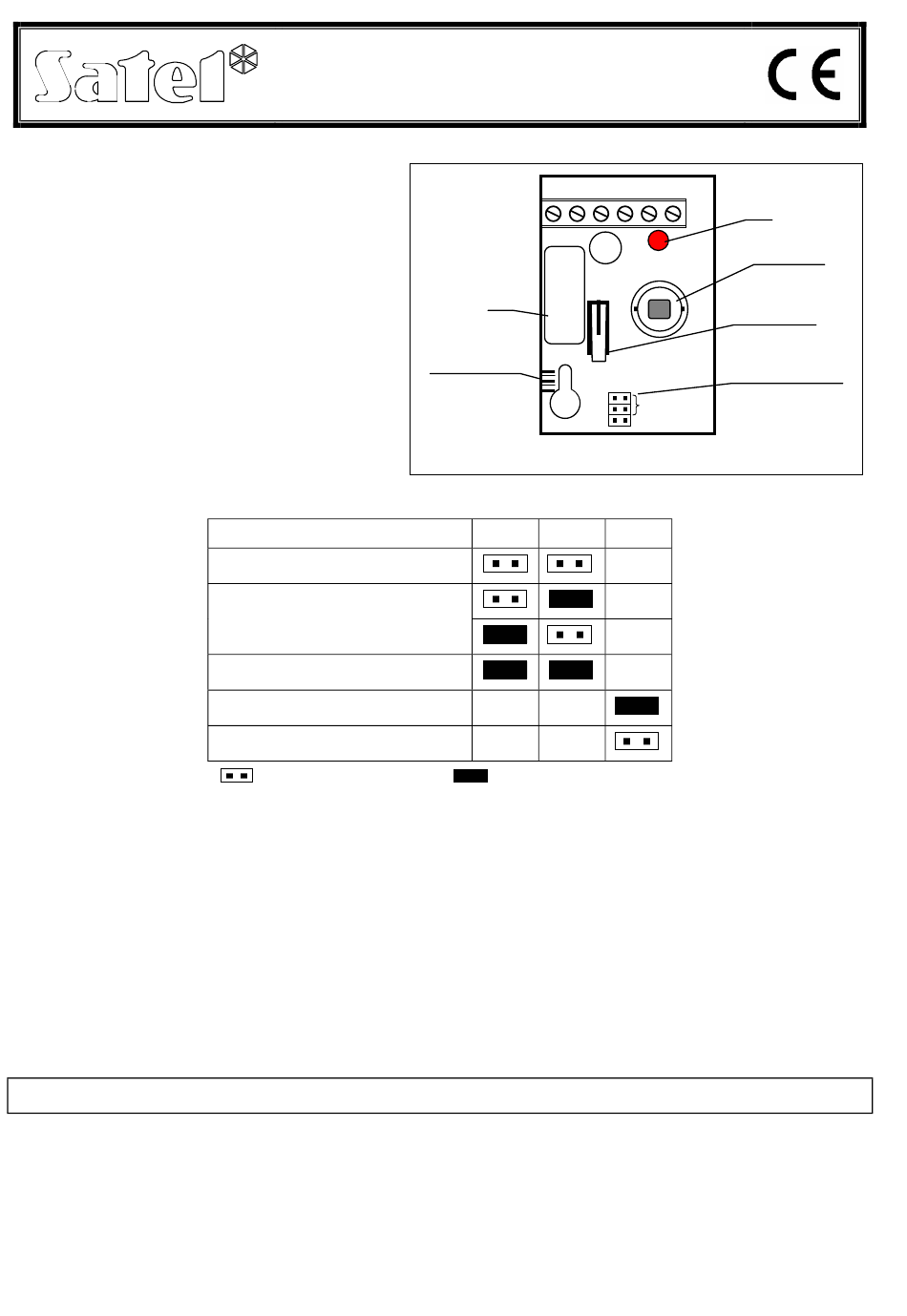

Figure 1. View of detector electronics board
JP1 JP2
- pins shorted
aquaring_e 06/04
LED
pyro element
tamper contact
operating parameter
setting pins
JP1
PIR SENS.
JP2
LED ON/OFF
JP3
JP3
