- Page 1 I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Induction Cooktop IN8200E INL8200E INB8200E INLB8200E IN8400E INL8400E INB8400E INLB8400E Date Purchased Serial Number Dealer...
- Page 2 MANUFACTURED BY Moffat Limited Rolleston 7675 New Zealand INTERNATIONAL CONTACTS AUSTRALIA Moffat Pty Limited E.Mail: vsales@moffat.com.au Main Office: (tel): +61 (03) 9518 3888 (fax): +61 (03 9518 3838 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315 (fax): 1800 350 281 CANADA...
-
Page 3: Table Of Contents
Contents Waldorf Electric Cooktops IN(L)(B)8200E Induction Cooktop. IN(L)(B)8400E Induction Cooktop. Introduction ....................2 Specification ....................4 Model Numbers Covered in this Specification General Technical Data Electrical Supply Requirements Electrical Connection Dimensions ....................6 Installation ....................7 Installation Requirements Unpacking Location... -
Page 4: Introduction
Introduction Introduction We are confident that you will be delighted with your WALDORF INDUCTION COOKTOP, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new WALDORF Appliance, there are two important things you can do. - Page 5 Introduction Safety Information: For your safety, please pay attention to the following symbols marked on the appliance. ISK OF ELECTRIC SHOCK NO USER SERVICEABLE PARTS INSIDE IONISING ELECTROMAGNETIC RADIATION UALIFIED SERVICE PERSON ACCESS ONLY UALIFIED SERVICE PERSON ACCESS ONLY ISCONNECT FROM POWER BEFORE SERVICING ISCONNECT FROM POWER BEFORE SERVICING Please Note the Following Points:- ...
-
Page 6: Specification

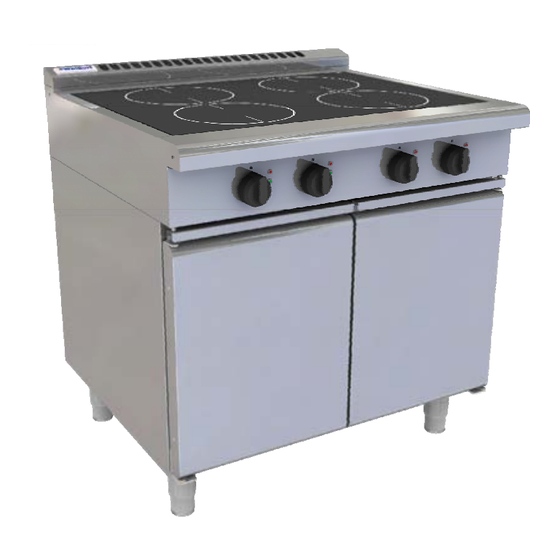

Specifications Model Numbers Covered in this Specification IN[1]8200E Induction Cooktop (450 wide) - 2 Induction Heat Zones. IN[1]8400E Induction Cooktop (900 wide) - 4 Induction Heat Zones. NOTE: [1]: - Model Options; - Standard Models. - Low Back Models. - Bold Front. - Low Back and Bold Front. -
Page 7: Electrical Supply Requirements
Specifications Electrical Supply Requirements Power Supply Amps Total Power Model Input Voltage Type Frequency IN8200E 400-415 Vac 3P+E 50 / 60 Hz 10 kW IN8400E 400-415 Vac 3P+E 50 / 60 Hz 20 kW Electrical Connection WARNING: HIS APPLIANCE MUST BE EARTHED F THE SUPPLY CORD IS DAMAGED IT MUST BE REPLACED BY A SUITABLY QUALIFIED PERSON IN ORDER TO AVOID A HAZARD... -
Page 8: Dimensions
Dimensions Dimensions IN(L)8200E IN(L)8400E... -
Page 9: Installation
Installation shall comply with local electrical and health and safety requirements. Waldorf Induction Cooktops are designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. This appliance must be installed in accordance with National installation codes and in addition, in accordance with relevant National / Local codes covering gas and fire safety. -
Page 10: Assembly
Installation Assembly This model is delivered completely assembled. Ensure that the adjustable feet are securely attached. AUTIO N This appliance is for professional use and is only to be used by qualified persons. Only qualified service persons are to carry out installation and servicing of this appliance. -
Page 11: Commissioning
Installation Commissioning The following commissioning checks must be carried out before the Induction Cooktop is handed over for use, to ensure that the unit operates correctly and the operator(s) understand the correct operating procedure. Before leaving the new installation, check the following functions in accordance with the operating instructions specified in the ‘Operation’... -
Page 12: Operation
/ operator. Waldorf appliances have been designed to provide simplicity of operation. Improper operation is therefore almost impossible, however bad operation practices can reduce the life of the appliance and produce a poor quality product. To use this appliance correctly please read the following sections carefully. -
Page 13: Operating The Cooktops
Operation Operating the Cooktop WARNING: NDUCTION OURCE ARE MUST BE TAKEN TO ENSURE THAT THE SPLASHBACK AND SURROUNDING AREAS ARE KEPT FREE OF METALLIC OBJECTS Before Operating this Appliance Please Note the Following Points:- Metallic objects such as kitchen utensils, cutlery etc. shall not be placed on the Cooktop surface within the cooking zones as they could become hot. -
Page 14: Cleaning And Maintenance
Cleaning and Maintenance AUTIO N Always turn off the electrical power supply at the mains supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. General Clean the Induction Cooktop regularly. A clean appliance looks better, will last longer and will perform better. -
Page 15: Weekly Cleaning
Cleaning and Maintenance Weekly Cleaning NOTE: If the Induction Cooktop usage is very high, we recommend that the weekly cleaning proce- dure is carried out on a more frequent basis. Ensure that protective gloves are worn during the cleaning process. ... -
Page 16: Fault Finding
Fault Finding Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. - Page 17 Fault Finding Error Code Pattern There are the following error types:- Generator Errors (E1). Generator Errors - are faults detected by the generator and on analogue controls, the faults can be detected according to the duration and frequency of the green light blinking. The green lamp lights, one long flash and then short regular flashes.
-
Page 18: Wiring Schematics
Wiring Schematic Wiring Schematic - IN(L)8200E Induction Cooktop. out2 out2 out1 out1... - Page 19 Wiring Schematic Wiring Schematic - IN(L)8400E Induction Cooktop. out2 out2 out1 out1...
-
Page 20: Replacement Parts List
Induction Generator Vario Quad - 4 Tray. 234482 Induction Coil Tray 2 Zone. 234693 Induction Control Rotary Switch Assembly (Includes LED’s). 235309 Potentiometer with Switch. 227398 Knob Waldorf 6 mm, HI-4-3-2-1-LO. 020774 Microswitch. 227850 Leg 150 mm (Flush Stud). 229674 Rear Roller Assy. 235137 Induction Air Filter.
