48'' Belt Drive Cone Fan

Cone Assembly

Important!
Important!
Note:
3
2
1
MV1600B
The Cone must be assembled and installed in the field.
The Fan must be installed in the wall before installing the Cone to the
Fan.
Lay the Cone Panels, with the flanges up, on a flat surface, as shown in Figure 7.
Do not tighten the hardware.
Loosely, fasten the Side Panels together with (3) 5/16-18 x 5/8'' carriage bolts,
(3) 3/8'' lock washers, and (3) 5/16''-18 hex nuts per joint. Only install hardware at
the locations shown in Figure 7.
Set the Cone Side Panels up and align the ends to create the cone shaped housing.
Loosely, secure the ends similar to the other joints.
The flanges should be on the outside of the Cone. Secure each Cone Hanger
Bracket to the Fan Shroud, using 5/16''-18 carriage bolts,
3/8'' lock washers, and 5/16''-18 hex nuts. See Figure 8.
4
5

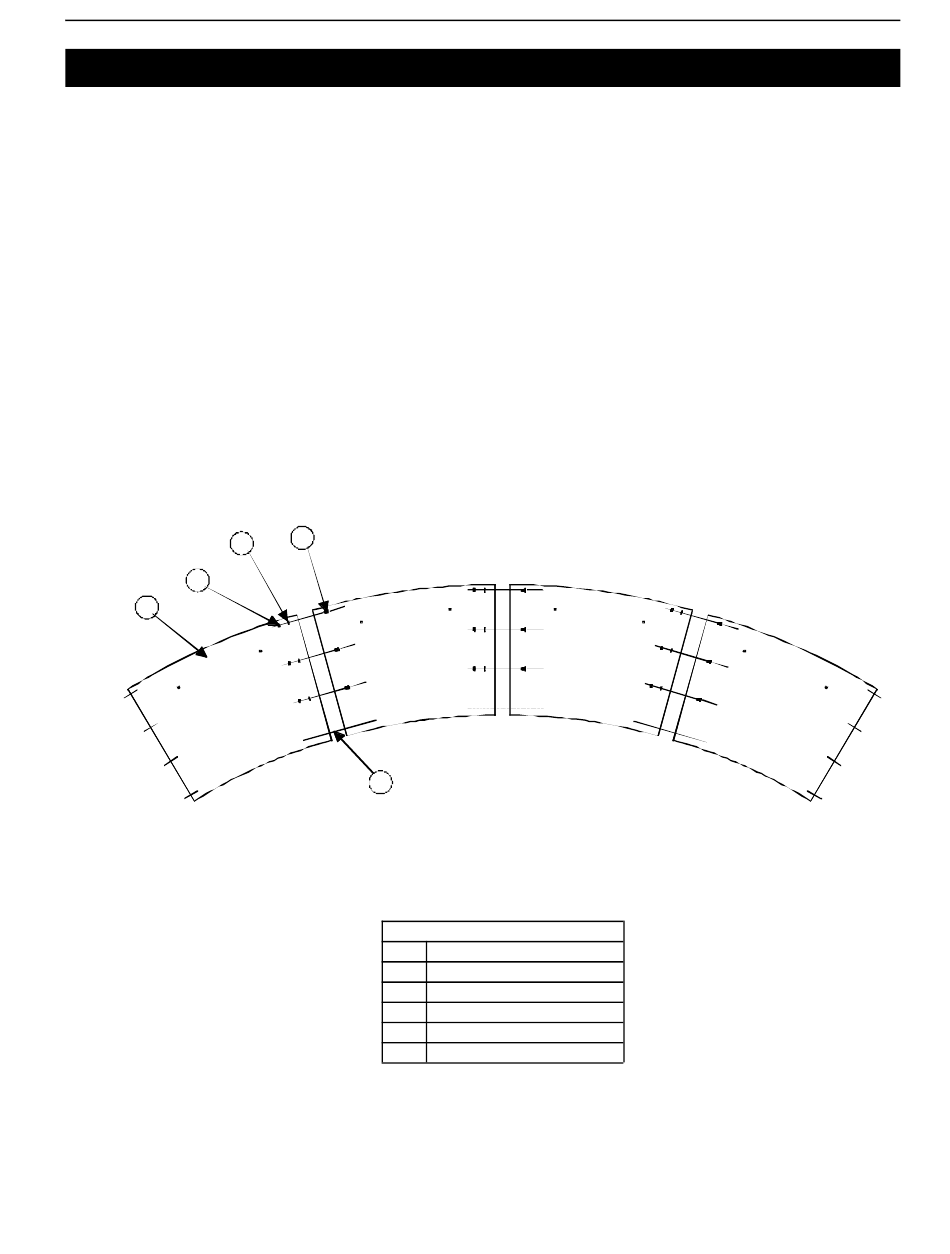

Figure 7. Cone Assembly (Top View)
Cone Assembly
Item Description
1 Cone Panel
2 5/16-18'' Hex Nut
3 3/8'' Lock Washer
4 5/16-18 x 5/8'' Carriage Bolt
5 Do not install Hardware here.
Cone Assembly
