6.0.4 Curve display page

Description

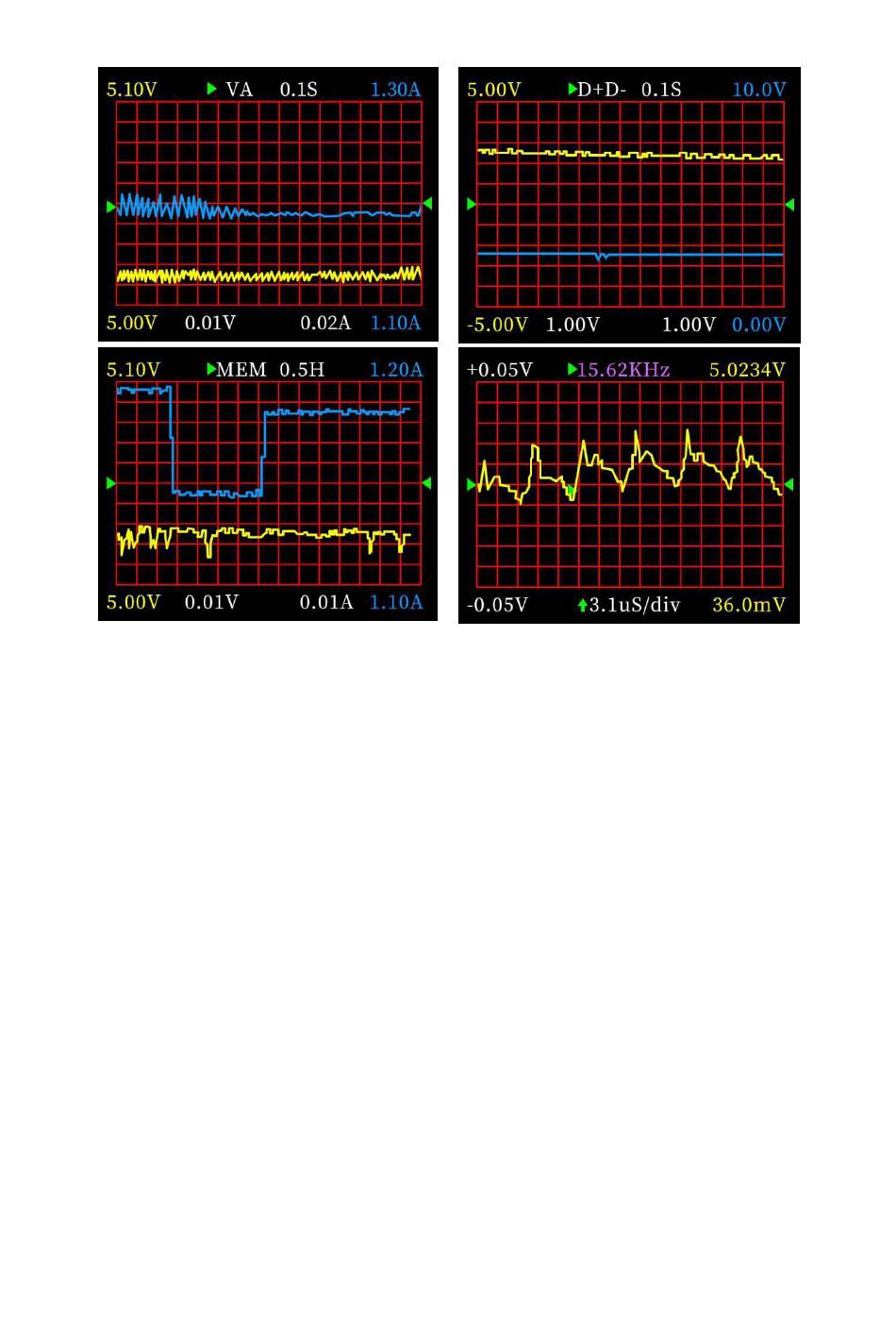

From left to right:
Mode 1: Low-speed voltage and current curve.
Mode 2: Low-speed D+D-
curve. Mode 3: Record
offline curve.
Mode 4: High-speed voltage ripple (AC coupling).
Instructions
(1) Long press the left button: time base minus.
(2) Click the middle button: start/pause drawing the curve. (Except in mode 3, it will prompt
whether to clear the curve).
(3) Long press the middle button: switch modes.
(4) Long press the right button: time base plus.
