Parameter Setting; Basic Paramater; Control Parameter; Parameter Range - MULTISPAN UTC-214 Manual

Basic Configuration
Password
pass
Message
Press key
SET
73
Press key
SET
INPT
Input
Press key
SET
J
/
PT PT.1
/
Press key
SET
O.typ
(Output Type)
Press key
SET
BOTH
RELY
/
Press key
SET
OUT
(Output)
Press key
SET
Heat
COOL
/
Press key
SET
CTRL (Control Action)
Press key
SET
(On Off/PID/TP)
OnOf
/ pID
Press key
SET
Hys
Hystertesis
Press key
SET
3
Press key
SET
SLL
Press key
SET
0
Press key
SET
SHL
Press key
SET
600
Press key
SET
OFST
Press key
SET
0
Press key to save & exit
ENT

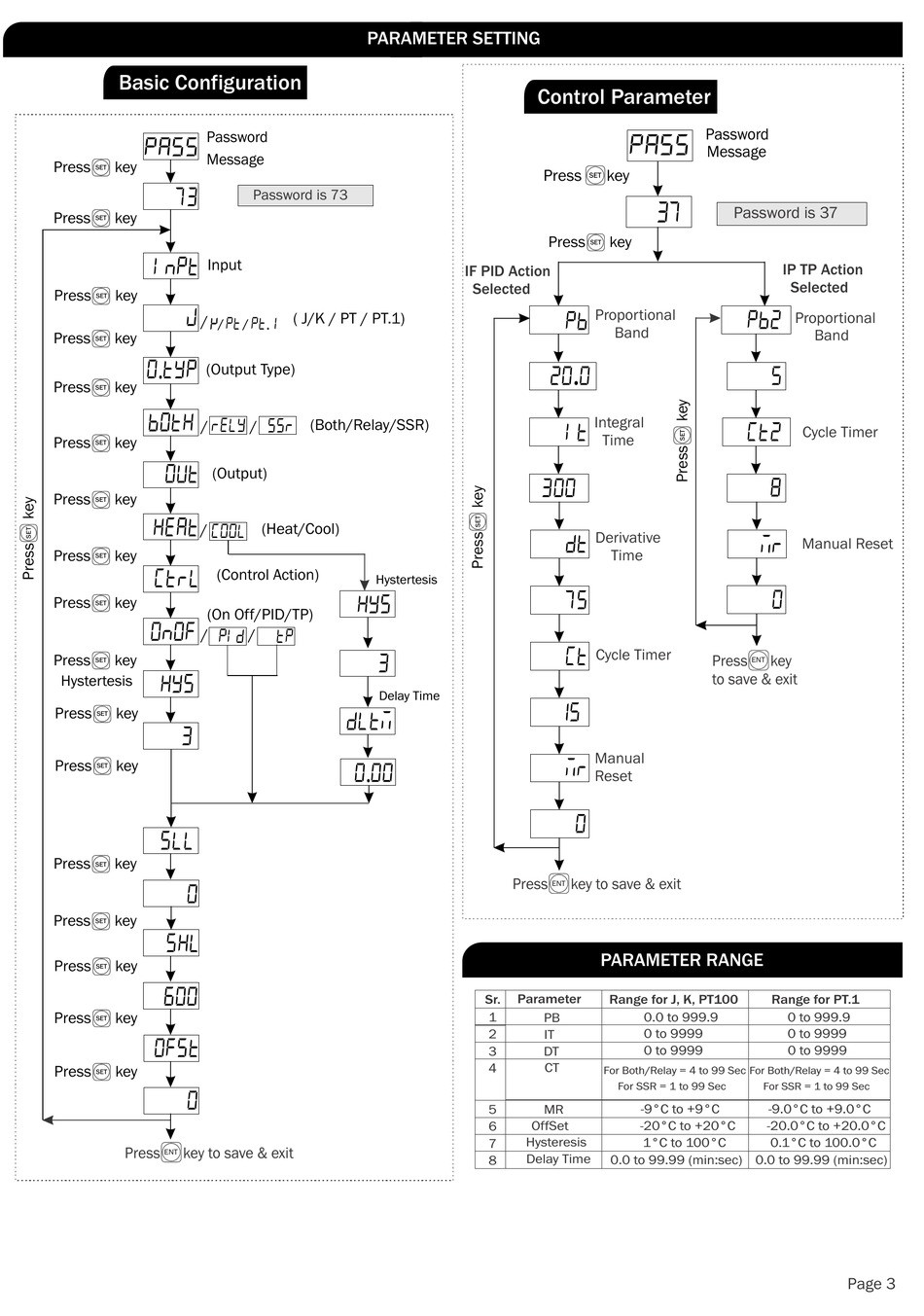

PARAMETER SETTING

Password is 73
( J/K / PT / PT.1)
/
SSR
(Both/Relay/SSR)
/
(Heat/Cool)
Hystertesis
Hys
/ tp
3
Delay Time
DLTM
0.OO

Control Parameter

pass
Press key
SET
Press key
SET
IF PID Action
Selected
Proportional
pB
Band
.
20 0
Integral
IT
Time
300
Derivative
DT
Time
75
CT
Cycle Timer
15
Manual
MR
Reset
0
Press key to save & exit
ENT

PARAMETER RANGE

Sr. Parameter
Range for J, K, PT100
1 PB
2 IT
3
DT
CT
4
For Both/Relay = 4 to 99 Sec
For SSR = 1 to 99 Sec
5
MR
OffSet
6
Hysteresis
7
Delay Time
0.0 to 99.99 (min:sec) 0.0 to 99.99 (min:sec)
8
Password
Message
37
Password is 37
IP TP Action
Selected
pb2
Proportional
Band
5
CT2
Cycle Timer
8
MR
Manual Reset
0
Press key
ENT
to save & exit
Range for PT.1
0.0 to 999.9 0 to 999.9
0 to 9999 0 to 9999
0 to 9999 0 to 9999
For Both/Relay = 4 to 99 Sec
For SSR = 1 to 99 Sec
-9°C to +9°C -9.0°C to +9.0°C
-20°C to +20°C -20.0°C to +20.0°C
1°C to 100°C 0.1°C to 100.0°C
