PV = Process value
SV = Set Value

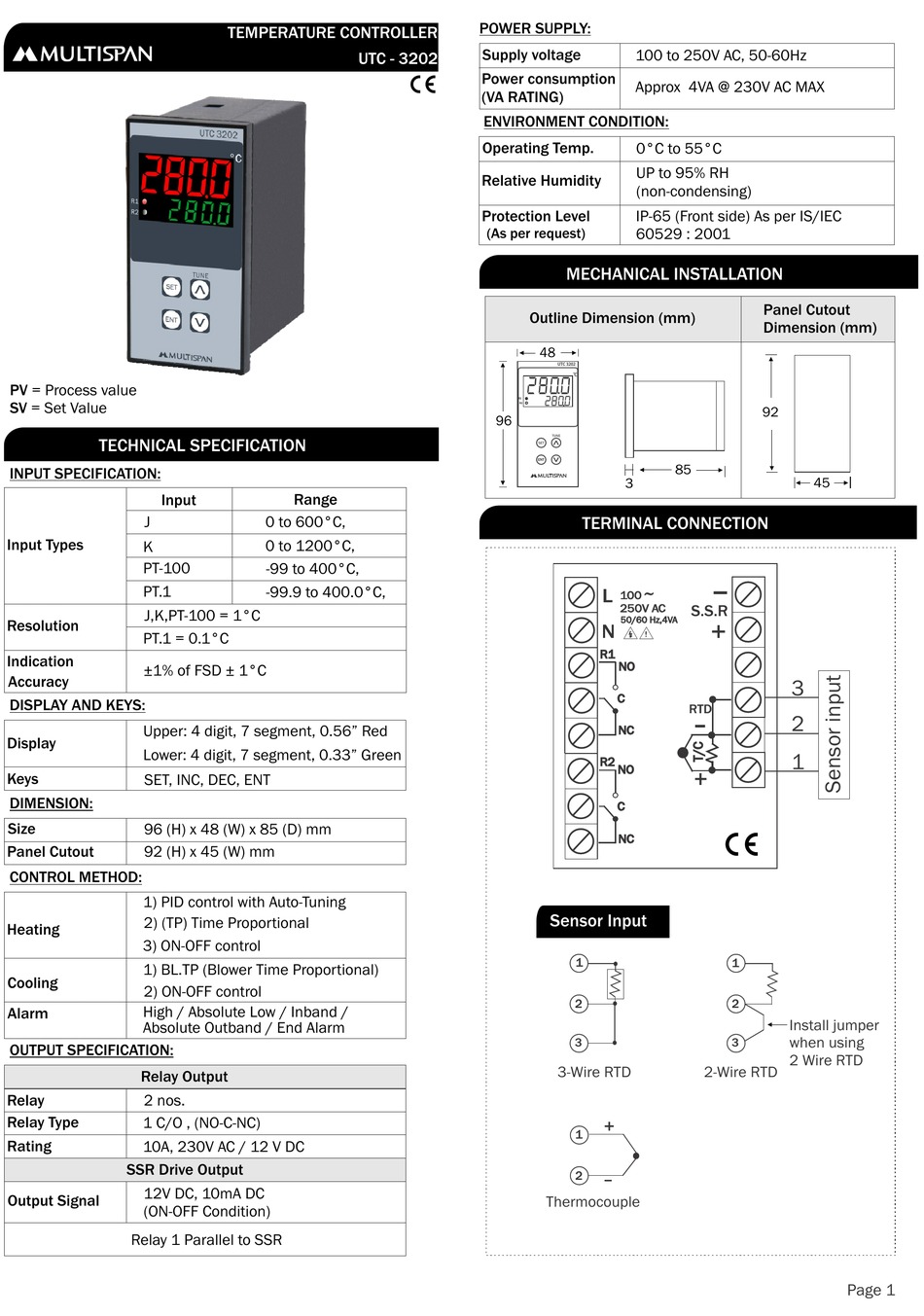

TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
J
Input Types
K
PT-100
PT.1
J,K,PT-100 = 1°C
Resolution
PT.1 = 0.1°C
Indication
±1% of FSD ± 1°C
Accuracy
DISPLAY AND KEYS:
Upper: 4 digit, 7 segment, 0.56" Red
Display
Lower: 4 digit, 7 segment, 0.33" Green
Keys
SET, INC, DEC, ENT
DIMENSION:
Size
96 (H) x 48 (W) x 85 (D) mm
Panel Cutout
92 (H) x 45 (W) mm
CONTROL METHOD:
1) PID control with Auto-Tuning
2) (TP) Time Proportional
Heating
3) ON-OFF control
1) BL.TP (Blower Time Proportional)
Cooling
2) ON-OFF control
High / Absolute Low / Inband /
Alarm
Absolute Outband / End Alarm
OUTPUT SPECIFICATION:
Relay Output
Relay
2 nos.
Relay Type
1 C/O , (NO-C-NC)
Rating
10A, 230V AC / 12 V DC
SSR Drive Output
12V DC, 10mA DC
Output Signal
(ON-OFF Condition)
Relay 1 Parallel to SSR

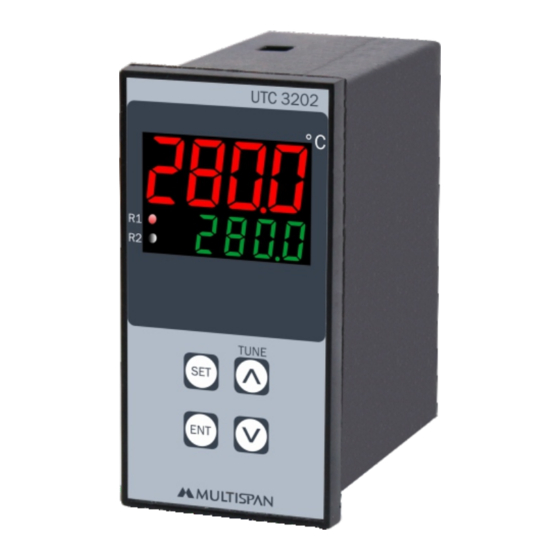

TEMPERATURE CONTROLLER
UTC - 3202
Range
0 to 600°C,
0 to 1200°C,
-99 to 400°C,
-99.9 to 400.0°C,
POWER SUPPLY:
Supply voltage
100 to 250V AC, 50-60Hz
Power consumption
Approx 4VA @ 230V AC MAX
(VA RATING)
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
(As per request)
60529 : 2001
MECHANICAL INSTALLATION
Outline Dimension (mm)
48
UTC3202
°
C
2 800
2800
R1
R2
96
ENT
3
TERMINAL CONNECTION
~
L
100
250V AC
50/60 Hz,4VA
N
!
R1
NO
C
NC
R2
NO
C
NC
Sensor Input
1
2
3
3-Wire RTD
1
2
Thermocouple
Panel Cutout
Dimension (mm)
92
85
45
-
S.S.R
3
RTD
2
1
1
2
Install jumper
when using
3
2 Wire RTD
2-Wire RTD
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UTC-320 and is the answer not in the manual?

Questions and answers

Summary of Contents for MULTISPAN UTC-320

  • Page 1 POWER SUPPLY: TEMPERATURE CONTROLLER Supply voltage 100 to 250V AC, 50-60Hz UTC - 3202 Power consumption Approx 4VA @ 230V AC MAX (VA RATING) ENVIRONMENT CONDITION: Operating Temp. 0°C to 55°C UP to 95% RH Relative Humidity (non-condensing) Protection Level IP-65 (Front side) As per IS/IEC (As per request) 60529 : 2001...
  • Page 2: Key Operation

    WARNING GUIDELINES STATUS LED DESCRIPTION WARNING : Risk of electric shock. 2 800 1. To prevent the risk of electric shock, power supply to the equipment must be kept OFF while doing the wiring arrangement. Do not touch the terminals while power is 2800 being supplied.
  • Page 3: Factory Setting

    FACTORY SETTING PARAMETER MESSAGE DESCRIPTION 2345 C-PB Cooling PB 2500 Cooling On Time Press+key C-ON for3sec Cooling Off Time C-OF Hysterisis 1 HYS1 Hysterisis 2 HYS2 : press key to apply factory set r!md Relay 1 Mode values as shown in table. Soak Time Select : press key to exit...
  • Page 4: Error Display

    RANGE FOR CONTROL PARAMETER SOAK TIME FUNCTION Soak feature can be use to hold the process at a preset Range for PT.1 sensor Parameter Range for J, K, PT100 temperature for a preset time. 0.0 to 999.9°C 0.0 to 999.9°C (Range : selectable up to 0 to 999 hour) 0 to 9999 0 to 9999...
  • Page 5: Set Point Setting

    PARAMETER SETTING PARAMETER SETTING SET POINT SETTING CONTROL PARAMETER SETTING Password is 37 If CTR1 TP If CTR1 PID If ALM1=IN-B/AB-O Presskey Presskey If ALM2=IN-B/AB-O R2MD OFF and S2MD=INDI Presskey If Soak = Yes Press key for 4 sec BASIC CONFIGURATION If CTR 2 =BL.TP Password is 73 ///...
  • Page 6 Case - 2 Case - 1 Heat + Heat Heat + Soak + Alarm If ON-OFF Selected If PID/TP Selected Case - 3 Heat + Cool If ON-OFF If PID/TP Selected Selected If PID/TP If HIGH/Ab-L Select Selected Select If ON-OFF Selected Page 6...
  • Page 7 Case - 4 Case - 6 Heat + Alarm Cool + Alarm If ON-OFF If PID/TP Selected Selected IF HIGH /AB-L IN - B / AB - 0 IF HIGH/ AB-L IN - B / AB - 0 Case - 7 Alarm + Alarm Case - 5 Cool + Cool...
  • Page 8: Control Function

    CONTROL FUNCTION ON - OFF control (Heating) - for relay 1 & relay - 2 mode RLY-OFF RLY-OFF HYST RLY-ON RLY-ON RLY-OFF RLY-ON Time ON - OFF control (Cooling) for relay 1 mode HYST RLY-OFF delay delay delay RLY-ON Time Time Time Time...
