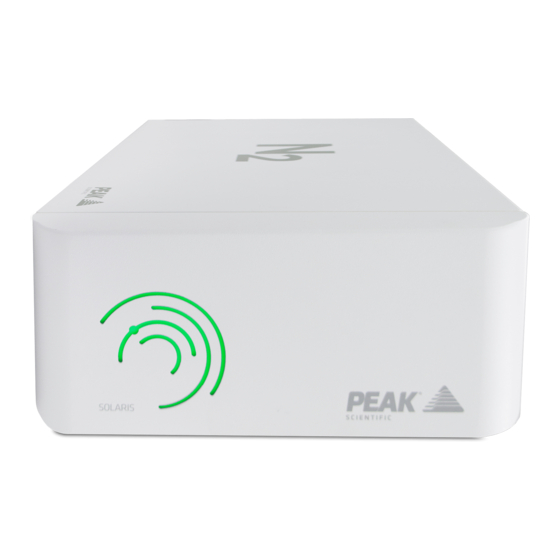

Solaris XE
User Manual
Copyright © Peak Scientific Instruments Ltd 2020 — Solaris XE User Manual Rev 5 RSID 2302 EN —21/07/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solaris XE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Peak Scientific Solaris XE

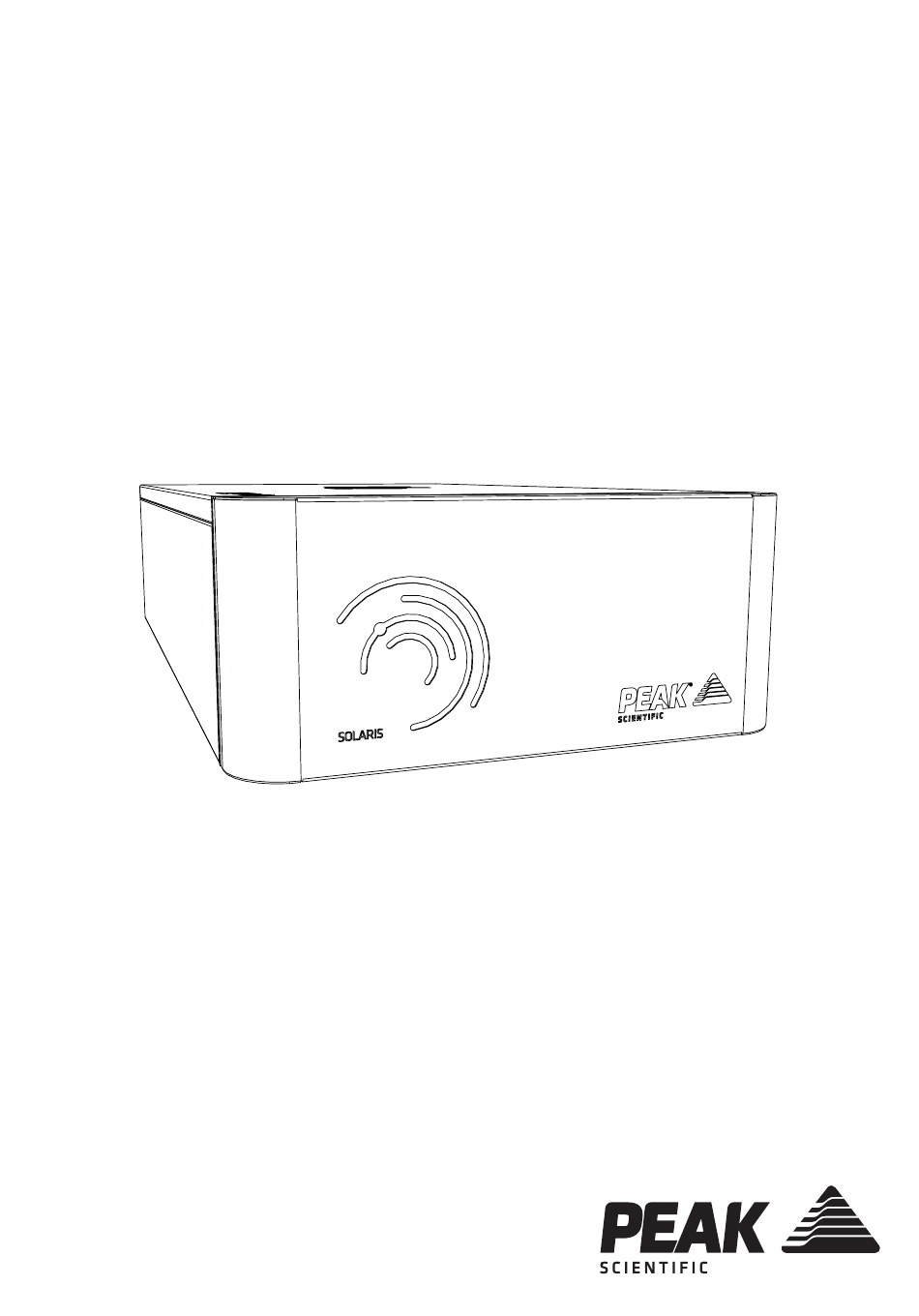

  • Page 1 Solaris XE User Manual Copyright © Peak Scientific Instruments Ltd 2020 — Solaris XE User Manual Rev 5 RSID 2302 EN —21/07/2020...
  • Page 2: Table Of Contents

    Technical Specification Solaris Nitrogen Unpacking Fittings Kit Contents Unpacking Instructions Installation Generator Environment Generator Overview Solaris XE General Dimensions Solaris XE Rear Connections Electrical Connection Air Purity Class 1 Particulate Class 4 Water Class 1 Oil Connecting to the application...
  • Page 3: Change History

    Users can refer to the contents page to find the relevant information. Please review each of the following sections carefully. Thank you for selecting Peak Scientific to meet your gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or the Peak Partner from which you purchased your generator.
  • Page 4: Warranties And Liabilities

    Warranties and Liabilities 1. The Company warrants that it has title to the Goods. 2. Subject to the provisions of this clause the Company warrants that the Goods shall comply in all material respects with any specification referred to in the Order Confirmation (as the same may be amended) and shall, subject thereto, be free from defects in material and workmanship for the lesser of a period of twelve months from the date of delivery or thirteen months from the date of dispatch...
  • Page 5: Safety Notices

    If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property.
  • Page 6: Declaration Of Conformity

    Declare that: Equipment: Nitrogen Generator Models: Solaris XE To which this declaration relates, is in conformity with the applicable EC directives, harmonized standards, and other normative requirements. • Low Voltage Directive 2014/35/EU EN 61010-1: 2010 Electrical Equipment for measurement, control and laboratory use.
  • Page 7: Environmental Declaration

    Peak Scientifi c Instruments Ltd. Fountain Crescent, Inchinnan, Renfrewshire, PA4 9RE Declare that: Equipment: Nitrogen Generator Models: Solaris XE Is fully compliant with the following Directives • 2012/19/EU WEEE (Waste of Electrical and Electronic Equipment) • 2011/65/EU & 2015/863 RoHS (Restriction of Hazardous Substance) Peak Scientifi c Instruments Ltd fully complies with its obligations towards the European WEEE (Waste of Electrical and Electronic Equipment) Directive 2012/19/EU.
  • Page 8: Technical Specification

    Technical Specification Solaris XE Environment Solaris XE Minimum Operating Ambient Temperature 5°C (41°F) Maximum Operating Ambient Temperature 35°C (95°F) Maximum Altitude 2000 m Maximum Relative Humidity 80% Non-Condensing Minimum Storage Temperature* -20°C (-4°F) Maximum Storage Temperature* 60°C (140°F) Note: Please ensure that the generator is situated in a well ventilated environment.
  • Page 9: Unpacking

    Check ‘SHOCKWATCH’ label for signs of rough handling prior to unpacking. Any damage should be reported immediately to the carrier and Peak Scientific or the Peak Partner from where the unit was purchased.
  • Page 10: Fittings Kit Contents

    Fittings Kit Contents Supplied in the Fittings Kit are all the fittings required to connect the generator to the application. The contents of the Fittings Kit are as follows: 1. 6mm Teflon Tubing x 3m 2. ¼” - 6mm Push-Fit Elbow Fitting 3.
  • Page 11: Installation

    Installation Generator Environment The generator should be situated in a well ventilated environment and positioned such that it can be easily disconnected if required. The generator is designed for indoor use only. It should be installed adjacent to, underneath or in between the application(s) it is supplying (maximum weight bearing up to 100kg) or it can be mounted onto a wall horizontally;...
  • Page 12: Generator Overview

    Generator Overview Solaris XE General Dimensions 343 mm / 13.50” 655 mm / 25.78” Horizontal postioning on wall. Page 12...
  • Page 13: Solaris Xe Rear Connections

    Solaris XE Rear Connections Power Switch Power Inlet Compressed Air Inlet Nitrogen Outlet Ensure outlets are connected to correct application. Connections should only be carried out by trained personnel. CAUTION The Generator should be switched off prior to maintenance and cleaning.
  • Page 14: Electrical Connection

    Electrical Connection Connect the generator to an appropriate 100-230 volt single-phase supply, refer to the generator serial plate for input specification and ensure your supply matches the requirements. If the appropriate power cord is not supplied; a new plug, rated to at least 12 amps, can be fitted by a qualified electrician.
  • Page 15: Air Purity

    Air Purity The Solaris XE generator should be connected to an air supply that, as a minimum, meets ISO8753-1:2010 Class 1.4.1 Class 1 Particulate In each cubic metre of compressed air, the particulate count should not exceed 20,000 particles in the 0.1 - 0.5 micron size range, 400 particles in the 0.5 - 1 micron range and 10 particles in the 1 - 5 micron size range.
  • Page 16: Start-Up Sequence

    Start-Up Sequence Connect the generator to the application as described in the installation guide. Switch the generator on using the power switch on the rear panel of the unit and connect to the air supply. Please note: Air can flow through the generator without the power switched on, however the power must be switched on to give an indication of internal pressure in the system.
  • Page 17: Setting The Output Pressure

    Setting the Output Pressure The generator will deliver Nitrogen at the rated flow up to a maximum pressure of 116psi, assuming an adequate air supply. The output pressure can be adjusted using the regulator at the front of the generator and viewed on the adjacent gauge. To access the regulator, unclip the fascia from the unit.
  • Page 18: Service Requirements

    Service Requirements Service Schedule Purchase Interval Component Visit Qty. Solaris Nitrogen XE Annual 12 months www.peakscientific.com/ordering Maintenance Kit Please note: Only Peak Scientific approved components should be used. Page 18...
  • Page 19: Peak Protected

    Peak Protected With Peak Scientific you invest in not only a product but peace of mind. With a network of certified Peak engineers stationed throughout the globe, Peak’s rapid response team are never far away and our commitment is to keep your generator running day in, day out, protecting your laboratory workflow.
  • Page 20: Cleaning

    Cleaning Clean the outside of the generator only using warm soapy water and a clean damp cloth. Ensure all excess fluid is thoroughly removed from the cloth prior to use. Cleaning should only be undertaken with the power switched off and the power cord removed from the rear of the generator.
  • Page 21: Troubleshooting

    Troubleshooting Problem Possible Solution • Ensure power cord is plugged into the generator and that the power socket is turned on. The generator will not switch on and the • Check the fuse in the power cord plug. power switch does not illuminate. •...
  • Page 22 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
  • Page 23 Page 23...
  • Page 24 Tel: +44 141 812 8100 Fax: +44 141 812 8200 For further information on any of our generator products please contact marketing@peakscientific.com Copyright © Peak Scientific Instruments Ltd 2020 — Solaris XE User Manual Rev 5 RSID 2302 EN —21/07/2020...
