Module programming for security-only installations

Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.

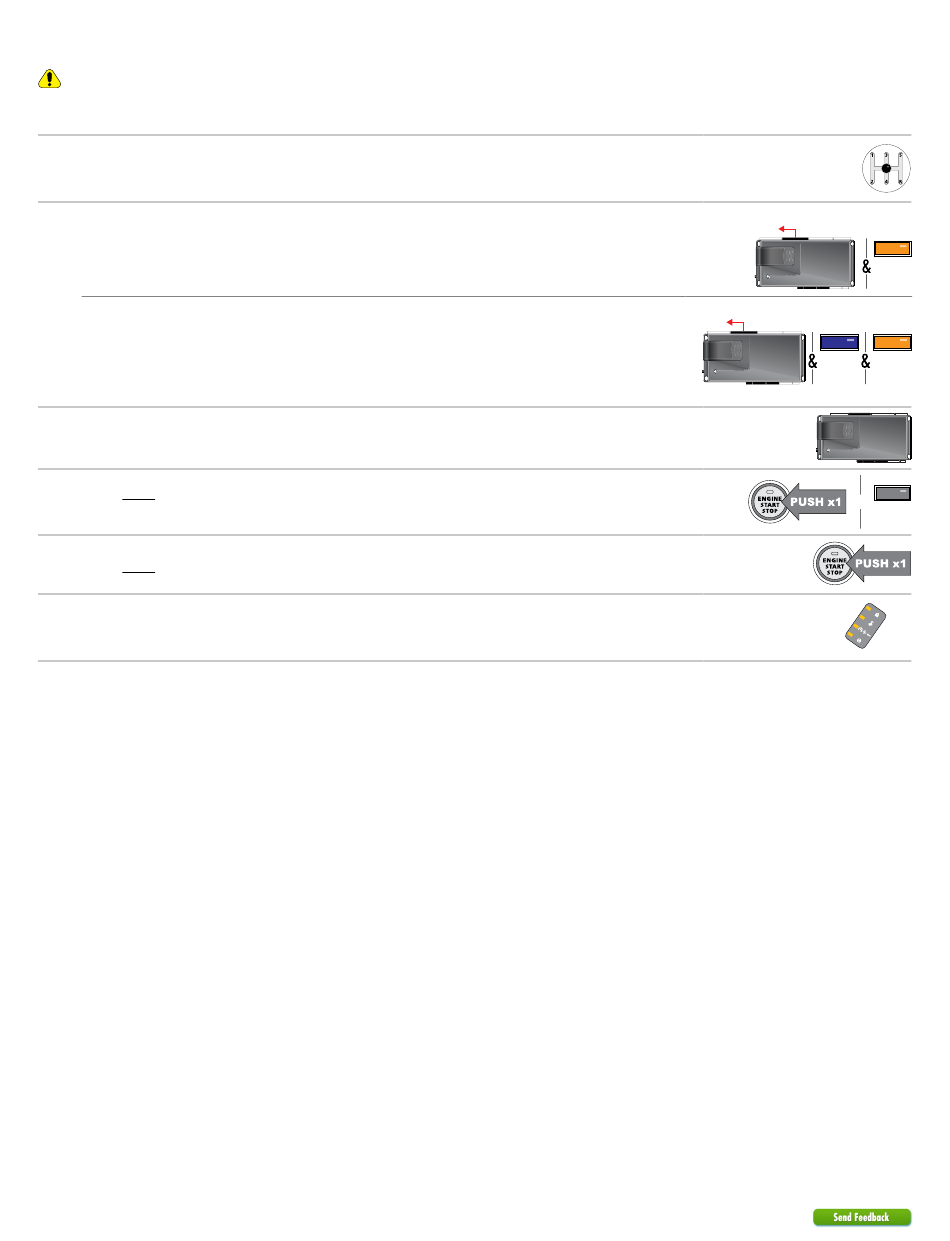

To connect the module:
Please ensure that the vehicle is in a safe location and cannot move forward during
1
programming. For vehicles equipped with a manual transmission, make sure the gearshift
lever is in the neutral position.
DS3+: Connect the 12-pin main power harness to the DS3+ module FIRST.
Wait until the LED turns ON solid orange before proceeding to the next step.
2
DS4+: Connect the 12-pin main power harness to the DS4+ module FIRST.
The LED will turn ON solid blue for 1 second to confirm Bluetooth communication.
Wait until the LED turns ON solid orange before proceeding to the next step.
3
Connect the remaining harnesses to the module.
Press once on the Push-to-Start (PTS) button to turn the ignition ON, and wait until the LED
4
turns OFF.
5
Press once more on the PTS button to turn the ignition OFF.
Pair remotes (if applicable). For information on how to pair a specific remote, please
6
refer to its corresponding owner documentation, which can be found inside the product
packaging of the complete system or on www.directechs.com.*
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
