Module programming for security-only installations

Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.

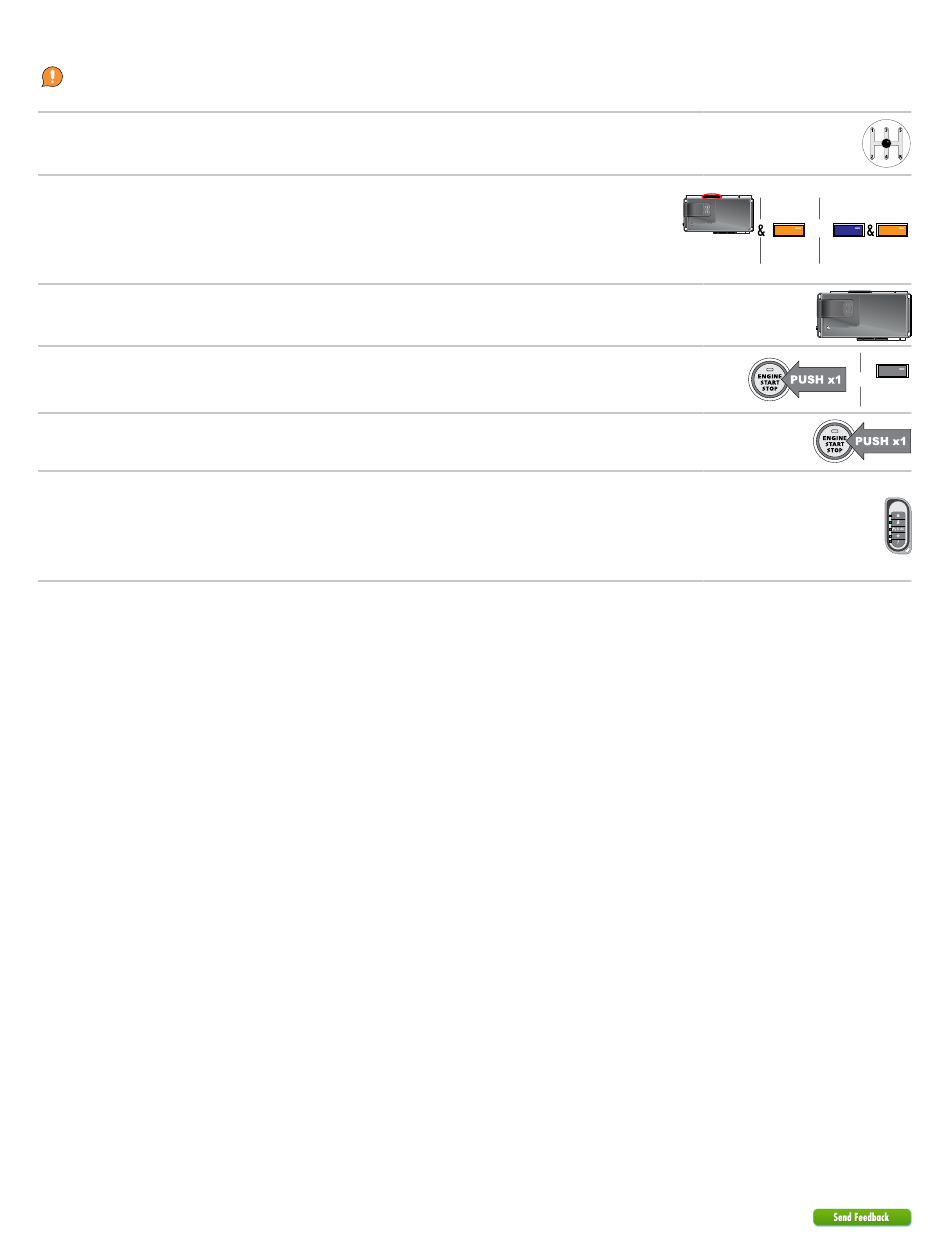

Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles
1
equipped with a manual transmission, make sure the gearshift is in the neutral position.
Connect the 12-pin main power harness to the module.
2
DS3+: Wait until the LED turns ON solid orange then proceed to the next step.
DS4+: The LED turns ON solid blue for 1 second to confirm Bluetooth communication.
Wait until the LED turns ON solid orange, then proceed to the next step.
3
Connect the remaining harnesses to the module.
Press once (1) on the Push-to-Start (PTS) button to turn the ignition ON.
4
Wait until the LED turns OFF.
5
Press once (1) more on the PTS button to turn the ignition OFF.
Pair remotes (if applicable).
6
For information on how to pair a specific remote, please refer to its corresponding owner
documentation, which can be found inside the product packaging of the complete system or on
www.directechs.com. Your aftermarket remote may differ from the model show in the illustration.
You have successfully completed the module programming sequence.
12
933.TL17 1.02.198.12 2024 Toyota Grand Highlander (Smart Key)
