Summary of Contents for IEI Technology POC-17C-ULT3

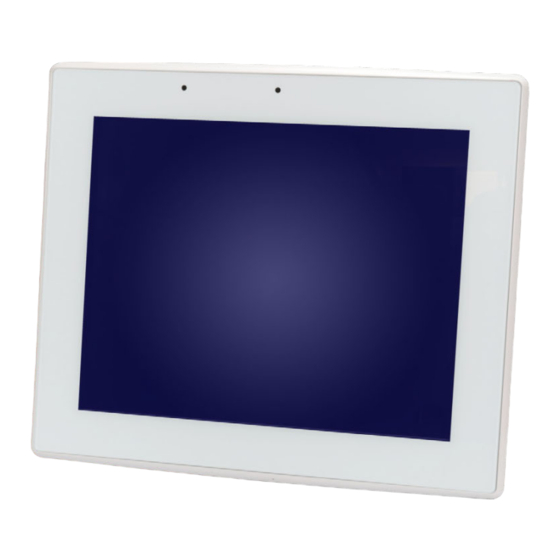

- Page 1 17” Medical Panel PC with Intel Core™ i7-6600U/Core™ i5-6300U/ Celeron® 3855U CPU, 4 GB DDR RAM, Wi-Fi 802.11a/b/g/n/ac, PCAP Touchscreen, 2-Megapixel Camera, Microphone and RoHS POC-17C-ULT3 Quick Installation Guide Version 1.00 ©2017 Copyright by IEI Integration Corp. All rights reserved.
-
Page 2: Intended Use
1.00 Initial release Intended Use The POC-17C-ULT3 medical panel PC is intended to be used to display general purpose medical images. The device shall not be used for diagnosis purpose or life supporting system. Equipment connected to analog or digital interfaces must comply with the respective IEC Standards (e.g. - Page 3 Core™/Celeron powered medical-grade panel PC with a rich variety of functions and peripherals. All POC-17C-ULT3 models are designed for easy and simplified integration into point-of-care (POC) applications. The system comes with 4 GB of preinstalled DDR4 memory and supports a maximum of 32 GB ensuring smooth data throughputs with reduced bottlenecks and fast system access.
- Page 4 Front Panel Bottom Panel...
- Page 5 Side Panel Rear Panel...
-
Page 6: System Specifications
System Specifications LCD and Touchscreen LCD Size 17" (5:4) Max. Resolution 1280 (W) x 1024 (H) Brightness (cd/m Contrast Ratio 1000:1 LCD Color 16.7M (RGB 6-bit) Pixel Pitch (mm) 0.264 (H) x 0.264 (V) Viewing Angle (H-V) 170°/160° Backlight MTBF 30,000 hrs (LED backlight) Touchscreen Projected capacitive type with USB interface... - Page 7 Other Features Mifare RFID Optional Mifare 13.56 MHz card reader (with LED indicator) 1 x LCD on/off 1 x Brightness up 1 x Brightness down 1 x Volume up Function Keys 1 x Volume down 1 x Touch lock for cleaning Combinations: 1 x Lock/unlock OSD 1 x Power on/off...
-
Page 8: Installation Precautions
Installation Precautions When installing the medical panel PC, please follow the precautions listed below: Manufacturer authorization: Do not modify this equipment without authorization of manufacturer. Certified Engineers: Only certified engineers should install and modify the hardware settings. Power turned off: When installing the medical panel PC, make sure the power is off. - Page 9 Step 5: Secure the mounting bracket to the wall by inserting the retention screws into the four pilot holes and tightening them. Step 6: Insert the four monitor mounting screws provided in the wall mount kit into the four screw holes on the real panel of the medical panel PC and tighten until the screw shank is secured against the rear panel.
- Page 10 NOTE: In the diagram below the bracket is already installed on the wall. Step 9: Secure the panel PC by fastening the retention screw of the wall-mounting bracket.
-
Page 11: Powering On The System
If the following situations happen, contact your distributor, sales representatives or IEI customer service center for technical support. The HDD is installed correctly, but the POC-17C-ULT3 is unable to boot with AC power input after pressing the power button. Unable to shut down the POC-17C-ULT3 normally... -
Page 12: System Maintenance
A complete description of the abnormal situation (with photos or video if available) System Maintenance If the components of the POC-17C-ULT3 fail they must be replaced. Please contact the system reseller or vendor to purchase the replacement parts. Maintenance and Cleaning Prior to cleaning any part or component of the POC-17C-ULT3, please read the details below. -
Page 13: Optional Items
Medical-grade power adapter (120 W, 19 V DC output) (P/N: 63040-010120-010-RS) Power cord (P/N: 32702-000200-100-RS) Pan-head screw (M3*5) for HDD installation (P/N: 44043-030051-RS) Quick Installation Guide Utility CD One Key Recovery CD Optional Items The following are optional components which may be separately purchased: Item and Part Number Image... -
Page 14: Declaration Of Conformity
DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives: EMC Directive (2004/108/EC, 2014/30/EU) Low-Voltage Directive (2006/95/EC, 2014/35/EU) RoHS II Directive (2011/65/EU, 2015/863/EU) Medical Device Directive 93/42/EEC: EN 60601-1 If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply. -
Page 15: Rohs Statement
ROHS STATEMENT The label on the product indicates this product conforms to European (EU) Restriction of Hazardous Substances (RoHS) that set maximum concentration limits on hazardous materials used in electrical and electronic equipment. CHINA ROHS The label on the product indicates the estimated “Environmentally Friendly Use Period”... -
Page 16: Safety Precautions
Electric shocks can occur if the POC-17C-ULT3 chassis is opened when the POC-17C-ULT3 is running. To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth. - Page 17 Union Member States. Please follow the national guidelines for electrical and electronic product disposal. Classification Power by Class I power supply (IEI, POC-17C-ULT3) No Applied Part. No protection against the ingress of water: IPX0 Mode of operation: Continuous Operation The equipment not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide: Not AP or APG Category.
-
Page 18: Emc Test Summary
Guidance and manufacturer’s declaration – electromagnetic emissions The model POC-17C-ULT3 is intended for use in the electromagnetic environment specified below. The customer or the user of the model POC-17C-ULT3 should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –... - Page 19 Guidance and manufacturer’s declaration – electromagnetic immunity The model POC-17C-ULT3 is intended for use in the electromagnetic environment specified below. The customer or the user of the model POC-17C-ULT3 should assure that it is used in such an environment. Immunity test...
- Page 20 Guidance and manufacturer’s declaration – electromagnetic immunity The model POC-17C-ULT3 is intended for use in the electromagnetic environment specified below. The customer or the user of the model POC-17C-ULT3 should assure that it is used in such an environment. Immunity...
- Page 21 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the model POC-17C-ULT3 is used exceeds the applicable RF compliance level above, the model POC-17C-ULT3 should be observed to verify normal operation.
-
Page 22: Contact Information
Contact Information IEI Integration Corp. No. 29, Zongxing Rd., Xizhi Dist., Address: New Taipei City 221, Taiwan Phone: +886-2-8691-6798 Fax: +886-2-6616-0028 Web Site: www.ieiworld.com Sales Email: sales@ieiworld.com.tw...
