Summary of Contents for IEI Technology POC-W22A-H81

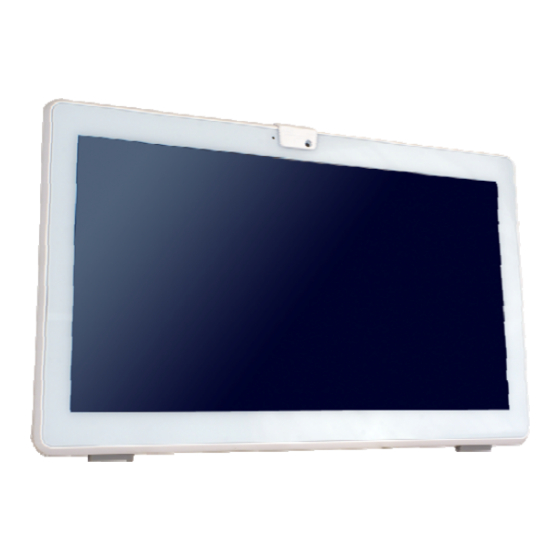

- Page 1 21.5” Medical Panel PC with 4 Generation Intel Dual-Core CPU, Touchscreen, Anti-bacteria Cover, Dual USB 3.0, Dual GbE LAN, RS-232/422/485, HDMI, VGA, Front IP 65 Rating and RoHS POC-W22A-H81 Quick Installation Guide Version 1.01 ©2017 Copyright by IEI Integration Corp. All rights reserved.
-
Page 2: Intended Use
1.00 Initial release Intended Use The POC-W22A-H81 medical panel PC is intended to be used to review and update electronic medical records (EMR) in hospital information system (HIS). The device is not suitable for diagnosis display. Equipment connected to analog or digital interfaces must comply with the respective IEC Standards (e.g. - Page 3 ® The POC-W22A-H81 is a 4 generation Intel Core™/Pentium powered medical-grade panel PC with a rich variety of functions and peripherals. All POC-W22A-H81 models are designed for easy and simplified integration into point-of-care (POC) applications. ® ® ® An Intel Core™...
- Page 4 Front Panel Side Panel...
- Page 5 Bottom Panel Rear Panel...
-
Page 6: System Specifications
System Specifications Specification POC-W22A-H81 ® ® Intel Pentium G3320TE (dual-core, 2.3 GHz, TDP 35 W) ® Intel Core™ i3-4330TE (dual-core, 2.4 GHz, TDP 35 W) ® Intel Core™ i5-4570TE (dual-core, 2.7 GHz, TDP 35 W) ® Chipset Intel Memory Two 204-pin 1600/1333 MHz dual-channel DDR3 SO-DIMM slots preinstalled with two 2 GB SDRAM (system max. - Page 7 1 x HDMI connector 1 x RS-232/422/485 serial port (DB-9 connector) 2 x GbE LAN (RJ-45 connector) 2 x USB 3.0 connectors 4 x USB 2.0 connectors 1 x VGA connector Buttons, Switches and Indicators Backlit Touch Buttons Six touch buttons (LCD on/off, brightness up, brightness down, volume up, volume down, lock/unlock touch function) Buttons &...
-
Page 8: Ups Battery
CAUTION: The following precautions should be followed when using the battery: Do not use battery power to boot up the POC-W22A-H81. Charge the battery with a voltage higher than 16.8 V. Charging time (from 30% to 100%):... - Page 9 Mounting the System – Wall Mount WARNING: Use suitable mounting apparatus and be sure to secure the screws of the mounting apparatus tightly to avoid risk of injury. To mount the medical panel PC onto the wall, please follow the steps below.
- Page 10 WARNING: Please use the M4 screws provided in the wall mount kit for the rear panel. If the screw is missing, the thread depth of the replacement screw should be not more than 4 mm. Step 7: Align the mounting screws on the monitor rear panel with the mounting holes on the bracket.
-
Page 11: Powering On The System
To avoid risk of electric shock, this equipment must only be connected to supply mains with protective earth. CAUTION: The FSP PMP120-13-2 power adapter came with the POC-W22A-H81 is a forming part of the medical device. Step 1: Connect the power cord to the power adapter. Connect the other end of the power cord to a power source. -
Page 12: Shutdown Procedure
If the following situations happen, contact your distributor, sales representatives or IEI customer service center for technical support. The HDD is installed correctly, but the POC-W22A-H81 is unable to boot with AC power input after pressing the power button. - Page 13 The interior of the POC-W22A-H81 does not require cleaning. Keep fluids away from the POC-W22A-H81 interior. Never drop any objects or liquids through the openings of the POC-W22A-H81. Accessories The POC-W22A-H81 medical panel PC is shipped with the following...
-
Page 14: Optional Items
Optional Items The following are optional components which may be separately purchased: Item and Part Number Image VESA 100 wall mount kit (four M3*6 screws included) (P/N: AFLWK-19B) 14.8 V 3550 mAH Li-ion battery (Getac BAT003-4S1P3550-0, assemble-to-order) (P/N: MEDP-BAT-R10) Mifare RFID reader compliant with ISO 14443A, 14443B 15693 protocols... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives: EMC Directive (2004/108/EC, 2014/30/EU) Low-Voltage Directive (2006/95/EC, 2014/35/EU) RoHS II Directive (2011/65/EU, 2015/863/EU) Medical Device Directive 93/42/EEC: EN 60601-1 If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply. -
Page 16: Rohs Statement
ROHS STATEMENT The label on the product indicates this product conforms to European (EU) Restriction of Hazardous Substances (RoHS) that set maximum concentration limits on hazardous materials used in electrical and electronic equipment. CHINA ROHS The label on the product indicates the estimated “Environmentally Friendly Use Period”... -
Page 17: Safety Precautions
Electric shocks can occur if the POC-W22A-H81 chassis is opened when the POC-W22A-H81 is running. To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth. - Page 18 Please follow the national guidelines for electrical and electronic product disposal. Classification Power by Class I power supply (IEI, POC-W22A-H81) No Applied Part. No protection against the ingress of water: IPX0 Mode of operation: Continuous Operation...
-
Page 19: Emc Test Summary
Guidance and manufacturer’s declaration – electromagnetic emissions The model POC-W22A-H81 is intended for use in the electromagnetic environment specified below. The customer or the user of the model POC-W22A-H81 should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –... - Page 20 Guidance and manufacturer’s declaration – electromagnetic immunity The model POC-W22A-H81 is intended for use in the electromagnetic environment specified below. The customer or the user of the model POC-W22A-H81 should assure that it is used in such an environment. Immunity test...
- Page 21 Guidance and manufacturer’s declaration – electromagnetic immunity The model POC-W22A-H81 is intended for use in the electromagnetic environment specified below. The customer or the user of the model POC-W22A-H81 should assure that it is used in such an environment. Immunity...
- Page 22 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the model POC-W22A-H81 is used exceeds the applicable RF compliance level above, the model POC-W22A-H81 should be observed to verify normal operation.
-
Page 23: Contact Information
Contact Information IEI Integration Corp. No. 29, Zongxing Rd., Xizhi Dist., Address: New Taipei City 221, Taiwan Phone: +886-2-8691-6798 Fax: +886-2-6616-0028 Web Site: www.ieiworld.com Sales Email: sales@ieiworld.com.tw...
