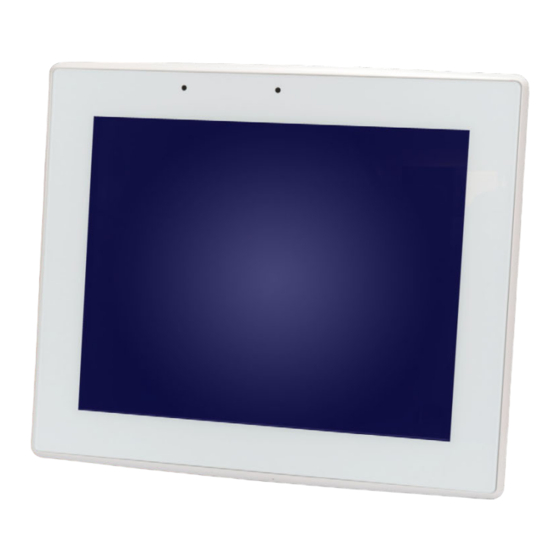

POC-17C-ULT3 Medical Panel PC
MODEL:
POC-17C-ULT3
17" Medical Panel PC with Intel® Core™ i7-6600U/Core™ i5-6300U/
Celeron® 3855U CPU, 4 GB DDR4 RAM, Wi-Fi 802.11a/b/g/n/ac,
PCAP Touchscreen, 2-Megapixel Camera and Microphone
Rev. 1.03 - November 28, 2017
User Manual
User Manual
Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POC-17C-ULT3 and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology POC-17C-ULT3

Summary of Contents for IEI Technology POC-17C-ULT3

  • Page 1 POC-17C-ULT3 Medical Panel PC MODEL: POC-17C-ULT3 17” Medical Panel PC with Intel® Core™ i7-6600U/Core™ i5-6300U/ Celeron® 3855U CPU, 4 GB DDR4 RAM, Wi-Fi 802.11a/b/g/n/ac, PCAP Touchscreen, 2-Megapixel Camera and Microphone User Manual User Manual Page i Rev. 1.03 - November 28, 2017...
  • Page 2 POC-17C-ULT3 Medical Panel PC Revision Date Version Changes November 28, 2017 1.03 Added the 150W/19V power adapter as the power supply option October 18, 2017 1.02 Modified environment and power adapter information September 29, 2017 1.01 Added a note on Page 66 August 9, 2017 1.00...
  • Page 3 POC-17C-ULT3 Medical Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 POC-17C-ULT3 Medical Panel PC Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.

  • Page 5: Table Of Contents

    POC-17C-ULT3 Medical Panel PC Table of Contents 1 INTRODUCTION......................1 1.1 O ........................2 VERVIEW 1.2 M ....................3 ODEL ARIATIONS 1.3 F ........................3 EATURES 1.4 F ......................4 RONT ANEL 1.4.1 Backlit Touch Buttons ..................5 1.5 S ......................
  • Page 6 POC-17C-ULT3 Medical Panel PC 3.10.1 AT Power Mode....................36 3.10.2 ATX Power Mode ................... 37 3.11 C ................37 ABLE OVER NSTALLATION 3.12 M ..................39 OUNTING THE YSTEM 3.12.1 Wall Mounting....................39 3.12.2 Arm Mounting ....................42 3.12.3 Stand Mounting ....................44 3.13 P...
  • Page 7 POC-17C-ULT3 Medical Panel PC 4.4.1.1 Graphics Configuration................71 4.4.1.1.1 LCD Control ..................73 4.4.1.2 Memory Configuration ................74 4.4.2 PCH-IO Configuration ..................74 4.4.2.1 PCI Express Configuration ............... 75 4.4.2.2 HD Audio Configuration................76 4.5 S ......................... 77 ECURITY 4.6 B ........................
  • Page 8 POC-17C-ULT3 Medical Panel PC 7 INTERFACE CONNECTORS ..................113 7.1 P ..............114 ERIPHERAL NTERFACE ONNECTORS 7.2 I ..............115 NTERNAL ERIPHERAL ONNECTORS 7.2.1 Audio Connector (AUDIO_OUT1) ..............116 7.2.2 Audio Out Connector (AMP_OUT1) ..............116 7.2.3 Battery Connector (BAT1) ................116 7.2.4 Debug Connector (DBG_PORT1) ..............117 7.2.5 Inverter Connector (INVERTER1)..............117...
  • Page 9 POC-17C-ULT3 Medical Panel PC 7.4.3 LVDS Panel Resolution Selection Jumper (SW1) .......... 128 7.4.4 PCIe Mini/mSATA Mode Selection (MSATA_CN1) ........128 A REGULATORY COMPLIANCE ................129 B SAFETY PRECAUTIONS ..................134 B.1 S ................... 135 AFETY RECAUTIONS B.1.1 General Safety Precautions ................135 B.1.2 Anti-static Precautions ..................
  • Page 10 POC-17C-ULT3 Medical Panel PC List of Figures Figure 1-1: POC-17C-ULT3 Medical Panel PC ................2 Figure 1-2: Front View ........................4 Figure 1-3: Backlit Touch Buttons ....................5 Figure 1-4: Side View........................6 Figure 1-5: Bottom Panel .......................7 Figure 1-6: Rear View ........................7 Figure 1-7: Dimensions (mm) ......................11 Figure 3-1: HDD Cover Retention Screws..................20...
  • Page 11 POC-17C-ULT3 Medical Panel PC Figure 3-25: Aligning the Tab on the Bottom Panel..............37 Figure 3-26: Cable Cover Installation ..................38 Figure 3-27: Cable Cover Removal .....................38 Figure 3-28: Wall-mounting Bracket ...................40 Figure 3-29: Chassis Support Screws ..................41 Figure 3-30: Secure the Panel PC ....................42 Figure 3-31: VESA 75 and VESA 100 Mounting Retention Screw Holes.........43...
  • Page 12 POC-17C-ULT3 Medical Panel PC Figure 5-26: Driver Installation Complete Window ..............101 Figure 5-27: Device Manager Window–MSR Device .............. 102 Figure 5-28: Fingerprint Reader Driver Folder ............... 102 Figure 5-29: Fingerprint Reader Driver InstallShield Wizard ..........103 Figure 5-30: Barcode Reader Driver Folder ................104 Figure 5-31: Barcode Reader Driver Installation ..............
  • Page 13 POC-17C-ULT3 Medical Panel PC List of Tables Table 1-1: Model Variations ......................3 Table 1-2: Touch Button Functions ....................5 Table 1-3: System Specifications....................10 Table 3-1: Handset Button Functions..................27 Table 3-2: RS-232/422/485 Serial Port Pinouts ................36 Table 4-1: BIOS Navigation Keys ....................49 Table 7-1: Peripheral Interface Connectors ................
  • Page 14 POC-17C-ULT3 Medical Panel PC Table 7-26: RS-232/422/485 DB-9 Serial Port (COM1) Pinouts..........125 Table 7-27: USB 2.0 Connector (USB20_CN1) Pinouts............125 Table 7-28: USB 3.0 Connector (USB_CON12) Pinouts............126 Table 7-29: USB 3.0 Connector (USB_CON2) Pinouts............126 Table 7-30: Preconfigured Jumpers ..................127 Table 7-31: Flash Descriptor Security Override Jumper (ME_FLASH1) Settings....
  • Page 15 POC-17C-ULT3 Medical Panel PC List of BIOS Menus BIOS Menu 1: Main ........................50 BIOS Menu 2: Advanced ......................51 BIOS Menu 3: Trusted Computing ....................52 BIOS Menu 4: ACPI Settings .......................53 BIOS Menu 5: F81866 Super IO Configuration ................54 BIOS Menu 6: Serial Port n Configuration Menu...............54 BIOS Menu 7: F81866 H/W Monitor.....................57...

  • Page 16: Introduction

    POC-17C-ULT3 Medical Panel PC Chapter Introduction Page 1...

  • Page 17: Overview

    LAN. The system also equips with two SATA interfaces, supporting both SATA HDD and SSD. NOTE: The POC-17C-ULT3 medical panel PC is intended to be used to display general purpose medical images. The device shall not be used for diagnosis purpose or life supporting system.

  • Page 18: Model Variations

    POC-17C-ULT3 Medical Panel PC 1.2 Model Variations There are three models in the POC-17C-ULT3 series. All models are preinstalled with one 4 GB DDR4 memory module and an 802.11a/b/g/n/ac Wi-Fi module. The model numbers and model variations are listed below.

  • Page 19: Front Panel

    POC-17C-ULT3 Medical Panel PC 1.4 Front Panel The front side of the POC-17C-ULT3 is a flat-bezel panel with a TFT LCD screen surrounded by a PC+ABS plastic frame (Figure 1-2). Figure 1-2: Front View Page 4...

  • Page 20: Backlit Touch Buttons

    POC-17C-ULT3 Medical Panel PC 1.4.1 Backlit Touch Buttons The front panel of the POC-17C-ULT3 contains several backlit touch buttons that control audio volume, LCD brightness and some other system components. Figure 1-3: Backlit Touch Buttons The following table describes the function of each button.

  • Page 21: Side Panels

    The left side panel has two USB 2.0 ports which are protected by a waterproof cover and the IEI E-Window for I/O interface expansion by installing a PCIe Mini card. In addition, the POC-17C-ULT3 equips with two 2 W speakers located on the side panels as shown in Figure 1-4.

  • Page 22: Rear Panel

    POC-17C-ULT3 Medical Panel PC 1 x HDMI output connector 1 x AT/ATX switch 1 x Reset button Figure 1-5: Bottom Panel 1.7 Rear Panel The rear panel contains the power button, camera cover on/off switch and the retention screw holes that support VESA 75/100 mounting (Figure 1-6). Besides, the rear panel has several screw holes for installing the optional items, such as the 3-in-1 reader.

  • Page 23: System Specifications

    POC-17C-ULT3 Medical Panel PC 1.8 System Specifications The technical specifications for the POC-17C-ULT3 systems are listed in Table 1-3. LCD and Touchscreen 17" (5:4) LCD Size 1280 (W) x 1024 (H) Max. Resolution Brightness (cd/m 1000:1 Contrast Ratio 16.7M (RGB 6-bit) LCD Color 0.264 (H) x 0.264 (V)
  • Page 24 POC-17C-ULT3 Medical Panel PC Two 2 W speakers Audio 2-megapixel CMOS front-facing camera with auto focus Webcam & Microphone and digital microphone One PCIe Mini slot (reserved) Expansion Interface RFID LED indicator (optional) LED Indicator Other Features Optional Mifare 13.56 MHz card reader (with LED indicator)

  • Page 25: Table 1-3: System Specifications

    POC-17C-ULT3 Medical Panel PC Environment -20ºC ~ 60ºC Temperature 10% ~ 95% (non-condensing) Storage/Transportation Humidity 700 hPa ~ 1060 hPa Pressure 0ºC ~ 40ºC Temperature 10% ~ 95% (non-condensing) Operating Humidity 700 hPa ~ 1060 hPa Pressure Vibration Operating Shock: 5G peak acceleration (11ms duration)

  • Page 26: Dimensions

    POC-17C-ULT3 Medical Panel PC 1.9 Dimensions The POC-17C-ULT3 dimensions are shown below. Figure 1-7: Dimensions (mm) Page 11...

  • Page 27: Unpacking

    POC-17C-ULT3 Medical Panel PC Chapter Unpacking Page 12...

  • Page 28: Unpacking

    POC-17C-ULT3 Medical Panel PC 2.1 Unpacking To unpack the medical panel PC, follow the steps below: WARNING! The front side LCD screen has a protective plastic cover stuck to the screen. Only remove the plastic cover after the medical panel PC has been properly installed.

  • Page 29: Packing List

    Contact the IEI reseller or vendor the POC-17C-ULT3 was purchased from or contact an IEI sales representative directly by sending an email to ales@ieiworld.com. The POC-17C-ULT3 medical panel PC is shipped with the following components: Quantity Item Image...

  • Page 30: Optional Items

    POC-17C-ULT3 Medical Panel PC Quick Installation Guide Utility CD One Key Recovery CD 2.3 Optional Items The following are optional components which may be separately purchased: Item and Part Number Image 3-in-1 reader (smart card, magnetic card and fingerprint) (P/N: MEDP-CR-R10)
  • Page 31 POC-17C-ULT3 Medical Panel PC Item and Part Number Image Handset (USB interface) and holder (P/N: MEDP-HS-R10) VESA 100 wall mount kit (four M3*6 screws included) (P/N: AFLWK-19B) (P/N: ARM-31-RS) Stand (P/N: STAND-A21-R10) EZ Stand with cabling hole, VESA 100 (P/N: MEDP-EZS-R10)
  • Page 32 POC-17C-ULT3 Medical Panel PC Item and Part Number Image Trusted platform module (assemble-to-order) (P/N: MEDP-TPM-R10) Mifare RFID reader compliant with ISO 14443A, ISO 14443B and ISO 15693 protocols (assemble-to-order) (P/N: MEDP-MF-RFID-R10) Cable cover Page 17...

  • Page 33: Installation

    POC-17C-ULT3 Medical Panel PC Chapter Installation Page 18...

  • Page 34: Anti-Static Precautions

    POC-17C-ULT3 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the POC-17C-ULT3. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the POC-17C-ULT3 is accessed internally, or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 35: Installation And Configuration Steps

    POC-17C-ULT3 Medical Panel PC Anti-static Discharge: If a user open the rear panel of the medical panel PC, to configure the jumpers or plug in added peripheral devices, ground themselves first and wear an anti-static wristband. 3.3 Installation and Configuration Steps The following installation steps must be followed.

  • Page 36: Figure 3-2: Hdd Bracket Retention Screws

    POC-17C-ULT3 Medical Panel PC Remove the HDD cover. The POC-17C-ULT3 equips with two 2.5” HDD bays. Step 2: Select one to install the HDD. Remove the three HDD bracket retention screws (Figure 3-2) and lift the HDD Step 3: bracket off the panel PC.

  • Page 37: Handset Installation (Optional)

    Step 0: 3.5 Handset Installation (Optional) An optional phone handset can be installed on the side of the POC-17C-ULT3 to make VoIP calls. To install the handset and the holder, please follow the instruction below. Locate the two retention screw holes for installing the handset holder on the rear Step 1: panel (Figure 3-5).

  • Page 38: Figure 3-5: Handset Holder Retention Screws

    POC-17C-ULT3 Medical Panel PC Secure the handset holder with the POC-17C-ULT3 by two retention screws Step 2: (M3*8, flat head). Figure 3-5: Handset Holder Retention Screws Plug the handset cord into a USB connector on the bottom panel. Step 3: Place the handset in the holder.

  • Page 39: Using Voip Handset

    POC-17C-ULT3 Medical Panel PC 3.5.1 Using VoIP Handset The VoIP handset is designed for Skype. To use the handset to place or receive a call via Skype, please follow the steps below. Install the Skype program (http://www.skype.com/en/). Step 1: Select Other from the list of the driver CD. Double click the setup file in the...

  • Page 40: Figure 3-8: Handset Driver Installation

    POC-17C-ULT3 Medical Panel PC Figure 3-8: Handset Driver Installation Launch Skype. Press the Allow access button on Skype (Figure 3-9) to allow Step 4: handset API access. Figure 3-9: Allow API Access Page 25...

  • Page 41: Figure 3-10: Manage Program Access To Skype

    POC-17C-ULT3 Medical Panel PC API access can also be managed through Tools Options Advanced settings in Skype. See Figure 3-10. Figure 3-10: Manage Program Access to Skype Page 26...

  • Page 42: Table 3-1: Handset Button Functions

    POC-17C-ULT3 Medical Panel PC The user can now use Skype via the handset. The function description of each Step 5: button on the handset is listed in the following table. Button Function LED indicator: Clear–no call activity Blinking green–incoming call ringing Steady green–active call...

  • Page 43: Handle Installation (Optional)

    POC-17C-ULT3 Medical Panel PC 3.6 Handle Installation (Optional) An optional handle can be installed on the POC-17C-ULT3 for the user to easily adjust the viewing angle and the position of the POC-17C-ULT3. To install the handle, please follow the instruction below.

  • Page 44: Barcode Reader Installation

    Step 2: to insert the barcode reader, the side with barcode reader must face toward the right side of the POC-17C-ULT3 as shown in Figure 3-12. Figure 3-12: Insert Barcode Reader Set Push the barcode reader set all the way down, and then rotate the barcode Step 3: reader anti-clockwise to a proper position (Figure 3-13).

  • Page 45: Figure 3-13: Install And Connect Barcode Reader Set

    POC-17C-ULT3 Medical Panel PC Figure 3-13: Install and Connect Barcode Reader Set Install the driver for the barcode reader by following the instructions described in Step 5: Section 5.12. After driver installation is complete, push the barcode reader button to trigger the Step 6: barcode reader.

  • Page 46: Reading Light

    Figure 3-15: Reading Light 3.7 3-in-1 Combo Reader Installation (Optional) The 3-in-1 combo reader is an optional item for the POC-17C-ULT3. The combo reader combines fingerprint reader, smart card reader (SCR) and magnetic stripe reader (MSR) into one compact device.

  • Page 47: Figure 3-17: Usb Ports On The Side Panel

    POC-17C-ULT3 Medical Panel PC To install the combo reader to the POC-17C-ULT3, please follow the steps below. Open the USB port cover on the side panel of the POC-17C-ULT3. Step 1: Figure 3-17: USB Ports on the Side Panel Align the USB connectors on the reader with the two USB connectors on the Step 2: side panel of the POC-17C-ULT3.

  • Page 48: Using Rfid Reader (Optional)

    Section 5.11.3: Fingerprint Reader Driver 3.8 Using RFID Reader (Optional) The POC-17C-ULT3 may come with an optional RFID reader pre-installed inside the bottom left corner of the front panel (Figure 1-2). To use the RFID reader, follow the steps below.

  • Page 49: Figure 3-21: Irfr Screen

    POC-17C-ULT3 Medical Panel PC The IRFR-100 window appears ( Step 4: F igure 3-21). Figure 3-21: IRFR Screen Select the Find tags tab and click the Run button to enable the RFID reader Step 5: F igure 3-22). Figure 3-22: IRFR – Find Tags...

  • Page 50: Figure 3-23: Irfr - Uids

    POC-17C-ULT3 Medical Panel PC Place an RFID card near the RFID reader on the bottom right corner of the Step 6: front panel (Figure 1-2) then remove it. The card number will be shown in the UIDs column ( F igure 3-23).

  • Page 51: Rs-232/422/485 Serial Port Connection

    Table 3-2: RS-232/422/485 Serial Port Pinouts 3.10 AT/ATX Mode Selection AT or ATX power mode can be used on the POC-17C-ULT3. The selection is made through an AT/ATX switch located on the bottom panel (Figure 3-24). Figure 3-24: AT/ATX Switch Location 3.10.1 AT Power Mode...

  • Page 52: Atx Power Mode

    POC-17C-ULT3 Medical Panel PC 3.10.2 ATX Power Mode With the ATX mode selected, the POC-17C-ULT3 panel PC goes in a standby mode when it is turned off. The panel PC can be easily turned on via network or a power switch in standby mode.

  • Page 53: Figure 3-26: Cable Cover Installation

    POC-17C-ULT3 Medical Panel PC Figure 3-26: Cable Cover Installation To remove the cable cover, push the tabs inwards to release the cover (Figure Step 3: 3-27), and lift the cover from the POC-17C-ULT3. Figure 3-27: Cable Cover Removal Page 38...

  • Page 54: Mounting The System

    POC-17C-ULT3 Medical Panel PC 3.12 Mounting the System The methods of mounting the POC-17C-ULT3 are listed below. Wall mounting Arm mounting Stand mounting The mounting methods are described below. WARNING: Use suitable mounting apparatus and be sure to secure the screws of the mounting apparatus tightly to avoid risk of injury.

  • Page 55: Figure 3-28: Wall-Mounting Bracket

    POC-17C-ULT3 Medical Panel PC Figure 3-28: Wall-mounting Bracket Insert the four monitor mounting screws provided in the wall mount kit into the Step 6: four screw holes on the real panel of the medical panel PC and tighten until the screw shank is secured against the rear panel (Figure 3-29).

  • Page 56: Figure 3-29: Chassis Support Screws

    POC-17C-ULT3 Medical Panel PC Carefully insert the screws through the holes and gently pull the monitor Step 8: downwards until the monitor rests securely in the slotted holes (Figure 3-29). Ensure that all four of the mounting screws fit snugly into their respective slotted holes.

  • Page 57: Arm Mounting

    Figure 3-30: Secure the Panel PC 3.12.2 Arm Mounting The POC-17C-ULT3 is VESA (Video Electronics Standards Association) compliant and can be mounted on an arm with a 75 mm or a 100 mm interface pad. To mount the POC-17C-ULT3 on an arm, please follow the steps below.

  • Page 58: Figure 3-31: Vesa 75 And Vesa 100 Mounting Retention Screw Holes

    When purchasing the arm please ensure that it is VESA compliant and that the arm has a 75 mm or a 100 mm interface pad. If the mounting arm is not VESA compliant it cannot be used to support the POC-17C-ULT3 medical panel PC.

  • Page 59: Stand Mounting

    POC-17C-ULT3 Medical Panel PC Figure 3-32: Arm Mounting 3.12.3 Stand Mounting To mount the POC-17C-ULT3 using the stand mounting kit, please follow the steps below. Locate the VESA mounting screw holes on the rear of the POC-17C-ULT3 Step 1: (Figure 3-31). This is where the bracket will be attached.

  • Page 60: Powering On The System

    Connect the power cord to the power adapter. Connect the other end of the Step 1: power cord to a power source. Connect the power adapter to the power connector of the POC-17C-ULT3. Step 2: Locate the power button on the rear panel.

  • Page 61: Reset The System

    POC-17C-ULT3 Medical Panel PC 3.14 Reset the System The reset button enables user to reboot the system when the system is turned on. The reset button location is shown in Figure 3-34. Press the reset button to reboot the system.

  • Page 62: Bios Setup

    POC-17C-ULT3 Medical Panel PC Chapter BIOS Setup Page 47...

  • Page 63: Introduction

    POC-17C-ULT3 Medical Panel PC 4.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 64: Getting Help

    POC-17C-ULT3 Medical Panel PC Decrease the numeric value or make changes F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F2 key Load previous values. F3 key Load optimized defaults F4 key Save changes and Exit BIOS Esc key Main Menu –...

  • Page 65: Main

    POC-17C-ULT3 Medical Panel PC 4.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc.

  • Page 66: Advanced

    POC-17C-ULT3 Medical Panel PC System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year. System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

  • Page 67: Trusted Computing

    POC-17C-ULT3 Medical Panel PC 4.3.1 Trusted Computing Use the Trusted Computing menu (BIOS Menu 3) to configure settings related to the Trusted Computing Group (TCG) Trusted Platform Module (TPM). Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced...

  • Page 68: Acpi Settings

    POC-17C-ULT3 Medical Panel PC 4.3.2 ACPI Settings The ACPI Settings menu (BIOS Menu 4) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced ACPI Settings Select ACPI sleep state...

  • Page 69: F81866 Super Io Configuration

    POC-17C-ULT3 Medical Panel PC 4.3.3 F81866 Super IO Configuration Use the F81866 Super IO Configuration menu (BIOS Menu 5) to set or change the configurations for the serial ports. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced...

  • Page 70: Serial Port 1 Configuration

    POC-17C-ULT3 Medical Panel PC 4.3.3.1.1 Serial Port 1 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. Disable the serial port Disabled Enable the serial port Enabled EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.

  • Page 71: Serial Port 2 Configuration

    POC-17C-ULT3 Medical Panel PC Configure Serial Port 1 as RS-422 RS422 Configure Serial Port 1 as RS-232 RS232 EFAULT Configure Serial Port 1 as RS-485 RS485 4.3.3.1.2 Serial Port 2 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.

  • Page 72: F81866 H/W Monitor

    POC-17C-ULT3 Medical Panel PC 4.3.4 F81866 H/W Monitor The F81866 H/W Monitor menu (BIOS Menu 7) shows the operating temperatures and voltages. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced PC Health Status Smart Fan Mode Select >Smart Fan Mode Configuration...

  • Page 73: Rtc Wake Settings

    POC-17C-ULT3 Medical Panel PC 4.3.5 RTC Wake Settings The RTC Wake Settings menu (BIOS Menu 8) configures RTC wake event. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced Wake system with Fixed Time [Disabled] Enable or disable System wake on alarm event.

  • Page 74: Serial Port Console Redirection

    POC-17C-ULT3 Medical Panel PC If selected, the following appears with values that Enabled can be selected: *Wake up every day *Wake up date *Wake up hour *Wake up minute *Wake up second After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off.

  • Page 75: Console Redirection Settings

    POC-17C-ULT3 Medical Panel PC Console Redirection [Disabled] Use Console Redirection option to enable or disable the console redirection function. Disabled the console redirection function Disabled EFAULT Enabled the console redirection function Enabled 4.3.6.1 Console Redirection Settings Use the Console Redirection Settings menu ( B IOS Menu 10) to configure console redirection settings of the specified serial port.

  • Page 76: Data Bits [8]

    POC-17C-ULT3 Medical Panel PC The target terminal type is VT-UTF8 VT-UTF8 The target terminal type is ANSI ANSI EFAULT Bits per second [115200] Use the Bits per second option to specify the serial port transmission speed. The speed must match the other side. Long or noisy lines may require lower speeds.

  • Page 77: Legacy Console Redirection Settings

    POC-17C-ULT3 Medical Panel PC Stop Bits [1] Use the Stop Bits option to specify the number of stop bits used to indicate the end of a serial data packet. Communication with slow devices may require more than 1 stop bit.

  • Page 78: Cpu Configuration

    POC-17C-ULT3 Medical Panel PC 4.3.7 CPU Configuration Use the CPU Configuration (BIOS Menu 12) to view detailed CPU specifications and configure the CPU. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced CPU Configuration Enable for Windows XP and Linux (OS optimized for Intel(R) Core(TM) i7-6600U CPU @ 2.60GHz...

  • Page 79: Hyper-Threading [Enabled]

    POC-17C-ULT3 Medical Panel PC Intel VT-x Technology: Indicates if Intel VT-x Technology is supported by the CPU. Intel SMX Technology: Indicates if Intel SMX Technology is supported by the CPU. 64-bit: Indicates if 64-bit OS is supported by the CPU.

  • Page 80: Sata Configuration

    POC-17C-ULT3 Medical Panel PC ® Intel SpeedStep(tm) [Enabled] ® ® Use the Intel SpeedStep™ option to enable or disable the Intel SpeedStep Technology. ® Disables the Intel SpeedStep Technology. Disabled ® Enables the Intel SpeedStep Technology. Enabled EFAULT CPU C State [Disabled] Use the CPU C State option to enable or disable CPU C state.
  • Page 81 POC-17C-ULT3 Medical Panel PC SATA Controller(s) [Enabled] Use the SATA Controller(s) option to configure the SATA controller(s). Enable the on-board SATA controller(s). Enabled EFAULT Disable the on-board SATA controller(s). Disabled SATA Mode Selection [AHCI] Use the SATA Mode Selection option to determine how SATA devices operate.

  • Page 82: Usb Configuration

    POC-17C-ULT3 Medical Panel PC Hot Plug [Disabled] Use the Hot Plug option to enable or disable the SATA device hot plug. Disables the SATA device hot plug. Disabled EFAULT Enables the SATA device hot plug Enabled 4.3.9 USB Configuration Use the USB Configuration menu (BIOS Menu 14) to read USB configuration information and configure the USB settings.

  • Page 83: Iei Feature

    POC-17C-ULT3 Medical Panel PC does not become available until a USB compatible operating system is fully booted with all USB drivers loaded. When this option is enabled, any attached USB mouse or USB keyboard can control the system even when there is no USB driver loaded onto the system.

  • Page 84: Chipset

    POC-17C-ULT3 Medical Panel PC Auto recovery function disabled Disabled EFAULT Auto recovery function enabled Enabled 4.4 Chipset Use the Chipset menu (BIOS Menu 16) to configure the system chipset. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Main...

  • Page 85: System Agent (Sa) Configuration

    POC-17C-ULT3 Medical Panel PC 4.4.1 System Agent (SA) Configuration Use the System Agent (SA) Configuration menu (BIOS Menu 17) to configure the System Agent (SA) parameters. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset VT-d [Disabled] VT-d capability >...

  • Page 86: Graphics Configuration

    POC-17C-ULT3 Medical Panel PC 4.4.1.1 Graphics Configuration Use the Graphics Configuration menu ( B IOS Menu 18) to configure the graphics settings. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset Graphics Configuration Select which of IGFX/PCIE Graphics device should be...

  • Page 87: Dvmt Pre-Allocated [256M]

    POC-17C-ULT3 Medical Panel PC Enable the internal graphics device. The following Enabled EFAULT options/submenu appear with values that can be selected: DVMT Pre-Allocated DVMT Total Gfx Mem LCD Control DVMT Pre-Allocated [256M] Use the DVMT Pre-Allocated option to set the amount of system memory allocated to the integrated graphics processor when the system boots.

  • Page 88: Lcd Control

    POC-17C-ULT3 Medical Panel PC 4.4.1.1.1 LCD Control Use the LCD Control submenu (BIOS Menu 19) to select a display device which will be activated during POST. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset LCD Control Select the Video Device...

  • Page 89: Memory Configuration

    POC-17C-ULT3 Medical Panel PC 4.4.1.2 Memory Configuration Use the Memory Configuration submenu ( B IOS Menu 20) to display the memory information. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset Memory Information Total Memory 4096 MB DIMM1...

  • Page 90: Pci Express Configuration

    POC-17C-ULT3 Medical Panel PC 4.4.2.1 PCI Express Configuration Use the PCI Express Configuration submenu (BIOS Menu 22) to configure the PCI Express slots. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset PCI Express Configuration M_PCIE1 Settings. > M_PCIE1 >...

  • Page 91: Hd Audio Configuration

    POC-17C-ULT3 Medical Panel PC Disables to detect if a non-compliance PCI Disabled EFAULT Express device is connected to the PCI Express slot. Enables to detect if a non-compliance PCI Express Enabled device is connected to the PCI Express slot. 4.4.2.2 HD Audio Configuration Use the HD Audio Configuration submenu (BIOS Menu 23) to configure the High Definition Audio codec.

  • Page 92: Security

    POC-17C-ULT3 Medical Panel PC 4.5 Security Use the Security menu (BIOS Menu 24) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Password Description Set Administrator Password If ONLY the Administrator’s password is set,...

  • Page 93: Boot

    POC-17C-ULT3 Medical Panel PC 4.6 Boot Use the Boot menu (BIOS Menu 25) to configure system boot options. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Boot Configuration Select the keyboard...

  • Page 94: Quiet Boot [Enabled]

    POC-17C-ULT3 Medical Panel PC Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots. Normal POST messages displayed Disabled OEM Logo displayed instead of POST messages Enabled EFAULT UEFI Boot [Disabled] Use the UEFI Boot BIOS option to enable or disable UEFI boot.

  • Page 95: Save & Exit

    POC-17C-ULT3 Medical Panel PC 4.7 Save & Exit Use the Save & Exit menu (BIOS Menu 26) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc.
  • Page 96 POC-17C-ULT3 Medical Panel PC Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults. Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options.

  • Page 97: Driver Installation

    POC-17C-ULT3 Medical Panel PC Chapter Driver Installation Page 82...

  • Page 98: Available Software Drivers

    Visit the IEI website or contact technical support for the latest updates. All the drivers for the POC-17C-ULT3 are on the utility CD that came with the system. To install the drivers, please follow the steps below.

  • Page 99: Intel® Chipset Driver

    POC-17C-ULT3 Medical Panel PC 5.2 Intel® Chipset Driver To install the chipset driver, please follow the steps below. Select Chipset from the list of the driver CD. Step 1: Double click the setup file in the folder. The Intel® Chipset Device Software Step 2: installation wizard appears.

  • Page 100: Intel® Graphics Driver

    POC-17C-ULT3 Medical Panel PC 5.3 Intel® Graphics Driver To install the graphics driver, please follow the steps below. Select VGA from the list of the driver CD. Locate the driver setup file for the Step 1: corresponding operating system. Double click the setup file in the folder. The Intel® Graphics Driver installation...

  • Page 101: Audio Driver

    POC-17C-ULT3 Medical Panel PC 5.4 Audio Driver To install the driver for the speaker and the microphone, please follow the steps below. Select Audio from the list of the driver CD. Step 1: Double click the setup file in the folder. The InstallShield Wizard screen...

  • Page 102: Lan Driver

    POC-17C-ULT3 Medical Panel PC 5.5 LAN Driver To install the LAN driver, please follow the steps below. Select LAN from the list of the driver CD. Locate the driver setup file for the Step 1: corresponding operating system. Double click the setup file in the folder. The Install Wizard screen appears Step 2: F igure 5-4).

  • Page 103: Intel® Management Engine

    POC-17C-ULT3 Medical Panel PC 5.6 Intel® Management Engine To install the Intel® Management Engine Components, please follow the steps below. Select ME from the list of the driver CD. Locate the driver setup file. Step 1: Double click the setup file. The installation wizard window appears ( F igure 5-3).

  • Page 104: Wireless Lan Driver

    POC-17C-ULT3 Medical Panel PC 5.7 Wireless LAN Driver To install the wireless LAN driver, please follow the steps below. Select WIFI from the list of the driver CD. Locate the setup file from the WLAN Step 1: folder. Double click the setup file in the folder, and then select the language for the Step 2: installation.

  • Page 105: Bluetooth Driver

    POC-17C-ULT3 Medical Panel PC 5.8 Bluetooth Driver To install the Bluetooth driver, please follow the steps below. Select WIFI from the list of the driver CD. Locate the setup file from the BT Step 1: folder. Double click the setup file in the folder. The InstallShield Wizard screen appears Step 2: (Figure 5-8).

  • Page 106: Keypad Ap

    POC-17C-ULT3 Medical Panel PC 5.9 Keypad AP The Keypad AP is an OSD control tool developed by IEI. To install the Keypad AP, please follow the steps below. Select Keypad AP from the list of the driver CD. Step 1: Double click the setup file in the folder, and then select Yes from the dialog box.

  • Page 107: Rfid Driver (Optional)

    POC-17C-ULT3 Medical Panel PC 5.10 RFID Driver (Optional) To install the RFID driver, please follow the steps below. Open the Device Manager window. Long press or right click USB <-> Serial. Step 1: Select Update Driver Software from the pop-up window.

  • Page 108: Figure 5-12: Update Driver Software Window

    POC-17C-ULT3 Medical Panel PC Figure 5-12: Update Driver Software Window The following window appears. Press/Click the Browse button to specify the Step 3: RFID driver directory (\Docs\12.Other\ POCP-MF-RFID-R10\RFID\D490). Then, press/click the Next button. Figure 5-13: Browse for Driver Software Window The system starts installing the RFID driver.

  • Page 109: Figure 5-14: Driver Installation Complete Window

    POC-17C-ULT3 Medical Panel PC Figure 5-14: Driver Installation Complete Window Repeat to install the RFID driver again. Step 6: Step 1 ~ Step 5 The Device Manager Window now shows the installed RFID devices. Step 7: Step 0: Figure 5-15: Device Manager Window–RFID Devices...

  • Page 110: 3-In-1 Combo Reader Driver (Optional)

    POC-17C-ULT3 Medical Panel PC 5.11 3-in-1 Combo Reader Driver (Optional) The drivers for the optional 3-in-1 combo reader are all located in the following folder of the driver CD: \Docs\12.Other\POCP-W22A-CR-R10. Please follow the instructions below to install the drivers. 5.11.1 SCR Driver Follow the steps below to install the SCR driver.

  • Page 111: Figure 5-17: Update Driver Software Window

    POC-17C-ULT3 Medical Panel PC Figure 5-17: Update Driver Software Window The following window appears. Press/Click the Browse button to specify the Step 3: SCR driver directory (\Docs\12.Other\POCP-W22A-CR-R10\SCR). Then, press/click the Next button. Figure 5-18: Browse for Driver Software Window Page 96...

  • Page 112: Figure 5-19: Installing Driver Window

    POC-17C-ULT3 Medical Panel PC The following window (Figure 5-19) appears as the driver is installed. Step 4: Figure 5-19: Installing Driver Window After the driver installation process is complete, a confirmation screen appears. Step 5: Click Close to exit the program.

  • Page 113: Figure 5-21: Device Manager Window-Scr Device

    POC-17C-ULT3 Medical Panel PC The Device Manager Window now shows the installed SCR device. Step 6: Step 0: Figure 5-21: Device Manager Window–SCR Device Page 98...

  • Page 114: Msr Driver

    POC-17C-ULT3 Medical Panel PC 5.11.2 MSR Driver Follow the steps below to install the MSR driver. Open the Device Manager window. Long press or right click Singular VCOM Step 1: Card Reader. Select Update Driver Software from the pop-up window.

  • Page 115: Figure 5-23: Update Driver Software Window

    POC-17C-ULT3 Medical Panel PC Figure 5-23: Update Driver Software Window The following window appears. Press/Click the Browse button to specify the Step 3: MSR driver directory (\Docs\12.Other\POCP-W22A-CR-R10\MSR). Then, press/click the Next button. Figure 5-24: Browse for Driver Software Window Page 100...

  • Page 116: Figure 5-25: Installing Driver Window

    POC-17C-ULT3 Medical Panel PC The following window (Figure 5-25) appears as the driver is installed. Step 4: Figure 5-25: Installing Driver Window After the driver installation process is complete, a confirmation screen appears. Step 5: Click Close to exit the program.

  • Page 117: Fingerprint Reader Driver

    POC-17C-ULT3 Medical Panel PC The Device Manager Window now shows the installed MSR device. Step 6: Step 0: Figure 5-27: Device Manager Window–MSR Device 5.11.3 Fingerprint Reader Driver Follow the steps below to install the fingerprint reader driver. Select Other from the list of the driver CD.

  • Page 118: Figure 5-29: Fingerprint Reader Driver Installshield Wizard

    POC-17C-ULT3 Medical Panel PC The Egis ES603 WDM Driver welcome window appears. Step 3: Figure 5-29: Fingerprint Reader Driver InstallShield Wizard Follow the step-by-step instruction of the installation wizard to install the Step 4: fingerprint reader driver. Step 0: Page 103...

  • Page 119: Barcode Reader Driver (Optional)

    POC-17C-ULT3 Medical Panel PC 5.12 Barcode Reader Driver (Optional) To install the barcode reader driver, please follow the steps below. Select Other from the list of the driver CD. Double click the Install_x86.bat file Step 1: (or Install_x64.bat for 64-bit OS) in the POCP-W22A-HD-BR-R10 folder shown...

  • Page 120: Figure 5-32: Device Manager Window-Barcode Reader Device

    POC-17C-ULT3 Medical Panel PC The Device Manager Window now shows the installed barcode reader device. Step 3: Step 0: Figure 5-32: Device Manager Window–Barcode Reader Device Page 105...

  • Page 121: System Maintenance

    POC-17C-ULT3 Medical Panel PC Chapter System Maintenance Page 106...

  • Page 122: System Maintenance Introduction

    POC-17C-ULT3 Medical Panel PC 6.1 System Maintenance Introduction If the components of the POC-17C-ULT3 fail they must be replaced. Please contact the system reseller or vendor to purchase the replacement parts. 6.2 Anti-static Precautions WARNING: Failure to take ESD precautions during the maintenance of the...

  • Page 123: Turn Off The Power

    Before any maintenance procedures are carried out on the system, make sure the system is turned off. 6.4 Removing the Covers To access the POC-17C-ULT3 internally, the HDD cover, the plastic back cover and the internal aluminum cover must be removed. To remove the covers, please follow the steps below.

  • Page 124: Figure 6-2: Back Cover Retention Screws

    Step 3: F igure 6-2). 7 2 1 H Figure 6-2: Back Cover Retention Screws Lift the back cover off the POC-17C-ULT3. Step 4: Remove the 10 retention screws from the internal aluminum cover. ( Step 5: F igure 6-3).

  • Page 125: So-Dimm Replacement

    POC-17C-ULT3 Medical Panel PC 6.5 SO-DIMM Replacement The POC-17C-ULT3 has two SO-DIMM slots, and is pre-installed with one 4 GB DDR4 SO-DIMM. To replace/install the SO-DIMM, please follow the instructions below. Remove the covers. See Section Step 1: 6 .4.

  • Page 126: Pcie Mini Card Installation

    Figure 6-5: SO-DIMM Installation 6.6 PCIe Mini Card Installation The POC-17C-ULT3 equips with a half-size PCIe Mini card slot that supports mSATA. To install a PCIe Mini card into the POC-17C-ULT3, please follow the steps below: Remove the covers. See Section Step 1: 6 .4.

  • Page 127: Reinstalling The Covers

    POC-17C-ULT3 Medical Panel PC Line up the notch on the PCIe Mini card with the notch on the connector. Slide Step 3: the PCIe Mini card into the socket at an angle of about 20º ( F igure 6-7). 7 3 0 H...

  • Page 128: Interface Connectors

    POC-17C-ULT3 Medical Panel PC Chapter Interface Connectors Page 113...

  • Page 129: Peripheral Interface Connectors

    POC-17C-ULT3 Medical Panel PC 7.1 Peripheral Interface Connectors The POC-17C-ULT3 panel PC motherboard comes with a number of peripheral interface connectors and configuration jumpers. The connector locations are shown in F igure 7-1. 9 3 0 H 7 3 2 H The Pin 1 locations of the on-board connectors are also indicated in the diagram below.

  • Page 130: Internal Peripheral Connectors

    POC-17C-ULT3 Medical Panel PC 7.2 Internal Peripheral Connectors Internal peripheral connectors are found on the motherboard and are only accessible when the motherboard is outside of the chassis. The table below shows a list of the peripheral interface connectors on the motherboard. Pinouts of these connectors can be found in the following sections.

  • Page 131: Audio Connector (Audio_Out1)

    POC-17C-ULT3 Medical Panel PC Connector Type Label BT_USB1 CAM_USB1 USB connectors 4-pin wafer RFID_USB1 TOUCH_USB1 Table 7-1: Peripheral Interface Connectors 7.2.1 Audio Connector (AUDIO_OUT1) PIN NO. DESCRIPTION AMP_INL OUT1L OUT1R AMP_INR Table 7-2: Audio Connector (AUDIO_OUT1) Pinouts 7.2.2 Audio Out Connector (AMP_OUT1) PIN NO.

  • Page 132: Debug Connector (Dbg_Port1)

    POC-17C-ULT3 Medical Panel PC 7.2.4 Debug Connector (DBG_PORT1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3S INT_SERIRQ LPC_AD3 LPC_AD2 LPC_AD1 LPC_AD0 FRAME# PLT_RST# PLT_CLK Table 7-5: Debug Connector (DBG_PORT1) Pinouts 7.2.5 Inverter Connector (INVERTER1) PIN NO. DESCRIPTION +12V +12V ENABKL BRIGHTNESS Table 7-6: Inverter Connector (INVERTER1) Pinouts 7.2.6 LVDS Connector (LVDS1)

  • Page 133: Mcu Connector (Hotkey_Cn1)

    POC-17C-ULT3 Medical Panel PC PIN NO. DESCRIPTION PIN NO. DESCRIPTION A3M_L A4M_L A3P_L A4P_L A5M_L A6M_L A5P_L A6P_L CLK2M_L A7M_L CLK2P_L A8P_L PANEL_VCC PANEL_VCC PANEL_VCC PANEL_VCC PANEL_VCC PANEL_VCC Table 7-7: LVDS Connector (LVDS1) Pinouts 7.2.7 MCU Connector (HOTKEY_CN1) PIN NO.

  • Page 134: Mcu Flash Connector (Jp8)

    POC-17C-ULT3 Medical Panel PC 7.2.8 MCU Flash Connector (JP8) PIN NO. DESCRIPTION PIN NO. DESCRIPTION MCLR +3.3A MCU_IR AUTO_CLK ICSPCLK AUTO_DATA ICSPDAT Table 7-9: MCU Flash Connector (JP8) Pinouts 7.2.9 MCU Flash SPI ROM Connector (MCU_SPI1) PIN NO. DESCRIPTION MCU2_MCLR...

  • Page 135: Power Button Connector (Pwr_Btn1)

    POC-17C-ULT3 Medical Panel PC 7.2.11 Power Button Connector (PWR_BTN1) PIN NO. DESCRIPTION PW_BN Table 7-12: Power Button Connector (PWR_BTN1) Pinouts 7.2.12 Power LED Connector (PW_LED1) PIN NO. DESCRIPTION PW_LED +5V SUS PW LED +5V Table 7-13: Power LED Connector (PW_LED1) Pinouts 7.2.13 RS-232 Serial Port Connector (COM2)

  • Page 136: Sata Connectors (Sata1 & Sata2)

    POC-17C-ULT3 Medical Panel PC 7.2.14 SATA Connectors (SATA1 & SATA2) PIN NO. DESCRIPTION Table 7-15: SATA Connectors (SATA1 & SATA2) Pinouts 7.2.15 SPI Flash Connector (JSPI1) PIN NO. DESCRIPTION +V3.3M_SPI_CON SPI_CS#0_CN SPI_SO_SW SPI_CLK_SW SPI_SI_SW Table 7-16: SPI Flash Connector (JSPI1) Pinouts 7.2.16 TPM Connector (TPM1)

  • Page 137: Usb Connector (Bt_Usb1)

    POC-17C-ULT3 Medical Panel PC PIN NO. DESCRIPTION PIN NO. DESCRIPTION SB3V SERIRQ GLKRUN# LPCPD# LDRQ# Table 7-17: TPM Connector (TPM1) Pinouts 7.2.17 USB Connector (BT_USB1) PIN NO. DESCRIPTION HUB_D1F- HUB_D1F+ Table 7-18: USB Connector (BT_USB1) Pinouts 7.2.18 USB Connector (CAM_USB1) PIN NO.

  • Page 138: Usb Connector (Rfid_Usb1)

    D4F- D4F+ Table 7-21: USB Connector (TOUCH_USB1) Pinouts 7.3 External Interface Panel Connectors The table below lists the rear panel connectors on the POC-17C-ULT3 panel PC motherboard. Pinouts of these connectors can be found in the following sections. Connector Type...

  • Page 139: Gbe Connectors (Lan1 & Lan2)

    POC-17C-ULT3 Medical Panel PC Connector Type Label USB 2.0 connectors USB 2.0 port USB20_CN1 USB_CON1 USB 3.0 connectors USB 3.0 port USB_CON2 Table 7-22: Rear Panel Connectors 7.3.1 GbE Connectors (LAN1 & LAN2) PIN NO. DESCRIPTION PIN NO. DESCRIPTION MDI0+...

  • Page 140: Power Connector (Pwr1)

    POC-17C-ULT3 Medical Panel PC HDMI_DATA0#- HDMI_HPD HDMI_CLK+ Table 7-24: HDMI Connector (HDMI1) Pinouts 7.3.3 Power Connector (PWR1) Table 7-25: Power Connector (PWR1) Pinouts 7.3.4 RS-232/422/485 DB-9 Serial Port (COM1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION NDCD1 NDSR1 NSIN1 NRTS1 NSOUT1...

  • Page 141: Usb 3.0 Connectors (Usb_Con1)

    POC-17C-ULT3 Medical Panel PC 7.3.6 USB 3.0 Connectors (USB_CON1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION 2.0_D0- 2.0_D1- 2.0_D0+ 2.0_D1+ 3.0_RX0- 3.0_RX1- 3.0_RX0+ 3.0_RX1+ 3.0_TX0- 3.0_TX1- 3.0_TX0+ 3.0_TX1+ Table 7-28: USB 3.0 Connector (USB_CON12) Pinouts 7.3.7 USB 3.0 Connectors (USB_CON2) PIN NO.

  • Page 142: Preconfigured Jumper Settings

    POC-17C-ULT3 Medical Panel PC 7.4 Preconfigured Jumper Settings CAUTION: The following jumpers are preconfigured for the POC-17C-ULT3. Users should not change these jumpers ( T able 7-30). 7 3 3 H Jumper Name Type Label Flash descriptor security override 2-pin header...

  • Page 143: Lvds Panel Resolution Selection Jumper (Sw1)

    POC-17C-ULT3 Medical Panel PC 7.4.3 LVDS Panel Resolution Selection Jumper (SW1) * ON=0, OFF=1; Single=S, Dual=D SW1 (4-3-2-1) Description 0000 800x600 18bit S (Default) 0001 1024x768 18bit S 0010 1024x768 24bit S 0011 1280x768 18bit S 0100 1280x800 18bit S...

  • Page 144: A Regulatory Compliance

    POC-17C-ULT3 Medical Panel PC Appendix Regulatory Compliance Page 129...
  • Page 145 POC-17C-ULT3 Medical Panel PC DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives: EMC Directive (2004/108/EC, 2014/30/EU) Low-Voltage Directive (2006/95/EC, 2014/35/EU) RoHS II Directive (2011/65/EU, 2015/863/EU) Medical Device Directive 93/42/EEC: EN 60601-1 If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply.
  • Page 146 POC-17C-ULT3 Medical Panel PC Español [Spanish] IEI Integration Corp declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2014/53/EU. Ελληνική [Greek] IEI Integration Corp ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ...
  • Page 147 POC-17C-ULT3 Medical Panel PC Româna [Romanian] IEI Integration Corp declară că acest echipament este in conformitate cu cerinţele esenţiale şi cu celelalte prevederi relevante ale Directivei 2014/53/EU. Slovensko [Slovenian] IEI Integration Corp izjavlja, da je ta opreme v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 2014/53/EU.
  • Page 148 POC-17C-ULT3 Medical Panel PC ROHS STATEMENT The label on the product indicates this product conforms to European (EU) Restriction of Hazardous Substances (RoHS) that set maximum concentration limits on hazardous materials used in electrical and electronic equipment. CHINA ROHS The label on the product indicates the estimated “Environmentally Friendly Use Period”...

  • Page 149: B Safety Precautions

    POC-17C-ULT3 Medical Panel PC Appendix Safety Precautions Page 134...

  • Page 150: Safety Precautions

    POC-17C-ULT3 is opened. Make sure the power is turned off and the power cord is disconnected whenever the POC-17C-ULT3 is being installed, moved or modified. Do not apply voltage levels that exceed the specified voltage range. Doing so may cause fire and/or an electrical shock. Use a power cord that matches the voltage of the power outlet, which has been approved and complies with the safety standard of your particular country.

  • Page 151: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the POC-17C-ULT3. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the POC-17C-ULT3 is opened and any of the electrical components are handled, the following anti-static precautions are strictly adhered to.

  • Page 152: Product Disposal

    POC-17C-ULT3 Medical Panel PC Use an anti-static pad: When configuring or working with an electrical component, place it on an anti-static pad. This reduces the possibility of ESD damage. Only handle the edges of the electrical component: When handling the electrical component, hold the electrical component by its edges.

  • Page 153: Classification

    Not AP or APG Category. B.2 Maintenance and Cleaning Precautions When maintaining or cleaning the POC-17C-ULT3, please follow the guidelines below. WARNING: If you dropped any material or liquid such as water onto the panel PC when cleaning, unplug the power cable immediately and contact your dealer or the nearest service center.

  • Page 154: Maintenance And Cleaning

    In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the POC-17C-ULT3. Cloth – Although paper towels or tissues can be used, a soft, clean piece of cloth is recommended when cleaning the POC-17C-ULT3.

  • Page 155: Cbios Menu Options

    POC-17C-ULT3 Medical Panel PC Appendix BIOS Menu Options Page 140...
  • Page 156 POC-17C-ULT3 Medical Panel PC 　 System Date [xx/xx/xx] ......................2 9 7 H 7 3 4 H 　 System Time [xx:xx:xx] ....................... 2 9 8 H 7 3 5 H 　 Security Device Support [Enable] ..................2 9 9 H 7 3 6 H 　...
  • Page 157 POC-17C-ULT3 Medical Panel PC 　 Primary IGFX Boot Display [VBIOS Default] ..............3 3 1 H 7 6 8 H 　 PCIe Speed [Auto]........................ 3 3 2 H 7 6 9 H 　 Detect Non-Compliance Device [Disabled] ............... 3 3 3 H 7 7 0 H 　...

  • Page 158: D Watchdog Timer

    POC-17C-ULT3 Medical Panel PC Appendix Watchdog Timer Page 143...
  • Page 159 POC-17C-ULT3 Medical Panel PC NOTE: The following discussion applies to DOS. Contact IEI support or visit the IEI website for drivers for other operating systems. The Watchdog Timer is a hardware-based timer that attempts to restart the system when it stops working.
  • Page 160 POC-17C-ULT3 Medical Panel PC NOTE: The Watchdog Timer is activated through software. The software application that activates the Watchdog Timer must also deactivate it when closed. If the Watchdog Timer is not deactivated, the system will automatically restart after the Timer has finished its countdown.

  • Page 161: E Hazardous Materials Disclosure

    POC-17C-ULT3 Medical Panel PC Appendix Hazardous Materials Disclosure Page 146...
  • Page 162 POC-17C-ULT3 Medical Panel PC The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 163 POC-17C-ULT3 Medical Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T 11363-2006 (现由 GB/T 26572-2011 取代) 标准规定的限量要求以下。...

Table of Contents
