IEI Technology POC 965 SERIES User Manual

17''/19'' medical panel pc with intel core 2 duo/ celeron m, touch screen, 802.11 a/b/g/n wi-fi
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

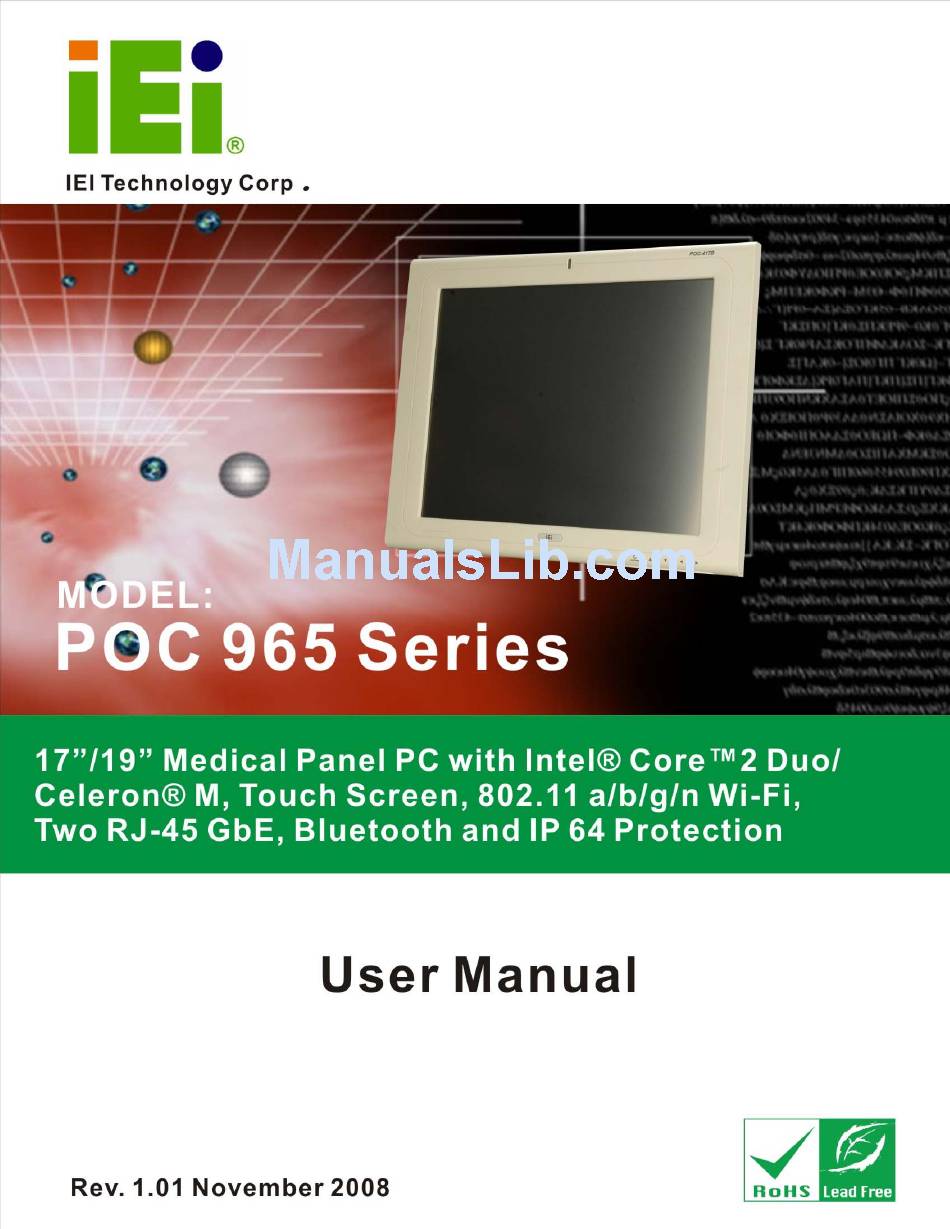

POC 965 Series Medical Panel PC
POC-965 Series Medical Panel PC
Page I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POC 965 SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology POC 965 SERIES

Summary of Contents for IEI Technology POC 965 SERIES

  • Page 1 POC 965 Series Medical Panel PC POC-965 Series Medical Panel PC Page I...
  • Page 2 POC 965 Series Medical Panel PC Revision Date Version Changes Modified the model number 2008-11 1.01 2008-09 1.00 Initial release Page II...
  • Page 3 POC 965 Series Medical Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
  • Page 4 POC 965 Series Medical Panel PC Manual Conventions WARNING! Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. Warnings are easy to recognize. The word “warning” is written as “WARNING,” both capitalized and bold and is followed by text.
  • Page 5 POC 965 Series Medical Panel PC NOTE: These messages inform the reader of essential but non-critical information. These messages should be read carefully as any directions or instructions contained therein can help avoid making mistakes. Notes are easy to recognize. The word “note” is written as “NOTE,”...
  • Page 6 POC 965 Series Medical Panel PC Packing List NOTE: If any of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the POC-965 Series from or contact an IEI sales representative directly.

  • Page 7: Table Of Contents

    POC 965 Series Medical Panel PC Table of Contents INTRODUCTION....................1 1.1 G ....................2 ENERAL VERVIEW 1.1.1 Model Variations ....................3 1.1.2 Standard Features ....................3 1.2 E ....................4 XTERNAL VERVIEW 1.2.1 Front Panel ......................4 1.2.2 Rear Panel ......................5 1.2.3 Bottom Panel......................
  • Page 8 POC 965 Series Medical Panel PC 2.6 G ........................ 17 RAPHICS ® 2.6.1 Intel GME965 Integrated Graphics Media Accelerator 950 ......17 2.6.2 Dual-Display....................18 2.7 A ........................18 UDIO 2.7.1 High Definition Audio Controller ..............18 2.7.2 Stereo Speakers ....................18 2.8 S...
  • Page 9 POC 965 Series Medical Panel PC 4.8.5 VGA Monitor Connection ................39 SYSTEM MAINTENANCE ................41 5.1 I ......................42 NTRODUCTION 5.2 M ................42 OTHERBOARD EPLACEMENT 5.3 I ..............42 NTERNAL LUMINUM OVER EMOVAL 5.4 HDD R ....................43 EPLACEMENT 5.5 M...
  • Page 10 POC 965 Series Medical Panel PC 6.3.8 USB Configuration................... 79 6.3.9 Power Configuration ..................81 6.3.9.1 ACPI Configuration .................. 81 6.3.10 APM Configuration..................82 6.4 PCI/P P........................85 6.5 B ........................88 6.5.1 Boot Settings Configuration................89 6.5.2 Boot Device Priority ..................91 6.6 S...
  • Page 11 POC 965 Series Medical Panel PC B.1 S ................... 146 AFETY RECAUTIONS B.1.1 General Safety Precautions ................146 B.1.2 Anti-static Precautions .................. 147 B.2 M ............147 AINTENANCE AND LEANING RECAUTIONS B.2.1 Maintenance and Cleaning................147 B.2.2 Cleaning Tools ....................148 B.3 ESD P...
  • Page 12 POC 965 Series Medical Panel PC List of Figures Figure 1-1: POC-965 Series Medical Panel PC ............2 Figure 1-2: Front View....................4 Figure 1-3: Rear View....................5 Figure 1-4: Bottom View ....................6 Figure 1-5: Internal Overview..................7 Figure 2-1: POC-417B Dimensions (units in mm) ............11 Figure 2-2: POC-419B Dimensions (units in mm) ............12...
  • Page 13 POC 965 Series Medical Panel PC Figure 4-8: 4-pin Power Mini-DIN Connection............36 Figure 4-9: LAN Connection..................37 Figure 4-10: Serial Device Connector ...............38 Figure 4-11: USB Device Connection................39 Figure 4-12: VGA Connector ..................40 Figure 5-1: Aluminum Back Cover Retention Screws ..........43 Figure 5-2: System Fan Retention Screws ...............44...
  • Page 14 POC 965 Series Medical Panel PC Figure 7-21: Intel® 82566 Welcome Screen............114 Figure 7-22: Intel® 82566 Driver License Agreement ........... 114 Figure 7-23: Intel® 82566 Driver Setup Options............ 115 Figure 7-24: Intel® 82566 Driver Installation Ready Window ......115 Figure 7-25: Intel®...
  • Page 15 POC 965 Series Medical Panel PC Figure 7-53: Bluetooth Driver Complete Installation Screen ....... 134 Figure 7-54: Reboot the Computer ................. 134 Figure 7-55: IAMT Driver Directory................. 135 Figure 7-56: IAMT Driver Installation Icon ............. 136 Figure 7-57: IAMT Welcome Screen ............... 136 Figure 7-58: IAMT License Agreement..............
  • Page 16 POC 965 Series Medical Panel PC List of Tables Table 1-1: Model Variations..................3 Table 1-2: System Specifications ................9 Table 5-1: Clear CMOS Jumper Settings ..............49 Table 5-2: COM1 and COM3 RI and Voltage Settings..........49 Table 5-3: COM3 Mode Selection................49 Table 5-4: COM2 RI and Voltage Selection...............50 Table 5-5: CompactFlash®...

  • Page 17: Introduction

    POC 965 Series Medical Panel PC Chapter Introduction Page 1...

  • Page 18: General Overview

    POC 965 Series Medical Panel PC 1.1 General Overview Figure 1-1: POC-965 Series Medical Panel PC The POC-417B and POC-419B (POC-965 Series) are Intel® Core™2 Duo or Intel® Celeron® M powered flat panel PCs with a rich variety of functions and peripherals. Both POC-965 Series models are designed for easy and simplified integration in to medical applications.

  • Page 19: Model Variations

    POC 965 Series Medical Panel PC 1.1.1 Model Variations The models of POC-965 Series are listed in Table 1-1. POC-417B SATA HDD Memory Wireless -CM550/2GB/80GB 2.0 GHz Intel® 17” 80 GB 2 GB DDR2 Yes Celeron® M (550) 2.2 GHz Intel® Core™2 17”...

  • Page 20: External Overview

    POC 965 Series Medical Panel PC 1.2 External Overview The POC-965 Series is a flat panel PC. The monitor and all internal components are enclosed in an aluminum chassis. An ABS/PC plastic cover surrounds the aluminum chassis. VESA compliant screw holes in the rear panel allow the POC-965 Series to be attached to any VESA compliant mounting.

  • Page 21: Rear Panel

    POC 965 Series Medical Panel PC 1.2.2 Rear Panel The rear panel provides access to retention screw holes that support the wall mounting. Refer to Figure 1-3. Figure 1-3: Rear View 1.2.3 Bottom Panel The bottom panel of the POC-965 Series has the following I/O interfaces (Figure 1-4):...

  • Page 22: Internal Overview

    POC 965 Series Medical Panel PC Figure 1-4: Bottom View 1.3 Internal Overview The POC-965 Series includes the following parts inside the aluminum internal cover. 2.0 GB DDR2 SO-DIMM PIFA antennas Backlight inverter Bluetooth module 80 GB hard drive Two speakers...

  • Page 23: Specifications

    POC 965 Series Medical Panel PC Figure 1-5: Internal Overview 1.4 Specifications 1.4.1 Preinstalled Hardware Components The POC-965 Series medical flat panel PC has the following preinstalled components: 1 x Motherboard 1 x TFT LCD screen 1 x Touch screen panel...

  • Page 24: System Specifications

    POC 965 Series Medical Panel PC The technical specifications for the system, and some of these components, are shown in the sections below. 1.4.2 System Specifications The technical specifications for the POC-965 Series systems are listed in Table 1-2. SPECIFICATION...

  • Page 25: Table 1-2: System Specifications

    POC 965 Series Medical Panel PC SPECIFICATION 17 inch 19 inch LED Functions 1 x Power on/off LED Mounting VESA MIS-D mount for panel, wall, rack, stand and arm mounting Front Panel Color Cool Gray 2C Dimensions 428 x 350 x 76...

  • Page 26: Specifications

    POC 965 Series Medical Panel PC Chapter Specifications Page 10...

  • Page 27: Dimensions

    POC 965 Series Medical Panel PC 2.1 Dimensions 2.1.1 POC-417B Dimensions The dimensions of the POC-417B medical panel PC are shown in Figure 2-1 below. Figure 2-1: POC-417B Dimensions (units in mm) Page 11...

  • Page 28: Poc-419B Dimensions

    POC 965 Series Medical Panel PC 2.1.2 POC-419B Dimensions The dimensions of the POC-419B medical panel PC are shown in Figure 2-1 below. Figure 2-2: POC-419B Dimensions (units in mm) Page 12...

  • Page 29: Intel® Desk-Top Processor Support

    POC 965 Series Medical Panel PC 2.2 Intel® Desk-Top Processor Support A T7500 Intel® Socket P Core™2 Duo or a 550 Intel® Socket P Celeron® M processor is installed in the system. TheT7500 Intel® Core™2 Duo processor has a CPU speed of 2.2 GHz, a 800 MHz front side bus (FSB) and a 4.0 MB L2 cache.

  • Page 30: Motherboard Components

    POC 965 Series Medical Panel PC 2.3 Motherboard Components The following sections describe some of the features on the motherboard. 2.3.1 Memory Support 2.3.1.1 Installed Memory One 200-pin 2.0 GB DDR2 SDRAM SO-DIMM are installed in the POC-965 Series and controlled by the Intel®...

  • Page 31: External Peripheral Interface Connectors

    POC 965 Series Medical Panel PC 2.4 External Peripheral Interface Connectors The following section describes the external peripheral interface connectors on the rear panel of the subsystem. 2.4.1 Serial Port Connectors The POC-965 Series has two serial ports. The COM1 serial port is a RS-232 only port.

  • Page 32: External Usb Connectors

    POC 965 Series Medical Panel PC Figure 2-6: RJ-45 Ethernet Connectors 2.4.3 External USB Connectors There are four USB 2.0 connectors on the bottom panel of the POC-965 Series. All the USB 2.0 connectors are interfaced directly to the USB controllers on the ICH8M Southbridge.

  • Page 33: Series Front Side

    POC 965 Series Medical Panel PC 2.5 POC-965 Series Front Side 2.5.1 Monitor A LCD screen is installed on the front of the POC-965 Series and connected to the LVDS connector on the motherboard. The screen is shown in Figure 2-9 below.

  • Page 34: Dual-Display

    POC 965 Series Medical Panel PC Figure 2-10: VGA Connector 2.6.2 Dual-Display The system supports dual display capabilities. An additional monitor can be connected to the POC-965 Series through the VGA connector described above. 2.7 Audio 2.7.1 High Definition Audio Controller The integrated High Definition Audio compliant audio controller on the Intel®...

  • Page 35: System Power

    POC 965 Series Medical Panel PC Figure 2-12: Stereo Speakers 2.8 System Power 2.8.1 Power Mode The system can be run in the AT power mode or the ATX power mode. Both these power modes are described below. 2.8.1.1 ATX Power Mode (Default) With the ATX mode selected, the POC-965 Series medical panel PC goes in a standby mode when it is turned off.

  • Page 36: At Power Mode

    POC 965 Series Medical Panel PC 2.8.1.2 AT Power Mode With the AT mode selected, the power is controlled by a central power unit rather than a power switch. ThePOC-965 Series medical panel PC turns on automatically when the power is connected. The AT mode is ideal for controlling multiple panel PCs from a central management center.

  • Page 37: Wireless Connections

    POC 965 Series Medical Panel PC 2.9 Wireless Connections The following section describes the wireless modules on the circuit. 2.9.1 USB Bluetooth Module An integrated Bluetooth module is connected to ICH8M chipset through the USB bus. The POC-965 Series Bluetooth module enables wireless communications between the POC-965 Series and various peripheral devices through a Bluetooth network.

  • Page 38: Wireless Ethernet

    POC 965 Series Medical Panel PC 2.9.2 Wireless Ethernet An integrated 802.11 a/b/g/n wireless LAN module and PIFA antenna on the POC-965 Series ensure an uninterrupted wireless connection. PIFA antennas can receive high-quality, uniform signals in any location from all directions without any signal degradation or impedance and are the most efficient antennas on the market.

  • Page 39: Unpacking

    POC 965 Series Medical Panel PC Chapter Unpacking Page 23...

  • Page 40: Unpacking

    POC 965 Series Medical Panel PC 3.1 Unpacking To unpack the flat panel PC, follow the steps below: WARNING! The front side LCD screen has a protective plastic cover stuck to the screen. Only remove the plastic cover after the flat panel PC has been properly installed.

  • Page 41: Packing List

    POC 965 Series Medical Panel PC 3.1.1 Packing List The POC-965 Series medical panel PC is shipped with the following components: Quantity Item Image Standard POC-965 Series medical panel PC Medical grade power adapter Power cord (Europe/USA standard) User manual CD and driver CD...

  • Page 42: Installation

    POC 965 Series Medical Panel PC Chapter Installation Page 26...

  • Page 43: Anti-Static Precautions

    POC 965 Series Medical Panel PC 4.1 Anti-static Precautions WARNING: Failure to take ESD precautions during the maintenance of the POC-965 Series may result in permanent damage to the POC-965 Series and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the POC-965 Series.

  • Page 44: Preinstalled Components

    POC 965 Series Medical Panel PC Mounting: The flat panel PC is a heavy device. When mounting the system onto a rack, panel, wall or arm please make sure that at least two people are assisting with the procedure. Anti-static Discharge: If a user open the rear panel of the flat panel PC, to configure the jumpers or plug in added peripheral devices, ground themselves first and wear and anti-static wristband.

  • Page 45: Cf Card Installation

    POC 965 Series Medical Panel PC Configure the systemStep 0: Step 5: 4.5 CF Card Installation The POC-965 Series has one CompactFlash® Type I/II slot inside the side panel. To install the CF card, follow the instructions below. Remove the retention screws (Figure 4-1) and lift the cover off the flat panel PC.

  • Page 46: At/Atx Mode Selection

    POC 965 Series Medical Panel PC Replace the plastic back cover and fasten the retention screws. Step 4: Step 0: 4.6 AT/ATX Mode Selection AT and ATX power modes can both be used on the POC-965 Series. The selection is made through an AT/ATX switch on the bottom panel (Figure 4-3).

  • Page 47: Mounting The System

    POC 965 Series Medical Panel PC 4.7 Mounting the System WARNING! When mounting the flat panel PC onto an arm, onto the wall or onto a panel, it is better to have more than one person to help with the installation to make sure the panel PC does not fall down and get damaged.

  • Page 48: Figure 4-4: Wall-Mounting Bracket

    POC 965 Series Medical Panel PC Figure 4-4: Wall-mounting Bracket Insert the four monitor mounting screws provided in the wall mounting kit into the Step 6: four screw holes on the real panel of the flat panel PC and tighten until the screw shank is secured against the rear panel (Figure 4-5).

  • Page 49: Figure 4-5: Chassis Support Screws

    POC 965 Series Medical Panel PC Figure 4-5: Chassis Support Screws NOTE: In the diagram below the bracket is already installed on the wall. Secure the panel PC by fastening the retention screw of the wall-mounting Step 9: bracket. (Figure 4-6).Step 0:...

  • Page 50: Arm Mounting

    POC 965 Series Medical Panel PC Figure 4-6: Secure the Panel PC 4.7.2 Arm Mounting The POC-965 Series is VESA (Video Electronics Standards Association) compliant and can be mounted on an arm with a 100 mm interface pad. To mount the POC-965 Series on an arm, please follow the steps below.

  • Page 51: Figure 4-7: Arm Mounting Retention Screw Holes

    POC 965 Series Medical Panel PC NOTE: When purchasing the arm please ensure that it is VESA compliant and that the arm has a 100 mm interface pad. If the mounting arm is not VESA compliant it cannot be used to support the POC-965 Series flat panel PC.

  • Page 52: Bottom Panel Connectors

    POC 965 Series Medical Panel PC 4.8 Bottom Panel Connectors All the external peripheral interface connectors are located at the bottom of the rear panel on the POC-965 Series medical panel PC. 4.8.1 12V DC Power Connection The POC-965 Series has one 4-pin Power Mini-DIN connector on the bottom panel for a medical grade power supply.

  • Page 53: Serial Device Connection

    POC 965 Series Medical Panel PC Figure 4-9: LAN Connection Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN Step 3: cable RJ-45 connector into the onboard RJ-45 connector. Step 0: 4.8.3 Serial Device Connection The POC-965 Series has two single female DB-9 connectors on the bottom panel for a serial device.

  • Page 54: Usb Device Connection

    POC 965 Series Medical Panel PC Figure 4-10: Serial Device Connector Secure the connector. Secure the serial device connector to the external Step 3: interface by tightening the two retention screws on either side of the connector. Step 0: 4.8.4 USB Device Connection There are four external USB 2.0 connectors.

  • Page 55: Vga Monitor Connection

    POC 965 Series Medical Panel PC Figure 4-11: USB Device Connection Insert the device connector. Once aligned, gently insert the USB device Step 3: connector into the onboard connector. Step 0: 4.8.5 VGA Monitor Connection The POC-965 Series has a single female DB-15 connector on the external peripheral interface panel.

  • Page 56: Figure 4-12: Vga Connector

    POC 965 Series Medical Panel PC Once the connectors are properly aligned with the Step 3: Insert the VGA connector. insert the male connector from the VGA screen into the female connector on the POC-965 Series. See Figure 4-12. Figure 4-12: VGA Connector Secure the connector.

  • Page 57: System Maintenance

    POC 965 Series Medical Panel PC Chapter System Maintenance Page 41...

  • Page 58: Introduction

    POC 965 Series Medical Panel PC 5.1 Introduction If the components of the POC-965 Series fail they must be replaced, such as the wireless LAN module or the motherboard. Please contact the system reseller or vendor to purchase the replacement parts. Back cover removal instructions and jumper settings for the POC-965 Series are described below.

  • Page 59: Hdd Replacement

    POC 965 Series Medical Panel PC Wireless LAN module Inverter The internal aluminum back cover of the POC-965 Series must be removed. To remove the aluminum back cover, remove the retention screws indicated in the sections below. Remove the following screws:...

  • Page 60: Figure 5-2: System Fan Retention Screws

    POC 965 Series Medical Panel PC Remove the system fan on the top of the HDD by removing the two retention Step 4: screws (Figure 5-2). Figure 5-2: System Fan Retention Screws Remove the remaining two HDD bracket retention screws (Figure 5-3) and lift Step 5: the HDD bracket off the panel PC.

  • Page 61: Figure 5-4: Hard Drive Retention Screws

    POC 965 Series Medical Panel PC Remove the HDD from the bracket. Remove the four retention screws from the Step 6: bottom of the HDD bracket and lift the HDD off the bracket (Figure 5-4). Figure 5-4: Hard Drive Retention Screws Attach a new hard drive to the hard drive bracket.

  • Page 62: Memory Module Replacement

    POC 965 Series Medical Panel PC Figure 5-5: Hard Drive Installed Replace the aluminum back cover to the chassis. Step 10: Replace the plastic back cover. Step 11: 5.5 Memory Module Replacement The medical panel PC is preinstalled with a DDR2 memory module. If the memory module fails, follow the instructions below to replace the memory module.

  • Page 63: Figure 5-6: So-Dimm Socket Locations

    POC 965 Series Medical Panel PC Figure 5-6: SO-DIMM Socket Locations Remove the DDR2 memory module by pulling both the spring retainer clips Step 15: outward from the socket. Grasp the DDR2 memory module by the edges and carefully pull it out of the Step 16: socket.

  • Page 64: Jumper Settings

    POC 965 Series Medical Panel PC Figure 5-7: DDR2 SO-DIMM Module Installation 5.6 Jumper Settings NOTE: A jumper is a metal bridge that is used to close an electrical circuit. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them.

  • Page 65: Clear Cmos Jumper (J_Cmos1)

    POC 965 Series Medical Panel PC CompactFlash® setup (J4) LCD voltage select (J2) 5.6.1 Clear CMOS Jumper (J_CMOS1) The Clear CMOS jumper setting is used to reset the CMOS to default settings. Description Normal Operation Clear CMOS Setup Table 5-1: Clear CMOS Jumper Settings 5.6.2 COM1 and COM3 RI and Voltage Select (J10)

  • Page 66: Compactflash® Setup (J4)

    POC 965 Series Medical Panel PC Description 12 V Use for RI Table 5-4: COM2 RI and Voltage Selection 5.6.5 CompactFlash® Setup (J4) The Master/Slave selection allows the CompactFlash® slot to be setup as either the IDE master or the IDE slave. If no other IDE device is used in the system, then the setting does not need to be changed.

  • Page 67: Table 5-7: Rs-422 Pinouts (J7)

    POC 965 Series Medical Panel PC RS-422/485 Description RS-422 TX- RS-485 D- RS-422 TX+ RS-485 D+ Table 5-7: RS-422 Pinouts (J7) RS-485 Description Data- Data+ Table 5-8: RS-485 Pinouts (J11) Page 51...

  • Page 68: Ami Bios Setup

    POC 965 Series Medical Panel PC Chapter AMI BIOS Setup Page 52...

  • Page 69: Introduction

    POC 965 Series Medical Panel PC 6.1 Introduction A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.

  • Page 70: Getting Help

    POC 965 Series Medical Panel PC F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F2 /F3 key Change color from total 16 colors. F2 to select color forward. F10 key Save all the CMOS changes, only for Main Menu Table 6-1: BIOS Navigation Keys 6.1.3 Getting Help...

  • Page 71: Main

    POC 965 Series Medical Panel PC 6.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. BIOS Menu 1: Main System Overview The System Overview lists a brief summary of different system components.

  • Page 72: Advanced

    POC 965 Series Medical Panel PC Lists memory size Size: The System Overview field also has two user configurable fields: System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

  • Page 73: Cpu Configuration

    POC 965 Series Medical Panel PC BIOS Menu 2: Advanced 6.3.1 CPU Configuration Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications and configure the CPU. Page 57...

  • Page 74: Menu 3: Cpu Configuration

    POC 965 Series Medical Panel PC BIOS Menu 3: CPU Configuration The CPU Configuration menu (BIOS Menu 3) lists the following CPU details: Manufacturer: Lists the name of the CPU manufacturer Brand String: Lists the brand name of the CPU being used...

  • Page 75: Ide Configuration

    POC 965 Series Medical Panel PC 6.3.2 IDE Configuration Use the IDE Configuration menu (BIOS Menu 4) to change and/or set the configuration of the IDE devices installed in the system. BIOS Menu 4: IDE Configuration ATA/IDE Configurations [Compatible] Use the ATA/IDE Configurations option to configure the ATA/IDE controller.

  • Page 76: Ide Master, Ide Slave

    POC 965 Series Medical Panel PC storage devices. Some legacy OS do not support this mode. Legacy IDE Channels [SATA Only] SATA Only EFAULT SATA Pri., PATA Sec PATA Only IDE Master and IDE Slave When entering setup, BIOS auto detects the presence of IDE devices. BIOS displays the status of the auto detected IDE devices.

  • Page 77: Menu 5: Ide Master And Ide Slave Configuration

    POC 965 Series Medical Panel PC BIOS Menu 5: IDE Master and IDE Slave Configuration Type [Auto] Use the Type BIOS option select the type of device the AMIBIOS attempts to boot from after the Power-On Self-Test (POST) is complete.

  • Page 78: Zip

    POC 965 Series Medical Panel PC IDE disk drives on the specified channel. This option specifies an ATAPI Removable Media ARMD Device. These include, but are not limited to: LS-120 LBA/Large Mode [Auto] Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical Block Addressing).

  • Page 79: Pio Mode [Auto]

    POC 965 Series Medical Panel PC PIO Mode [Auto] Use the PIO Mode option to select the IDE PIO (Programmable I/O) mode program timing cycles between the IDE drive and the programmable IDE controller. As the PIO mode increases, the cycle time decreases.

  • Page 80: Auto]

    POC 965 Series Medical Panel PC Multi Word DMA mode 0 selected with a maximum data MWDMA0 transfer rate of 4.2MBps Multi Word DMA mode 1 selected with a maximum data MWDMA1 transfer rate of 13.3MBps Multi Word DMA mode 2 selected with a maximum data MWDMA2 transfer rate of 16.6MBps...

  • Page 81: Super Io Configuration

    POC 965 Series Medical Panel PC BIOS auto detects HDD SMART support. Auto EFAULT Prevents BIOS from using the HDD SMART feature. Disabled Allows BIOS to use the HDD SMART feature Enabled 32Bit Data Transfer [Enabled] Use the 32Bit Data Transfer BIOS option to enables or disable 32-bit data transfers.

  • Page 82: Serial Port1 Address [3F8/Irq4]

    POC 965 Series Medical Panel PC Serial Port1 Address [3F8/IRQ4] Use the Serial Port1 Address option to select the Serial Port 1 base address. No base address is assigned to Serial Port 1 Disabled Serial Port 1 I/O port address is 3F8 and the interrupt...

  • Page 83: Hardware Health Configuration

    POC 965 Series Medical Panel PC Serial port 3 I/O port address is 2F8 Serial port 3 I/O port address is 3E8 EFAULT Serial port 3 I/O port address is 2E8 Serial Port3 IRQ [10] Use the Serial Port3 IRQ option to select the interrupt address for serial port 3.

  • Page 84: Menu 7: Hardware Health Configuration

    POC 965 Series Medical Panel PC BIOS Menu 7: Hardware Health Configuration FAN Mode Setting [Full On Mode] Use the FAN Mode Setting option to configure the CPU fan or system fans. Fan is on all the time Full On Mode...

  • Page 85: Cpu Temp. Limit Of Off [000]

    POC 965 Series Medical Panel PC When the CPU FAN Mode Setting option is in the PWM Manual Mode, the following parameters can be set. CPU Fan PWM control CPU Temp. Limit of OFF [000] WARNING: Setting this value too high may cause the fan to stop when the CPU is at a high temperature and therefore cause the system to be damaged.

  • Page 86: Cpu Fan Start Pwm [070]

    POC 965 Series Medical Panel PC starts, it rotates using the starting pulse width modulation (PWM) specified in the Fan 3 Start PWM option below. To select a value, select the CPU Temp. Limit of Start option and enter a decimal number between 000 and 127. The temperature range is specified below.

  • Page 87: Cpu Fan Pwm Control [070]

    POC 965 Series Medical Panel PC CPU Fan PWM Control [070] The CPU Fan PWM Control option can only be set if the CPU FAN Mode Setting option is set to Manual Mode. Use the CPU Fan PWM Control option to select PWM duty cycle control.

  • Page 88: Intel Amt Configuration

    POC 965 Series Medical Panel PC 6.3.5 Intel AMT Configuration The Intel AMT Configuration menu (BIOS Menu 8) configures the Intel® Active Management Technology (AMT) options. BIOS Menu 8: Intel AMT Configuration Intel AMT Support [Disabled] Use the Intel AMT Support option to enable or disable the Intel AMT support.

  • Page 89: Menu 9: Me Subsystem Configuration

    POC 965 Series Medical Panel PC BIOS Menu 9: Me Subsystem Configuration BootBlock HECI Message [Enabled] Use the BootBlock HECI Message option to enable or disable HECI message when booting up the system. The HECI message is disabled when booting up the Disabled system.

  • Page 90: End Of Post S5 Heci Message [Enabled]

    POC 965 Series Medical Panel PC The HECI message enabled. Enabled EFAULT End Of Post S5 HECI Message [Enabled] Use the End Of Post S5 HECI Message option to enable or disable HECI message when the system is in the off (S5) state.

  • Page 91: Intel Robson Configuration

    POC 965 Series Medical Panel PC interface of a managed client system, such as BIOS menu, is displayed through the management system. 6.3.6 Intel Robson Configuration The Intel Robson Configuration menu (BIOS Menu 10) allows the Intel® Robson Technology option to be configured.

  • Page 92: Remote Access Configuration

    POC 965 Series Medical Panel PC 6.3.7 Remote Access Configuration Use the Remote Access Configuration menu (BIOS Menu 11) to configure remote access parameters. The Remote Access Configuration is an AMIBIOS feature and allows a remote host running a terminal program to display and configure the BIOS settings.

  • Page 93: Serial Port Number

    POC 965 Series Medical Panel PC Serial Port Number Serial Port Mode Redirection after BIOS POST Terminal Type These configuration options are discussed below. Serial Port Number [COM1] Use the Serial Port Number option allows users to select the serial port used for remote access.

  • Page 94: Redirection After Bios Post [Always]

    POC 965 Series Medical Panel PC 57600 8,n,1 38400 8,n,1 19200 8,n,1 09600 8,n,1 NOTE: Identical baud rate setting musts be set on the host (a management computer running a terminal software) and the slave Redirection After BIOS POST [Always] Use the Redirection After BIOS POST option to specify when console redirection should occur.

  • Page 95: Usb Configuration

    POC 965 Series Medical Panel PC 6.3.8 USB Configuration Use the USB Configuration menu (BIOS Menu 12) to read USB configuration information and configure the USB settings. BIOS Menu 12: USB Configuration USB Configuration The USB Configuration field shows the system USB configuration. The items listed are: Module Version: x.xxxxx.xxxxx...

  • Page 96: Usb 2.0 Controller [Enabled]

    POC 965 Series Medical Panel PC USB function support enabled Enabled EFAULT USB 2.0 Controller [Enabled] Use the USB 2.0 Controller BIOS option to enable or disable the USB 2.0 controller USB 2.0 controller disabled Disabled USB 2.0 controller enabled...

  • Page 97: Power Configuration

    POC 965 Series Medical Panel PC 6.3.9 Power Configuration Use the Power Configuration menu (BIOS Menu 13) configures the Advanced Configuration and Power Interface (ACPI) and Power Management (APM) options. BIOS Menu 13: Power Configuration 6.3.9.1 ACPI Configuration The ACPI Configuration menu (BIOS Menu 8) configures the Advanced Configuration and Power Interface (ACPI) option.

  • Page 98: Apm Configuration

    POC 965 Series Medical Panel PC BIOS Menu 14: ACPI Configuration [Advanced\ Power Configuration] Suspend Mode [S1(POS)] Use the Suspend Mode option to specify the sleep state the system enters when it is not being used. The system enters S1(POS) sleep state. The system...

  • Page 99: Menu 15:Advanced Power Management Configuration

    POC 965 Series Medical Panel PC BIOS Menu 15:Advanced Power Management Configuration Power Button Mode [On/Off] Use the Power Button Mode BIOS to specify how the power button functions. When the power button is pressed the system is either On/Off...

  • Page 100: Resume On Ring [Disabled]

    POC 965 Series Medical Panel PC turns itself on. If it was off, it remains off. Resume on Ring [Disabled] Use the Resume on Ring BIOS option to enable activity on the RI (ring in) modem line to rouse the system from a suspend or standby state. That is, the system will be roused by an incoming call on a modem.

  • Page 101: Pci/Pnp

    POC 965 Series Medical Panel PC After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off. Resume on Keyboard/Mouse [Disabled] Use the Resume on Keyboard/Mouse BIOS option to enable activity on either the keyboard or mouse to rouse the system from a suspend or standby state.

  • Page 102: Menu 16: Pci/Pnp Configuration

    POC 965 Series Medical Panel PC BIOS Menu 16: PCI/PnP Configuration IRQ# Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral device. The specified IRQ is available to be used by Available PCI/PnP devices...

  • Page 103: Dma Channel# [Available]

    POC 965 Series Medical Panel PC IRQ9 IRQ10 IRQ 11 IRQ 14 IRQ 15 DMA Channel# [Available] Use the DMA Channel# option to assign a specific DMA channel to a particular PCI/PnP device. The specified DMA is available to be used by...

  • Page 104: Boot

    POC 965 Series Medical Panel PC 54KB reserved for legacy ISA devices 6.5 Boot Use the Boot menu (BIOS Menu 17) to configure system boot options. BIOS Menu 17: Boot GbE LAN Boot (82566MM) [Disabled] Use the GbE LAN Boot (82566MM) option to enable the Intel® 82566MM GbE controller to boot the system.

  • Page 105: Boot Settings Configuration

    POC 965 Series Medical Panel PC Boot From LAN Support (82573L) [Disabled] Use the BOOT From LAN Support (82573L) option to enable the Intel® 82573L PCIe GbE controller to boot the system. Cannot be booted from a remote system through the...

  • Page 106: Quick Boot [Enabled]

    POC 965 Series Medical Panel PC Quick Boot [Enabled] Use the Quick Boot BIOS option to make the computer speed up the boot process. No POST procedures are skipped Disabled Some POST procedures are skipped to decrease Enabled EFAULT the system boot time Quiet Boot [Disabled] Use the Quiet Boot BIOS option to select the screen display when the system boots.

  • Page 107: Boot Device Priority

    POC 965 Series Medical Panel PC located on the upper left-hand corner of the 10-key pad. The Number Lock LED on the keyboard lights up when the Number Lock is engaged. Allows the Number Lock on the keyboard to be enabled EFAULT automatically when the computer system boots up.

  • Page 108: Security

    POC 965 Series Medical Panel PC BIOS Menu 19: Boot Device Priority Settings 6.6 Security Use the Security menu (BIOS Menu 20) to set system and user passwords. BIOS Menu 20: Security Change Supervisor Password Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed.

  • Page 109: Chipset

    POC 965 Series Medical Panel PC 6.7 Chipset Use the Chipset menu to access the NorthBridge, SouthBridge and ME Subsystem configuration menus. WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 110: Menu 22: Chipset Configuration

    POC 965 Series Medical Panel PC BIOS Menu 22: Chipset Configuration Memory Remap Feature [Enabled] Use the Memory Remap Feature option to allow the overlapped PCI memory above the total physical memory to be remapped. Overlapped PCI memory can be remapped...

  • Page 111: Internal Graphics Mode Select [Enable, 8Mb]

    POC 965 Series Medical Panel PC ISA expansion cards Internal Graphics Mode Select [Enable, 8MB] Use the Internal Graphic Mode Select option to specify the amount of system memory that can be used by the Internal graphics device. Disable 1MB of memory used by internal graphics device...

  • Page 112: South Bridge Configuration

    POC 965 Series Medical Panel PC 6.7.2 South Bridge Configuration The South Bridge Configuration menu (BIOS Menu 23) allows the Southbridge chipset to be configured. BIOS Menu 23:Southbridge Chipset Configuration HDA Controller [Enabled] Use the HDA Controller option to enable the Southbridge high definition audio controller.

  • Page 113: Exit

    POC 965 Series Medical Panel PC The system will not communicate with a remote Disabled management server. The Alert Standard Format (ASF) controller is activated Enabled EFAULT and can communicate with a remote management server. 6.8 Exit Use the Exit menu (BIOS Menu 24) to load default BIOS values, optimal failsafe values and to save configuration changes.

  • Page 114: Discard Changes And Exit

    POC 965 Series Medical Panel PC Discard Changes and Exit Use the Discard Changes and Exit option to exit the BIOS configuration setup program without saving the changes made to the system. Discard Changes Use the Discard Changes option to discard the changes and remain in the BIOS configuration setup program.

  • Page 115: Software Drivers

    POC 965 Series Medical Panel PC Chapter Software Drivers Page 99...

  • Page 116: Available Software Drivers

    POC 965 Series Medical Panel PC 7.1 Available Software Drivers NOTE: The content of the CD may vary throughout the life cycle of the product and is subject to change without prior notice. Visit the IEI website or contact technical support for the latest updates.

  • Page 117: Figure 7-1: Introduction Screen

    POC 965 Series Medical Panel PC (where X:\ is the system CD drive) to access the IEI Driver CD main menu. The driver main menu appears (Figure 7-1). Step 2: Figure 7-1: Introduction Screen Click POC-965 Series. Step 3: A new screen with a list of available models appears (Figure 7-2). Select Step 4: POC-417B-965 Driver or POC-419B-965 Driver.

  • Page 118: Figure 7-2: Available Models

    POC 965 Series Medical Panel PC Figure 7-2: Available Models A new screen with a list of available drivers appears (Figure 7-3). Step 5: Figure 7-3: Available Drivers Select the driver to install from the list in Figure 7-3. Detailed driver installation Step 6: instructions follow below.

  • Page 119: Intel® Chipset Driver

    POC 965 Series Medical Panel PC 7.3 Intel® Chipset Driver To install the Intel® chipset driver, please follow the steps below. Select Chipset from the list in Figure 7-3. Step 1: The window shown in Figure 7-4 appears. Step 2: Figure 7-4: Intel®...

  • Page 120: Figure 7-5: Intel® Package Manager

    POC 965 Series Medical Panel PC Figure 7-5: Intel® Package Manager The Intel® Setup Welcome screen. See Figure 7-6. Step 5: Figure 7-6: Intel® Setup Welcome Screen Click N to continue. Step 6: The Intel® license agreement in appears. Step 7:...

  • Page 121: Figure 7-7: Intel® Chipset Driver License Agreement

    POC 965 Series Medical Panel PC Figure 7-7: Intel® Chipset Driver License Agreement Accept the terms and conditions by clicking Y Step 8: The Readme file in Figure 7-8 appears. Step 9: Figure 7-8: Readme File Click N to continue.

  • Page 122: Intel® Graphics Media Accelerator Driver

    POC 965 Series Medical Panel PC The driver is then installed. Step 11: When the installation process is complete, the Setup Complete screen appears. Step 12: See Figure 7-9. Figure 7-9: Intel® Chipset Driver Complete Installation Screen To complete the chipset driver installation, click F...

  • Page 123: Figure 7-10: Select The Operating System

    POC 965 Series Medical Panel PC Figure 7-10: Select the Operating System Click on the VGA driver installation icon shown in Figure 7-10 according to the Step 3: operating system of the system. The Readme information file shown in Figure 7-11 appears.

  • Page 124: Figure 7-12: Gma Driver File Extraction

    POC 965 Series Medical Panel PC Click N to extract the GMA driver files. See Figure 7-12. Step 5: Figure 7-12: GMA Driver File Extraction The welcome screen shown in Figure 7-13 appears. Step 6: Figure 7-13: GMA Driver Installation Welcome Screen...

  • Page 125: Figure 7-14: Gma Driver License Agreement

    POC 965 Series Medical Panel PC To continue the installation process, click N Step 7: The license agreement in Figure 7-14 appears. Step 8: Figure 7-14: GMA Driver License Agreement Click the Y in Figure 7-14 to continue. Step 9: The installation notice shown in Figure 7-15 appears.

  • Page 126: Intel® 82566 Gigabit Lan Connect Device Driver

    POC 965 Series Medical Panel PC Figure 7-16: GMA Driver Installation Complete After selecting when to restart the computer in Figure 7-16, click F Step 12: Step 0: INISH 7.5 Intel® 82566 Gigabit LAN Connect Device Driver To install the Intel® 82566 Gigabit LAN connect device driver, please follow the steps below.

  • Page 127: Figure 7-17: Intel® 82566 Operating System

    POC 965 Series Medical Panel PC Figure 7-17: Intel® 82566 Operating System Select the Operating System in Figure 7-17. Step 3: The window in Figure 7-18appears. Step 4: In Figure 7-18 select the operating system type installed on the system.

  • Page 128: Figure 7-18: Select Operating System Type

    POC 965 Series Medical Panel PC Figure 7-18: Select Operating System Type The window in Figure 7-19 appears. Step 6: Figure 7-19: Driver Directory Click on the directory icon in Figure 7-19. Step 7: Page 112...

  • Page 129: Figure 7-20: Intel® 82566 Device Driver Startup Icon

    POC 965 Series Medical Panel PC A window containing the Intel® 82566 driver startup icon appears. See Figure Step 8: 7-20. Figure 7-20: Intel® 82566 Device Driver Startup Icon Double click the Intel® 82566 driver startup icon in Figure 7-20.

  • Page 130: Figure 7-21: Intel® 82566 Welcome Screen

    POC 965 Series Medical Panel PC Figure 7-21: Intel® 82566 Welcome Screen The license agreement in Figure 7-22 appears. Step 13: Figure 7-22: Intel® 82566 Driver License Agreement Accept the conditions of the license agreement and click N to continue.

  • Page 131: Figure 7-23: Intel® 82566 Driver Setup Options

    POC 965 Series Medical Panel PC Figure 7-23: Intel® 82566 Driver Setup Options Select the required installation configuration in Figure 7-23 and click N Step 16: continue. The Ready to Install the Program window in Figure 7-24 appears. Step 17: Figure 7-24: Intel®...

  • Page 132: Gigabit Ethernet Controller Driver

    POC 965 Series Medical Panel PC Figure 7-25: Intel® 82566 Driver Installation Progress When the installation is finished. Click F in the termination screen. Step 20: Step 0: INISH 7.6 Gigabit Ethernet Controller Driver To install the GbE controller driver, please follow the steps below.

  • Page 133: Figure 7-26: Windows Control Panel

    POC 965 Series Medical Panel PC Figure 7-26: Windows Control Panel Double-click the System icon (Figure 7-27). Step 2: Page 117...

  • Page 134: Figure 7-27: System Icon

    POC 965 Series Medical Panel PC Figure 7-27: System Icon Click the Device Manager tab (Figure 7-28). Step 3: Page 118...

  • Page 135: Figure 7-28: Device Manager Tab

    POC 965 Series Medical Panel PC Figure 7-28: Device Manager Tab A list of system hardware devices appears (Figure 7-29). Step 4: Page 119...

  • Page 136: Figure 7-29: Device Manager List

    POC 965 Series Medical Panel PC Figure 7-29: Device Manager List Double-click the listed device that has question marks next to it (this means Step 5: Windows does not recognize the device). The Device Driver Wizard appears (Figure 7-30). Step 6:...

  • Page 137: Figure 7-30: Search For Suitable Driver

    POC 965 Series Medical Panel PC Figure 7-30: Search for Suitable Driver Select “Search for a suitable driver for my device (recommended),” and click Step 7: to continue. Select “Specify a Location” in the Locate Driver Files window (Figure 7-31).

  • Page 138: Realtek Hd Audio Driver (Alc883) Installation

    POC 965 Series Medical Panel PC Figure 7-32: Location Browsing Window Select the proper OS folder under the “X:\3.LAN” directory in the Locate File Step 11: window, where “X:\” is the system CD drive. Select a proper operating system folder for LAN driver installation.Step 0:...

  • Page 139: Driver Installation

    POC 965 Series Medical Panel PC 7.7.2 Driver Installation To install the audio driver please follow the steps below. Select Audio from the list in Figure 7-3. Step 1: A new window opens (Figure 7-33). Step 2: Figure 7-33: Select the Audio Driver Installation Icon...

  • Page 140: Figure 7-35: Preparing Setup Screen

    POC 965 Series Medical Panel PC Figure 7-35: Preparing Setup Screen Once initialized, the InstallShield Wizard welcome screen appears Step 6: (Figure 7-36). Figure 7-36: InstallShield Wizard Welcome Screen Click N to continue the installation. Step 7: InstallShield starts to install the new software as shown in Figure 7-37.

  • Page 141: Figure 7-37: Audio Driver Software Configuration

    POC 965 Series Medical Panel PC Figure 7-37: Audio Driver Software Configuration The Installation Wizard updates the system as shown in Figure 7-38. Step 9: Figure 7-38: Installation Wizard Updates the System After the driver installation process is complete, a confirmation screen appears Step 10: (Figure 7-39).

  • Page 142: Touch Screen Driver

    POC 965 Series Medical Panel PC Figure 7-39: Restart the Computer The confirmation screen offers the option of restarting the computer now or later. Step 11: For the settings to take effect, the computer must be restarted. Click F INISH restart the computer.

  • Page 143: Figure 7-40: Touch Screen Driver Icon

    POC 965 Series Medical Panel PC Figure 7-40: Touch Screen Driver Icon A welcome screen appears (Figure 7-41). To continue the installation process Step 3: click N Figure 7-41: Welcome Screen The license agreement shown in Figure 7-42 appears. Agree to the license by Step 4: selecting “I accept the terms in the license agreement”.

  • Page 144: Figure 7-42: License Agreement

    POC 965 Series Medical Panel PC Figure 7-42: License Agreement Click N and the Installshield Wizard is ready to install the program (Figure Step 5: 7-43). Figure 7-43: Ready to Install the Program Click I to continue. The Installing PenMount DMC9000 screen appears...

  • Page 145: Figure 7-44: Installing Penmount Dmc9000

    POC 965 Series Medical Panel PC Figure 7-44: Installing PenMount DMC9000 The user is then prompted to select to restart the computer now or later (Figure Step 7: 7-45). For the settings to take effect, the computer must be restarted. Click Yes to restart the computer.

  • Page 146: Bluetooth Driver

    POC 965 Series Medical Panel PC 7.9 Bluetooth Driver To install the Bluetooth software driver, please follow the steps below. Select Bluetooth from the list in Figure 7-3. Step 8: A new window opens (Figure 7-46). Click the Setup.exe to install the touch Step 9: screen driver.

  • Page 147: Figure 7-47: Welcome Screen

    POC 965 Series Medical Panel PC Figure 7-47: Welcome Screen The license agreement shown in Figure 7-48 appears. Agree to the license by Step 11: selecting “I accept the terms in the license agreement”. Figure 7-48: License Agreement The Custom Settins screen in Figure 7-49 appears next.

  • Page 148: Figure 7-49: Bluetooth Driver Setup Options

    POC 965 Series Medical Panel PC Figure 7-49: Bluetooth Driver Setup Options Select the required installation configuration in Figure 7-49 and click N Step 13: continue. The Destination Folder screen in Figure 7-50 appears next. Confirm the Step 14: destination folder to install the Bluetooth driver.

  • Page 149: Figure 7-51: Ready To Install The Program

    POC 965 Series Medical Panel PC Click N and the Installshield Wizard is ready to install the program (Figure Step 15: 7-51). Figure 7-51: Ready to Install the Program Click I to continue. The Installing BlueSoleil screen appears as the...

  • Page 150: Figure 7-53: Bluetooth Driver Complete Installation Screen

    POC 965 Series Medical Panel PC Figure 7-53: Bluetooth Driver Complete Installation Screen To complete the chipset driver installation, click F . The user is then Step 18: INISH prompted to select to restart the computer now or later (Figure 7-54). For the settings to take effect, the computer must be restarted.

  • Page 151: Intel® Active Management Technology Driver Installation

    POC 965 Series Medical Panel PC 7.10 Intel® Active Management Technology Driver Installation To install the Intel® Active Management Technology (IAMT) driver, please follow the steps below: Select iAMT from the list in Figure 7-3. Step 19: The screen in Figure 7-55 appears.

  • Page 152: Figure 7-56: Iamt Driver Installation Icon

    POC 965 Series Medical Panel PC Figure 7-56: IAMT Driver Installation Icon Double click the setup icon in Figure 7-56. Step 22: The window in Figure 7-57 appears. Step 23: Figure 7-57: IAMT Welcome Screen Click N to continue. The License Agreement in Figure 7-58 appears.

  • Page 153: Figure 7-58: Iamt License Agreement

    POC 965 Series Medical Panel PC Figure 7-58: IAMT License Agreement Agree to the terms and conditions in the license agreement by clicking Y Step 25: The IAMT Readme file in Figure 7-59 appears Step 26: Figure 7-59: IAMT Readme File Click N to continue.

  • Page 154: Figure 7-60: Iamt Setup Operations

    POC 965 Series Medical Panel PC Setup operations are performed. See Figure 7-60. Step 28: Figure 7-60: IAMT Setup Operations When the Setup Operations in Figure 7-60 are complete, the window in Figure Step 29: 7-61 appears. Figure 7-61: Completed Installation Click F to complete the IAMT installation.

  • Page 155: Figure 7-62: Iamt Driver Directory

    POC 965 Series Medical Panel PC Figure 7-62: IAMT Driver Directory Click on the HECI directory icon. The window in Figure 7-63 appears. Step 32: Figure 7-63: HECI Driver Installation Icon Double click the setup icon in Figure 7-63. Step 33: Follow the step-by-step installation process to install the HECI driver.

  • Page 156: System Specifications

    POC 965 Series Medical Panel PC Step 0: Appendix System Specifications Page 140...

  • Page 157: Motherboard Specifications

    POC 965 Series Medical Panel PC A.1 Motherboard Specifications The POC-965 Series come with an AFLMB-9652 motherboard pre-installed. The technical specifications of the motherboard are listed in Table 7-1. Specification AFLMB-9652 2.0 GHz Intel® Celeron M 550/2.2 GHz Intel® Core™2 Duo T7500 System Chipset Intel®...

  • Page 158: Flat Panel Screen Specifications

    POC 965 Series Medical Panel PC A.2 Flat Panel Screen Specifications The POC-965 Series come with a TFT LCD monitor at the front of the flat panel PC. The specifications for the LCD monitor are shown in Table 7-2 below.

  • Page 159: Touch Screen Specifications

    POC 965 Series Medical Panel PC A.3 Touch Screen Specifications The POC-965 Series come with an analog resistive type touch panel. Table 7-3 lists the touch panel specifications. SPECIFICATION 17 inch 19 inch Control Board Chipset on Board the AFLMB-9652-R10 (DMC9000)

  • Page 160: Wireless Lan Module

    POC 965 Series Medical Panel PC Specification Bluetooth Module Frequency Band 2.402 GHz ~ 2.480 GHz unlicensed ISM band Modulation Method GFSK for 1 Mbps π/4-DQPSK for 2 Mbps 8-DPSK for 3 Mbps Spread Spectrum FHSS (Frequency Hopping Spread Spectrum)

  • Page 161: Bsafety Precautions

    POC 965 Series Medical Panel PC Appendix Safety Precautions Page 145...

  • Page 162: Safety Precautions

    POC 965 Series Medical Panel PC WARNING: The precautions outlined in this chapter should be strictly followed. Failure to follow these precautions may result in permanent damage to the POC-965 Series. B.1 Safety Precautions Please follow the safety precautions outlined in the sections that follow: B.1.1 General Safety Precautions...

  • Page 163: Anti-Static Precautions

    POC 965 Series Medical Panel PC B.1.2 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the POC-965 Series may result in permanent damage to the POC-965 Series and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the POC-965 Series.

  • Page 164: Cleaning Tools

    POC 965 Series Medical Panel PC components. To clean the LCD panel, gently wipe it with a piece of soft dry cloth or a slightly moistened cloth. The interior of the POC-965 Series does not require cleaning. Keep fluids away from the POC-965 Series interior.

  • Page 165: Esd Precautions

    POC 965 Series Medical Panel PC B.3 ESD Precautions Observe all conventional anti-ESD methods while handling the components contained within the LCD should the need arise for adding a functionality. The use of a grounded wrist strap and an anti-static work pad is recommended. Avoid dust and debris or other static-accumulating materials in the work area.

  • Page 166: Ul 60601-1 And Can/Csa C22.2 No. 601.1

    POC 965 Series Medical Panel PC B.5 UL 60601-1 AND CAN/CSA C22.2 NO. 601.1 Authentication sign of Standard Inspection Bureau for U.S.A. Complies with UL 60601-1 AND CAN/CSA C22.2 NO. 601.1. B.6 EN60601-1-2, The LCD monitor complies with the EN60601-1, EN60601-2 of related European standards.
  • Page 167 POC 965 Series Medical Panel PC Page 151...

  • Page 168: Cbios Configuration Options

    POC 965 Series Medical Panel PC Appendix BIOS Configuration Options Page 152...

  • Page 169: O Ptions

    POC 965 Series Medical Panel PC C.1 BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter 6. Menu 1: Main 　 System Overview ....................55 　 System Time [xx:xx:xx] ..................56 　 System Date [xx/xx/xx] ..................56 Menu 2: Advanced.......................57 Menu 3: CPU Configuration ..................58...
  • Page 170 POC 965 Series Medical Panel PC Menu 7: Hardware Health Configuration ..............68 　 FAN Mode Setting [Full On Mode]................68 　 CPU Temp. Limit of OFF [000] ................69 　 CPU Temp. Limit of Start [020] ................69 　 CPU Fan Start PWM [070] ..................70 　...
  • Page 171 POC 965 Series Medical Panel PC 　 USB Devices Enabled....................79 　 USB Function [Enabled]..................79 　 USB 2.0 Controller [Enabled]................80 　 Legacy USB Support [Enabled]................80 　 USB2.0 Controller Mode [HiSpeed]..............80 Menu 13: Power Configuration ..................81 Menu 14: ACPI Configuration [Advanced\ Power Configuration] ......82 　...
  • Page 172 POC 965 Series Medical Panel PC 　 Change Supervisor Password................92 　 Change User Password..................92 Menu 21: Chipset Configuration................93 Menu 22: Chipset Configuration................94 　 Memory Remap Feature [Enabled]...............94 　 Memory Hole [Disabled]..................94 　 Internal Graphics Mode Select [Enable, 8MB] ............95 　 Boot Display Device [Auto]...................95 　...

  • Page 173: Dwatchdog Timer

    POC 965 Series Medical Panel PC Appendix Watchdog Timer Page 157...
  • Page 174 POC 965 Series Medical Panel PC NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.

  • Page 175: Example Program

    POC 965 Series Medical Panel PC NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BX, 05 ;time-out value is 5 seconds ;...

  • Page 176: Ehazardous Materials Disclosure
