CET PMC-350 Quick Start Manual

Package Contents

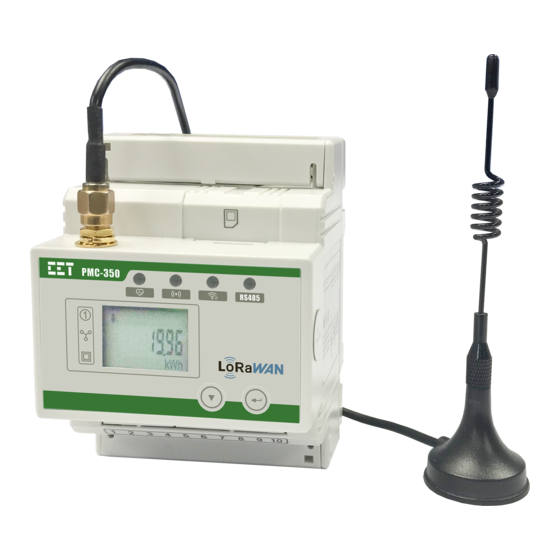

Meter Overview
Serial Number Label
Using the Front Panel Buttons
<▼>
Data Display Mode
Setup Configuration Mode
<↩>
Setup Configuration Mode
Mounting the Meter
The PMC-350-C should be installed in a dry environment with no dust and
kept away from heat, radiation and electrical noise source.
 Before installation, make sure that the DIN Rail is already in place
 Move the DIN Rail locking clip at the back of the PMC-350-C
downward to the "unlock" position
 Align the top of the mounting channel at the back of the PMC-350-C
at an angle against the top of the DIN rail as shown in figure right
 Rotate the bottom of the PMC-350-C towards the back while
applying a slight pressure to make sure that the device is completely
and securely fixed on to the DIN Rail
 Push the DIN Rail locking clip upward to the "lock" position to secure
the PMC-350-C on to the DIN Rail

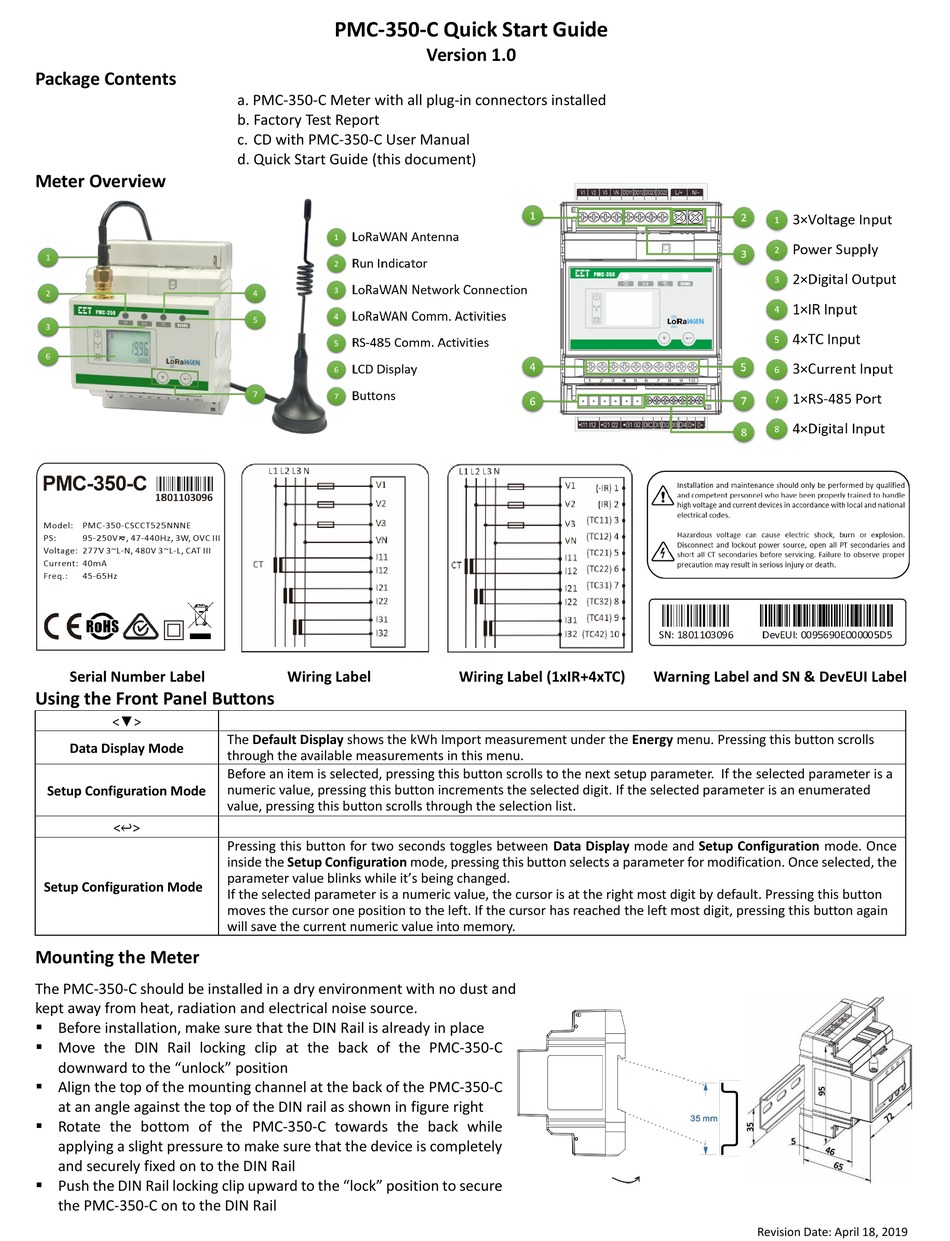

PMC-350-C Quick Start Guide
a. PMC-350-C Meter with all plug-in connectors installed
b. Factory Test Report
c. CD with PMC-350-C User Manual
d. Quick Start Guide (this document)
Wiring Label
The Default Display shows the kWh Import measurement under the Energy menu. Pressing this button scrolls
through the available measurements in this menu.
Before an item is selected, pressing this button scrolls to the next setup parameter. If the selected parameter is a
numeric value, pressing this button increments the selected digit. If the selected parameter is an enumerated
value, pressing this button scrolls through the selection list.
Pressing this button for two seconds toggles between Data Display mode and Setup Configuration mode. Once
inside the Setup Configuration mode, pressing this button selects a parameter for modification. Once selected, the
parameter value blinks while it's being changed.
If the selected parameter is a numeric value, the cursor is at the right most digit by default. Pressing this button
moves the cursor one position to the left. If the cursor has reached the left most digit, pressing this button again
will save the current numeric value into memory.
Version 1.0
Wiring Label (1xIR+4xTC) Warning Label and SN & DevEUI Label
Revision Date: April 18, 2019
