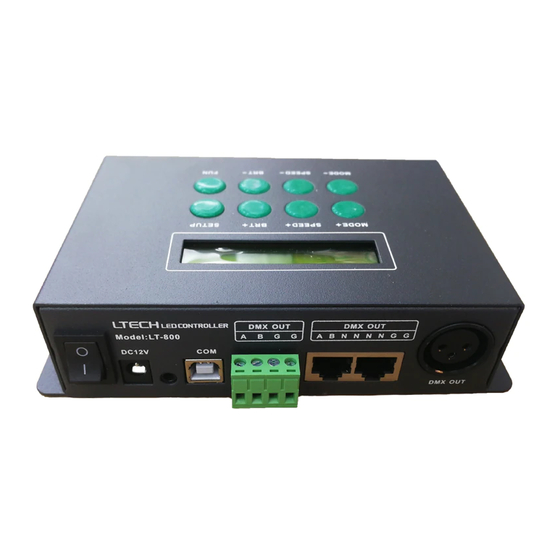

LT-800 DMX512 controller is the output signal of international standard DMX/1990.It not only can control all the LED lights in
the market as long as can receive the standard DMX signal, but also can work with our DMX Decoder to control general LED
lights without DMX512.
LT-800 DMX512 Controller is easy to operate with a LCD screen. Available with wireless control and keying control on the
changing modes, speed and brightness, automatic timing and more than 30 modes for your choices, Supporting pause in
Changing modes and very easy to keep the specific color.
1.

Product parameter

LT-800
Working Voltage
DC12 (with an adapter to convert AC100-240V to DC12V)
<2W
Power Consumption
Output Signal
DMX512/1990
Output Loop
1 Port
Transmission Speed
250Kbps
Function Mode
39 modes
Control Quantity
512 DMX channels( 170 pixels)
Working Temperature
-30℃~65℃
Product Dimensions
L163×W108×H40mm
Package Dimensions
L260×W132×H46mm
Weight(G.W)
760g
ZHUHAI LTECH ELECTRONIC TECHNOLOGY CO., LTD.
LT-800 DMX controller
LT-800
RoHS
warranty
3 years
COMPLIANT
1
Tel: +86 756 620 8823
LTECH
2.

Function features

1. With LCD screen, easy to operate in showing all functions.
2. Built-in perpetual calendar, real-time display system clock, can be set up to play different programs in any time,
Monday to Sunday or holiday.
3. 30 lighting modes. Such as, 7 color, skipping synchronism, smooth synchronism, color flow, color chasing, color
smooth and flow and Meteor shower trailing, etc.
4. Multilevel changing speed, brightness and RGB grey scale adjustment for your choices.
5. Feel free to define many changing modes into a step, 8 independent cycle steps maximum.
6. Output with international Standard signal DMX512/1990, can control 512 DMX channels (170 full color RGB pixels)
7. Suppor t different output ports like standard XLR-3, RJ45 and European terminals. Etc.
8. with the functions of anti-interference and automatic breakdown recovery.

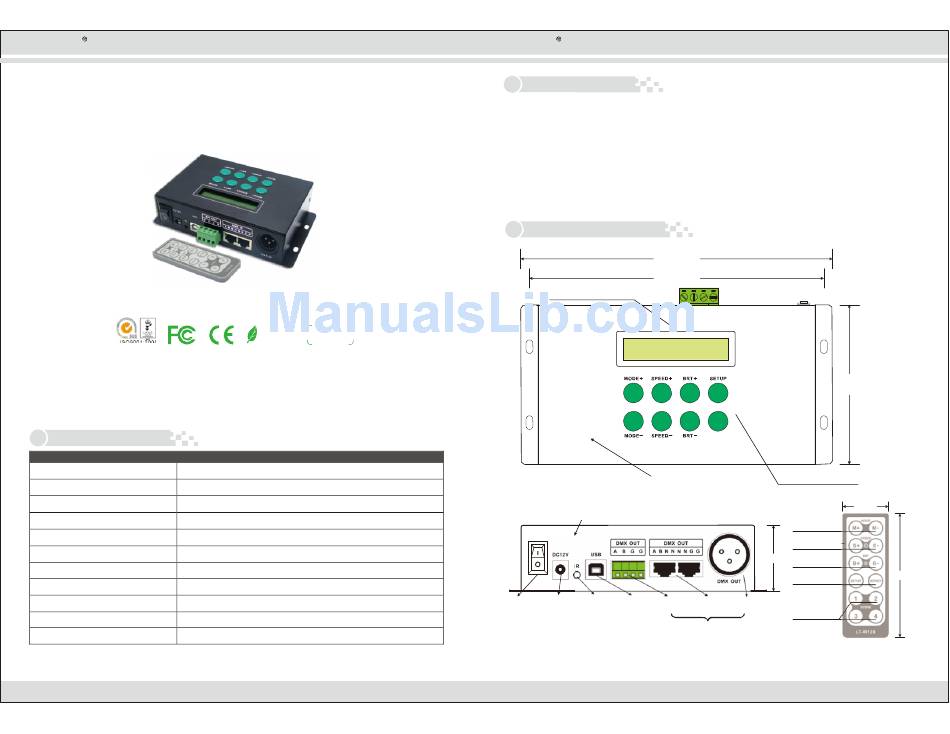

Construction drawing

3.
163mm
153mm
LCD screen
LT- 800
2012-01-01
Upper surface
Front
Power
Power
Infrared
Green
Manufacturers
switch
input
interface
spare USB
terminal
interface
Provide three kinds of interface,
connect one of them
Fax: +86 756 620 8833
LT@LTECHONLINE.COM
LT-800 DMX controller
WELCOME
12 : 00
108mm
HOT KEY
Control button
33mm
Mode+/Mode
Speed +/Speed –
40mm
BRT +/ BRT –
Setup
RJ45
XLR-3
interface
DIY Scene
IR remote control
2
WWW.LTECHONLINE.COM
85mm
