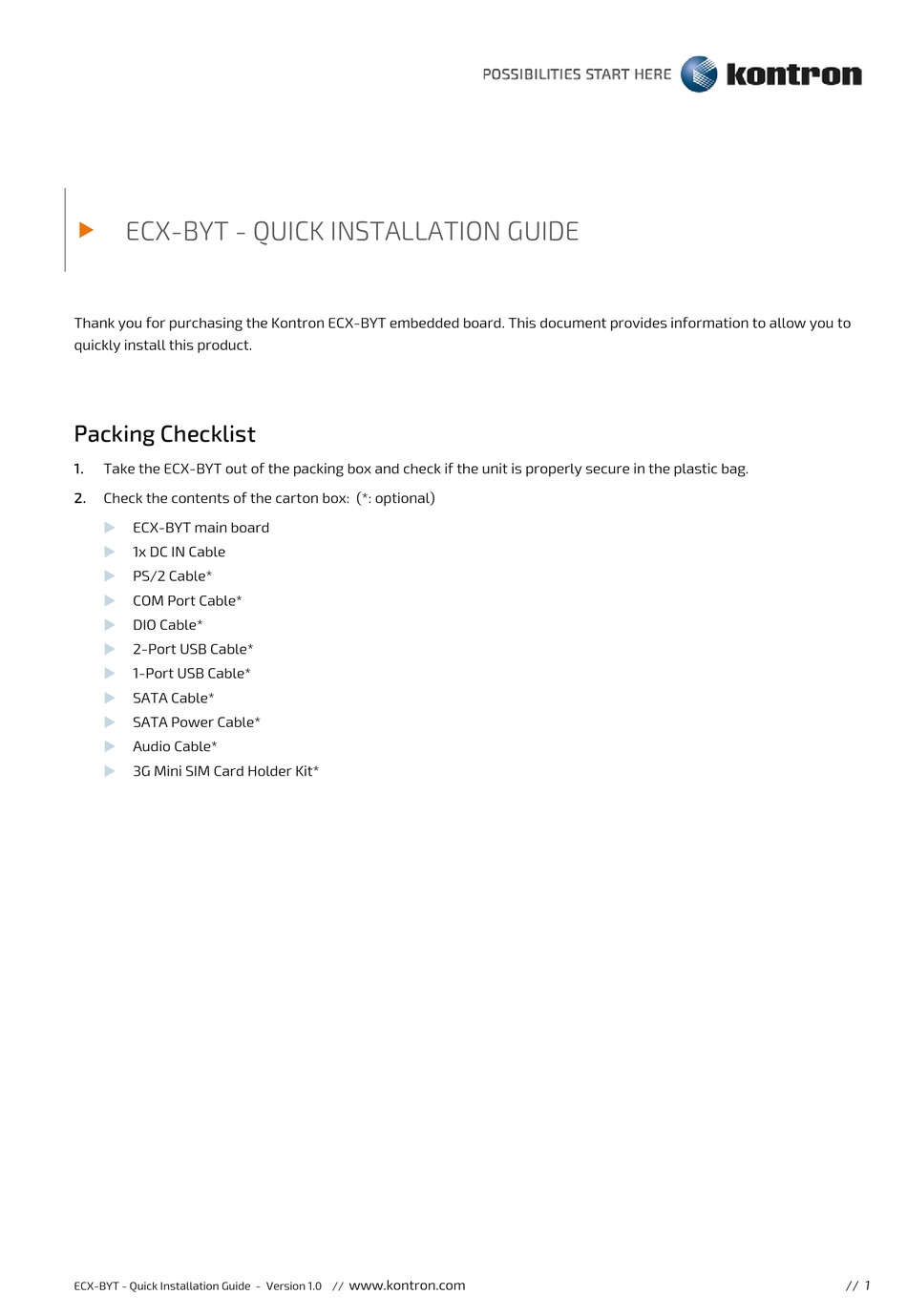

ECX-BYT - QUICK INSTALLATION GUIDE
Thank you for purchasing the Kontron ECX-BYT embedded board. This document provides information to allow you to
quickly install this product.
Packing Checklist
1.
Take the ECX-BYT out of the packing box and check if the unit is properly secure in the plastic bag.
2.
Check the contents of the carton box: (*: optional)
ECX-BYT main board
1x DC IN Cable
PS/2 Cable*
COM Port Cable*
DIO Cable*
2-Port USB Cable*
1-Port USB Cable*
SATA Cable*
SATA Power Cable*
Audio Cable*
3G Mini SIM Card Holder Kit*
ECX-BYT - Quick Installation Guide - Version 1.0 //
www.kontron.com
// 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kontron ECX-BYT
Summary of Contents for Kontron ECX-BYT
- Page 1 Thank you for purchasing the Kontron ECX-BYT embedded board. This document provides information to allow you to quickly install this product. Packing Checklist Take the ECX-BYT out of the packing box and check if the unit is properly secure in the plastic bag. Check the contents of the carton box: (*: optional) ...
- Page 2 COM2 RS-232/422/485 Port Wafer COM3 RS-232 Port 3 Wafer COM4 RS-232 Port 4 Wafer COM5 RS-232 Port 5 Wafer COM6 RS-232 Port 6 Wafer DC12V Power Input Wafer www.kontron.com // 2 ECX-BYT - Quick Installation Guide - Version 1.0 //...
- Page 3 Enable Clear CMOS RTC content (board does not boot with the jumper in this position) Normal operation (default position) “X” = Jumper set (short) and “-” = jumper not set (open) www.kontron.com // 3 ECX-BYT - Quick Installation Guide - Version 1.0 //...
- Page 4 Jumper 2 Position Description Pin 2-4 Pin 4-6 Panel Power = +3,3V Panel Power = +5V “X” = Jumper set (short) and “-” = jumper not set (open) www.kontron.com // 4 ECX-BYT - Quick Installation Guide - Version 1.0 //...
- Page 5 “X” = Jumper set (short) and “-” = jumper not set (open) ME F/W Selection (JP8) Jumper Position Description Pin 1-2 ME F/W Disabled Normal Operation “X” = Jumper set (short) and “-” = jumper not set (open) www.kontron.com // 5 ECX-BYT - Quick Installation Guide - Version 1.0 //...
- Page 6 Real I/O Panel Connector Locations Item Designation Description GbE LAN1 RJ-45 Connector GbE LAN2 RJ-45 Connector USB2.0 Port 2,3 Type-A Connector USB1 USB3.0 Port 0 Connector VGA1 VGA Connector HDMI1 HDMI Connector www.kontron.com // 6 ECX-BYT - Quick Installation Guide - Version 1.0 //...
