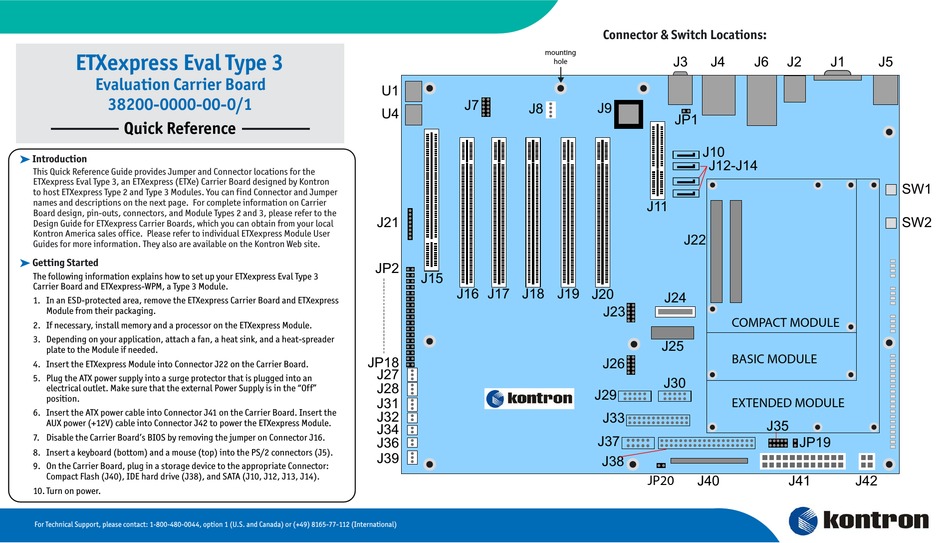

Kontron ETXexpress Eval Type 3 Quick Reference

ETXexpress Eval Type 3
Evaluation Carrier Board
38200-0000-00-0/1

Quick Reference

®
Introduction
This Quick Reference Guide provides Jumper and Connector locations for the
ETXexpress Eval Type 3, an ETXexpress (ETXe) Carrier Board designed by Kontron
to host ETXexpress Type 2 and Type 3 Modules. You can find Connector and Jumper
names and descriptions on the next page. For complete information on Carrier
Board design, pin-outs, connectors, and Module Types 2 and 3, please refer to the
Design Guide for ETXexpress Carrier Boards, which you can obtain from your local
Kontron America sales office. Please refer to individual ETXexpress Module User
Guides for more information. They also are available on the Kontron Web site.
®
Getting Started
The following information explains how to set up your ETXexpress Eval Type 3
Carrier Board and ETXexpress-WPM, a Type 3 Module.
1. In an ESD-protected area, remove the ETXexpress Carrier Board and ETXexpress
Module from their packaging.
2. If necessary, install memory and a processor on the ETXexpress Module.
3. Depending on your application, attach a fan, a heat sink, and a heat-spreader
plate to the Module if needed.
4. Insert the ETXexpress Module into Connector J22 on the Carrier Board.
5. Plug the ATX power supply into a surge protector that is plugged into an
electrical outlet. Make sure that the external Power Supply is in the "Off"
position.
6. Insert the ATX power cable into Connector J41 on the Carrier Board. Insert the
AUX power (+12V) cable into Connector J42 to power the ETXexpress Module.
7. Disable the Carrier Board's BIOS by removing the jumper on Connector J16.
8. Insert a keyboard (bottom) and a mouse (top) into the PS/2 connectors (J5).
9. On the Carrier Board, plug in a storage device to the appropriate Connector:
Compact Flash (J40), IDE hard drive (J38), and SATA (J10, J12, J13, J14).
10. Turn on power.
For Technical Support, please contact: 1-800-480-0044, option 1 (U.S. and Canada) or (+49) 8165-77-112 (International)
mounting
U1
J7
J8
U4
J21
JP2
J15
J16 J17 J18 J19 J20
JP18
J27
J28
J31
J32
J34
J36
J39
Connector & Switch Locations:
J3 J4
hole
J9
JP1
J10
J12-J14
J11
J22
J24
J23
COMPACT MODULE
J25
BASIC MODULE
J26
J30
J29
EXTENDED MODULE
J33
J37
J38
J40
JP20
J6 J2 J1 J5
SW1
SW2
J35
JP19
J41 J42
