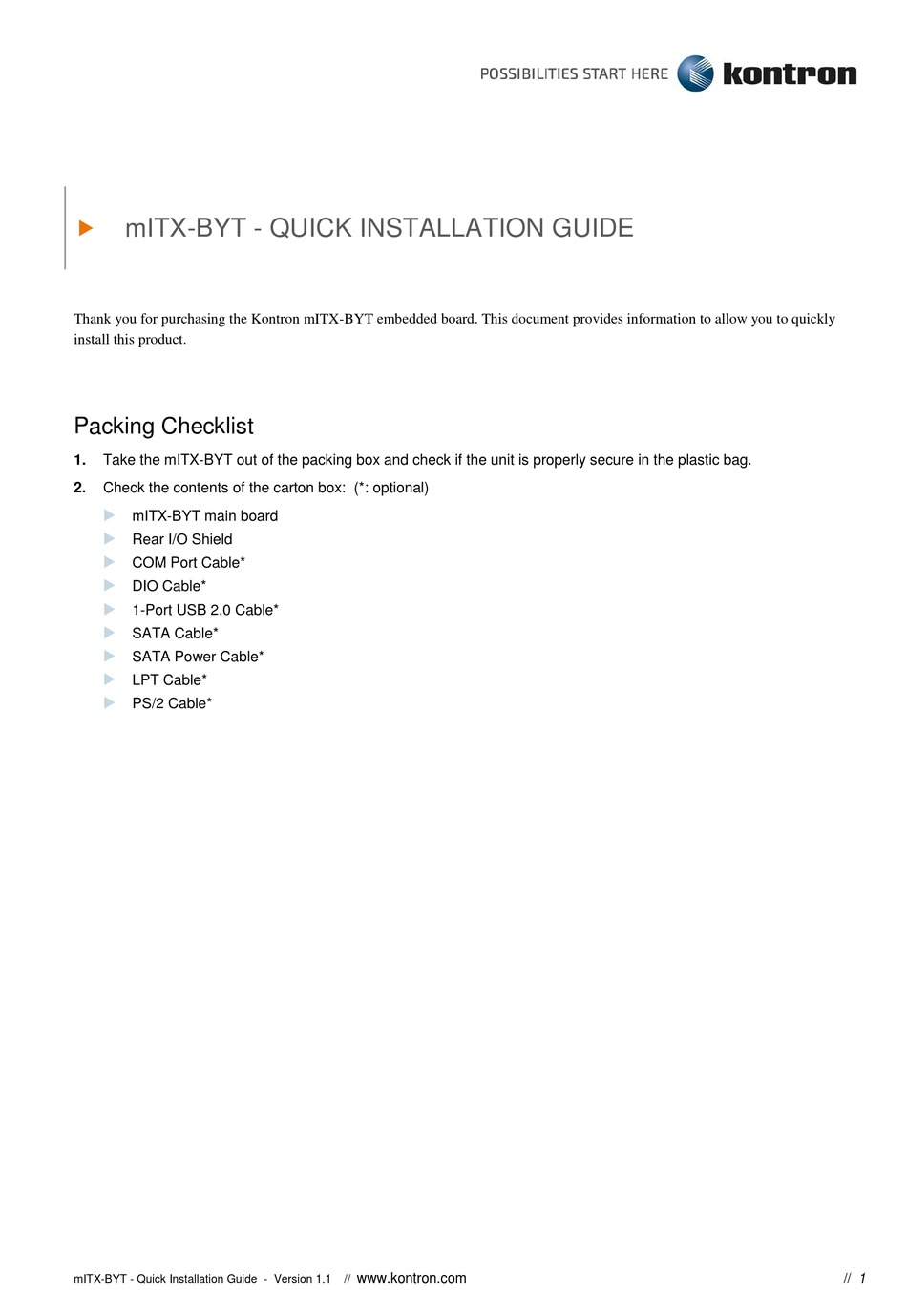

mITX-BYT - QUICK INSTALLATION GUIDE
Thank you for purchasing the Kontron mITX-BYT embedded board. This document provides information to allow you to quickly
install this product.
Packing Checklist
1.
Take the mITX-BYT out of the packing box and check if the unit is properly secure in the plastic bag.
2.
Check the contents of the carton box: (*: optional)
mITX-BYT main board
Rear I/O Shield
COM Port Cable*
DIO Cable*
1-Port USB 2.0 Cable*
SATA Cable*
SATA Power Cable*
LPT Cable*
PS/2 Cable*
mITX-BYT - Quick Installation Guide - Version 1.1
www.kontron.com
//
// 1
Advertisement
Table of Contents
Related Manuals for Kontron mITX-BYT
Summary of Contents for Kontron mITX-BYT
-
Page 1: Packing Checklist
Thank you for purchasing the Kontron mITX-BYT embedded board. This document provides information to allow you to quickly install this product. Packing Checklist Take the mITX-BYT out of the packing box and check if the unit is properly secure in the plastic bag. Check the contents of the carton box: (*: optional) ... - Page 2 ME F/W Selection JP10 MPCIE Activity LED Indication JP11 Signal / Power Selection for COM2 JP12 Signal / Power Selection for COM1 JP13 USB Power Selection JP15 RTC Reset Selection www.kontron.com // 2 mITX-BYT - Quick Installation Guide - Version 1.1...
- Page 3 Half Size Mini-PCIE Express v1.2 Socket PEG1 PCIE Express x1Slot SATA1 Serial ATA Port 0 Connector SATA2 Serial ATA Port-1 mSATA Socket (Full Size) LPT1 Parallel Port Pin Header www.kontron.com // 3 mITX-BYT - Quick Installation Guide - Version 1.1...
-
Page 4: Jumper Settings
Backlight Enable Voltage = +5V Jumper 2 Position Description Pin 2-4 Pin 4-6 Active High Active Low “X” = Jumper set (short) and “-” = jumper not set (open) www.kontron.com // 4 mITX-BYT - Quick Installation Guide - Version 1.1... - Page 5 LVDS1 Backlight DC / PWM Selection (JP4) Jumper 1 Position Description Pin 1-2 Pin 2-3 DC Mode PWM Mode “X” = Jumper set (short) and “-” = jumper not set (open) www.kontron.com // 5 mITX-BYT - Quick Installation Guide - Version 1.1...
- Page 6 “X” = Jumper set (short) and “-” = jumper not set (open) ME F/W Selection (JP9) Jumper Position Description Pin 1-2 ME F/W Disabled Normal Operation “X” = Jumper set (short) and “-” = jumper not set (open) www.kontron.com // 6 mITX-BYT - Quick Installation Guide - Version 1.1...
- Page 7 Enable Clear CMOS RTC content (board does not boot with the jumper in this position) Normal operation (default position) “X” = Jumper set (short) and “-” = jumper not set (open) www.kontron.com // 7 mITX-BYT - Quick Installation Guide - Version 1.1...
- Page 8 LAN2 & USB2.0 Port 2,3 Connector USB1 USB3.0 Port 0 Connector VGA1 VGA Connector HDMI1 HDMI Connector RS-232 / 422 / 485 Port 1, 2 Connector AUDIO1 2 Stack-up Azalia Audio Phone Jack www.kontron.com // 8 mITX-BYT - Quick Installation Guide - Version 1.1...
