- Page 1 PC/HD Switcher 4 input : 1 output w/RS232 - ID# 594 Operation Manual...

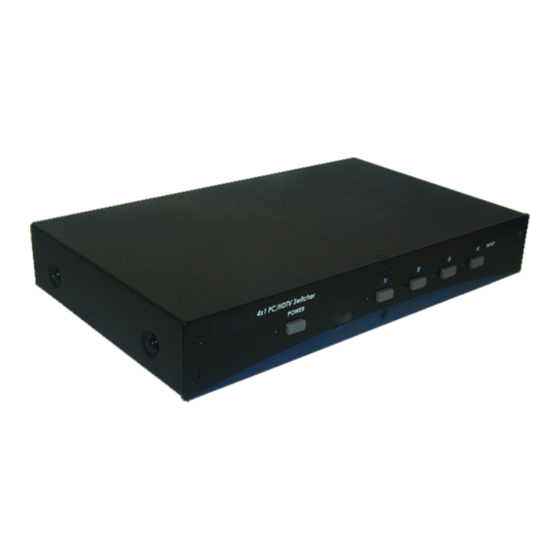

- Page 2 Introduction PC/HD Switcher 4 input : 1 output w/RS232 is perfect solution for switching between various PC/HDTV sources such as PCs, DVD... to share one display monitor, TV or projector with resolution up to WUXGA/1080p. Features LED indicators ● IR remote control. ●...
- Page 3 Rear Panel DC 5V: 5 Volt, 5W DC input , center +. Input 1 connector: Input connector for PC 1 /YPbPr 1. Input 2 connector: Input connector for PC 2/YPbPr 2. Input 3 connector: Input connector for PC 3/YPbPr 3. Input 4 connector: Input connector for PC 4/YPbPr 4.
- Page 4 Remote Control Protocol * The connection between the PC/HD Switcher 4 input : 1 output w/RS232 and remote controller with RS-232 modem cable. Pins definition of modem cable PC/HD Switcher Remote Controller Definition Definition ► T x D R xD R x D T x D ◄...
- Page 5 Specifications RGB: 0.7Vp-p or 1 Vp-p with sync75 ohm Input PC/YPbPr:4 /HD(TTL): 5Vp-p 10 K ohm Analog Audio: 4 2Vrms max 47 k ohm (L/R) RGB: 0.7Vp-p or 1 Vp-p with sync 75 ohm Output PC/YPbPr:1 /HD(TTL): 5Vp-p 10k ohm Analog Audio: 1 2 Vrms max 47 k ohm (L/R)
