- Page 1 Video CV-SV 4x1 Switch # 15334 Operation Manual...

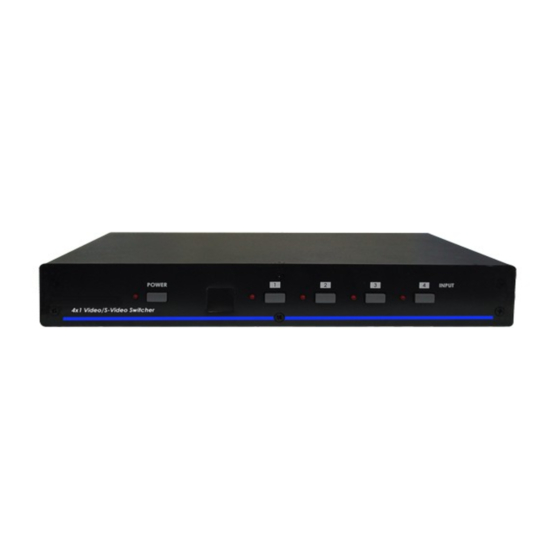

- Page 2 Introduction Video CV-SV 4x1 Switch is designed to switch between Standard Definition (SD) Composite and Super video sources such as VCR's, DVD players and Gaming Consoles like XBox and PS3, all to share onto one Composite or S- video enabled display. Supports standard Interlaced video and analog L/R audio sources of 480i and 576i resolution (NTSC and PAL).
- Page 3 1. Power indicator LED. 2. Power ON/OFF switch: Push the button to turn ON/OFF the power. 3. IR sensor: Infrared remote control sensor. 4. Input 1 indicator LED . 5. Input 1 switch: Push the button, LED lights up, source 1 is selected. 6.
- Page 4 RS232 Remote Control Protocol Video CV-SV 4x1 Switch The connection between and remote controller with RS-232 modem cable. Pins definition of modem cable Video CV-SV 4x1 Switch Remote Controller DEFINITION DEFINITION → ← * RS-232 transmission format: Baud Rate : 9600 bps Data Bit : 8 Bits Parity: None Stop Bit: 1 bit...
- Page 5 Connections COMMENT PORT 1 ON PORT 2 ON PORT 3 ON PORT 4 ON POWER ON POWER OFF Connection Diagram...
