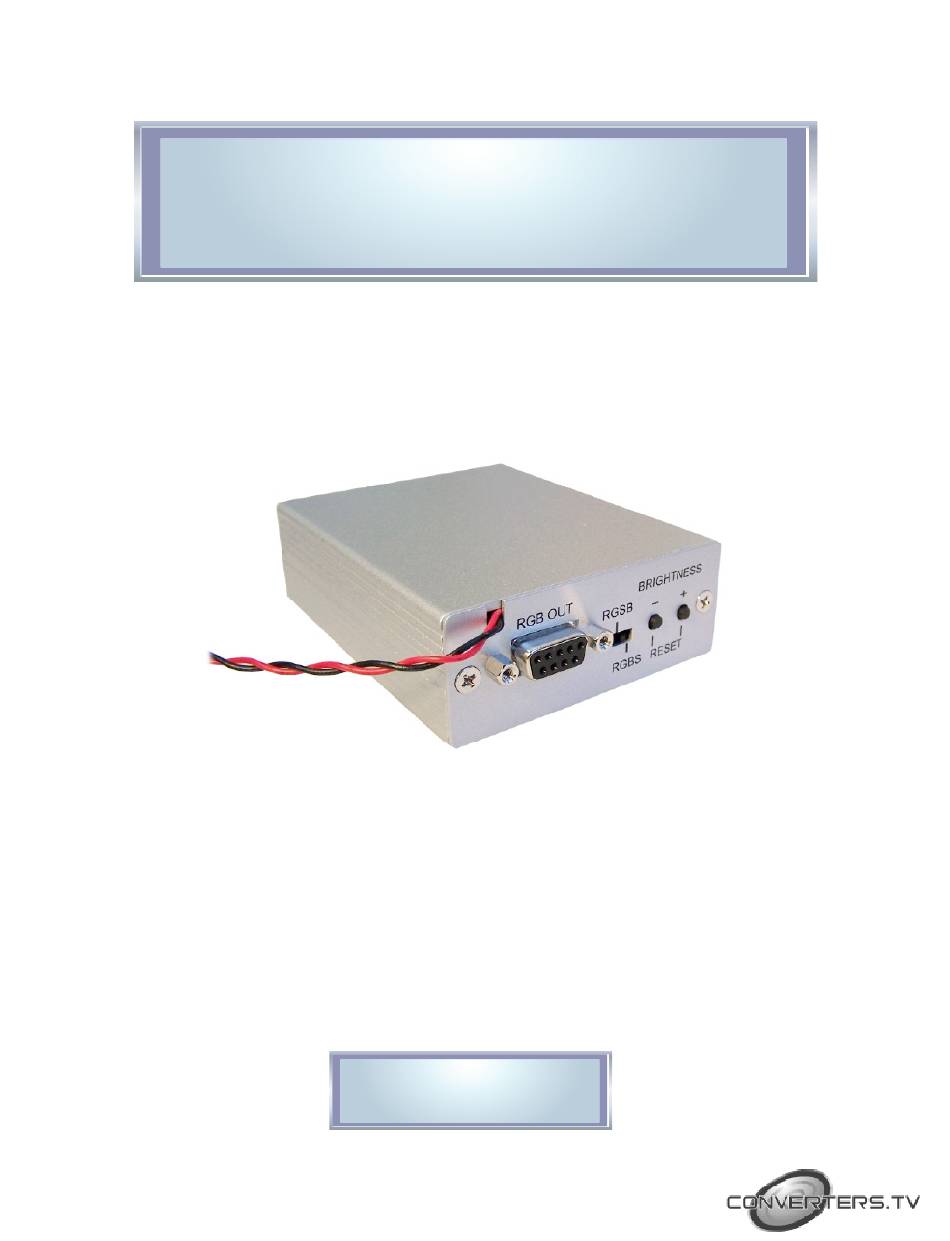

- Page 1 Video (PAL or NTSC) to RGB Converter with 12v Relay Switch for Reverse Camera # 173 Operation Manual...
- Page 2 Introduction The Video (PAL or NTSC) to RGB Converter with 12v Relay Switch for Reverse Camera allows video signals from NTSC/PAL/SECAM to be converted into RGB/Sync or RGBsB(Sync On Green) to allow video to be viewed on most in-car LCD screens. It also includes 12volt trigger for reverse camera input.

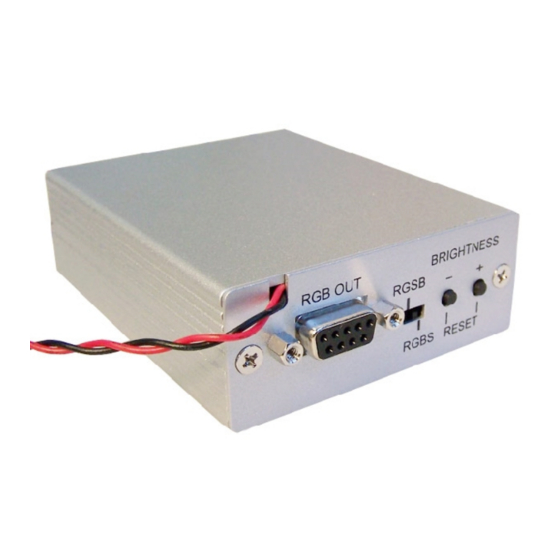

- Page 3 1. - And + buttons/reset button- The – and + buttons are used to decrease and increase the brightness level respectively. Simultaneously pressing the – and + buttons returns brightness to its factory default value. 2. RGBs/RGsB switch- This button allows the user to select between RGsB (Sync on Green) or RGBs.
- Page 4 Connection & Installation - Connect the RGB out port to your RGB device using a 9 Pin D female connector. - Set the switch to either RGBs or RGsB. - Use the - and + to adjust the level of brightness to the desired level. - Connect the Video input port to you video device using a Composite Video RCA jack.
