Summary of Contents for Converters.TV 826

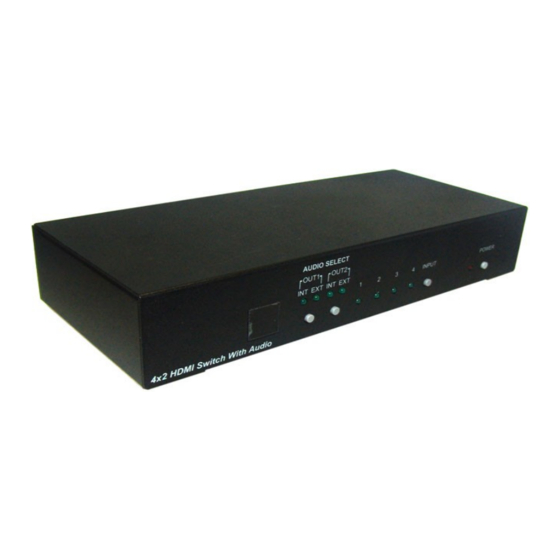

- Page 1 HDMI v1.3 4in:2out Switcher with Audio ID# 826 Operation Manual...
- Page 2 Introduction The popularity of HDMI products over the years is now widely seen in today's commercial and residential environments. People usually have more than one HDMI device and sources in a single place. Our HDMI V1.3 Switcher with audio provides an excellent solution when connecting all the devices and sources together into one.
- Page 3 Operating Functions Controls Front Panel Re mo te Con tr ol Se nsor A ud io Se lec t: A ll o w user to s elec t th e des ir ed au di o ou tp ut (e it he r f rom R/ L or HD MI i npu t) wi t h a HDM I i np ut conn ec t io n.
- Page 4 Remote Controls and Functions 1. Power: Press the button to turn on/ff the unit. 2. Input Select for HDMI OUT A: Press 1 or 2 to select the desired input source for HDMI OUT A. 3. Input Select for HDMI OUT B: Press lor 2 to select the desired input source for HDMI OUT B.
- Page 5 AUDSEL 00 HDMI OUT1 audio out by EXT AUDSEL 01 HDMI OUT 1 audio out by INT AUDSEL 10 HDMI OUT 2 audio out by EXT AUDSEL 11 HDMI OUT 2 audio out by INT Connection and Installation...
