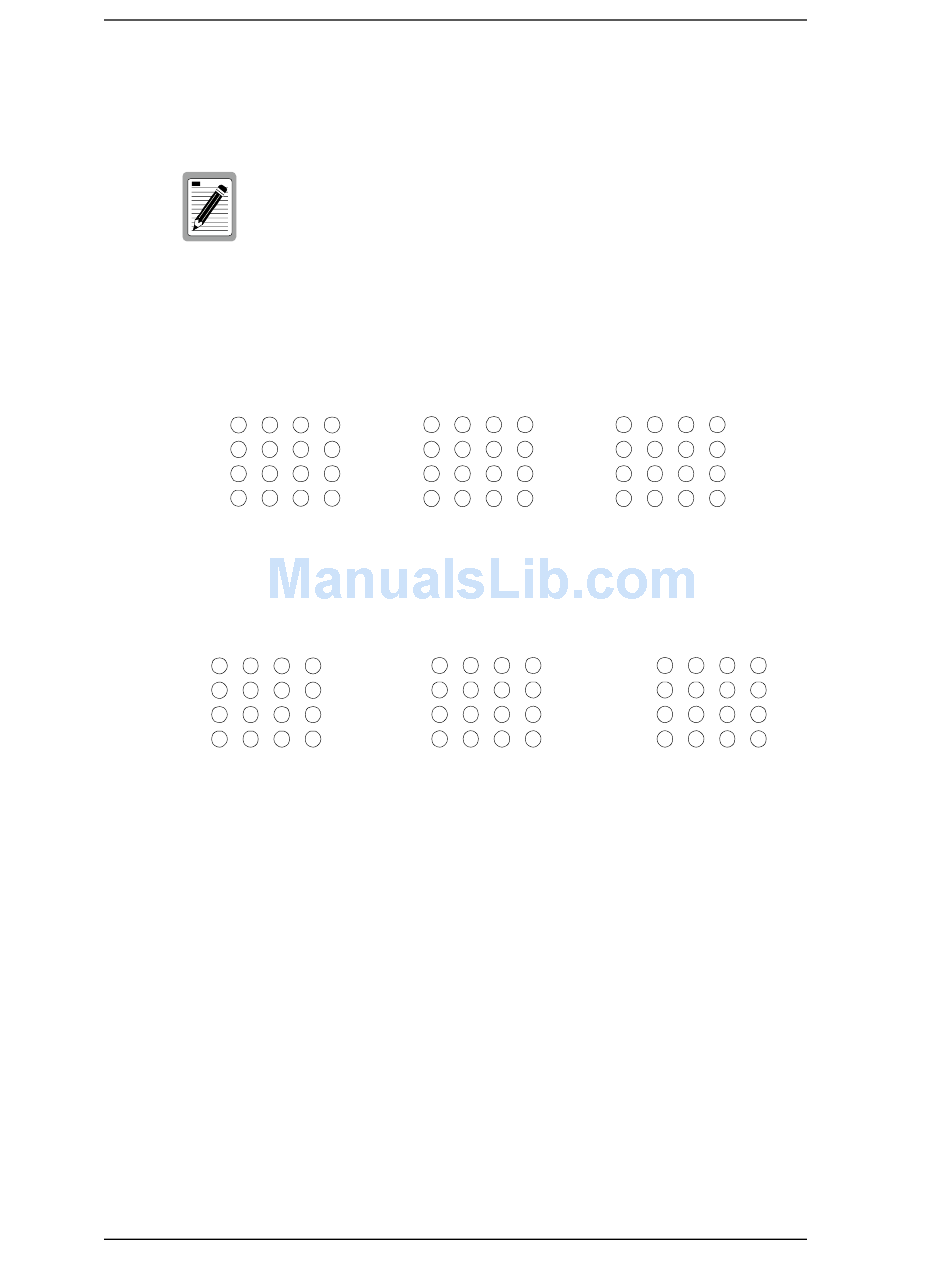

Figure 1-2 shows the Link and Activity port LEDs for 24 10Base-T/
100Base-TX ports (default configuration). Pressing the front panel LED
mode button changes the operation of these LEDs to 100M Speed and
Full Duplex, as shown in Figure 1-3.
The numbers above and below the port LEDs identify the
LEDs associated with a specific RJ-45 port.
The port LEDs are grouped to the left of their corresponding RJ-45 ports.
Table 1-2 defines the performance of the port LEDs for the 10Base-T/
100Base-TX ports in both the default configuration and with the LED
mode button pressed.
1 2
Link
Activity
Link
Activity
5 6
Figure 1-2. Port LEDs Default Configuration
1 2 3
10/100 speed
Full/half duplex
10/100 speed
Full/half duplex
5 6 7
Figure 1-3. Port LEDs LED Mode Button Pressed
4 Product Overview
3 4 9 10
Link
Activity
Link
Activity
7 8
13 14
4 9 10
10/100 speed
Full/half duplex
10/100 speed
Full/half duplex
8 13 14
11 12 17 18
Link
Activity
Link
Activity
15 16 21 22
11 12 17
10/100 speed
Full/half duplex
10/100 speed
Full/half duplex
15 16 21
19 20
23 24
18 19 20
22 23 24
ELS100-24TX
