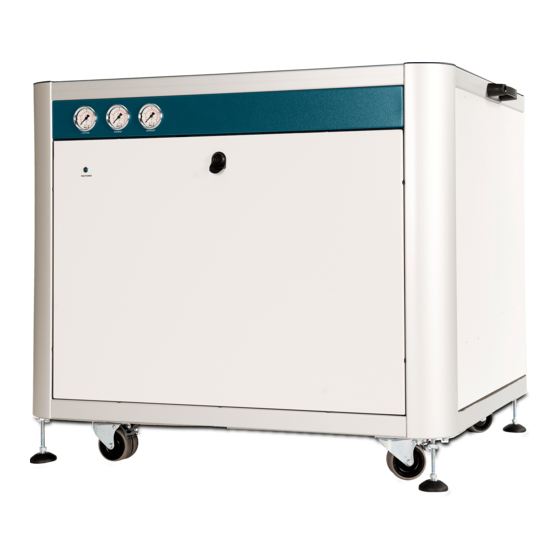

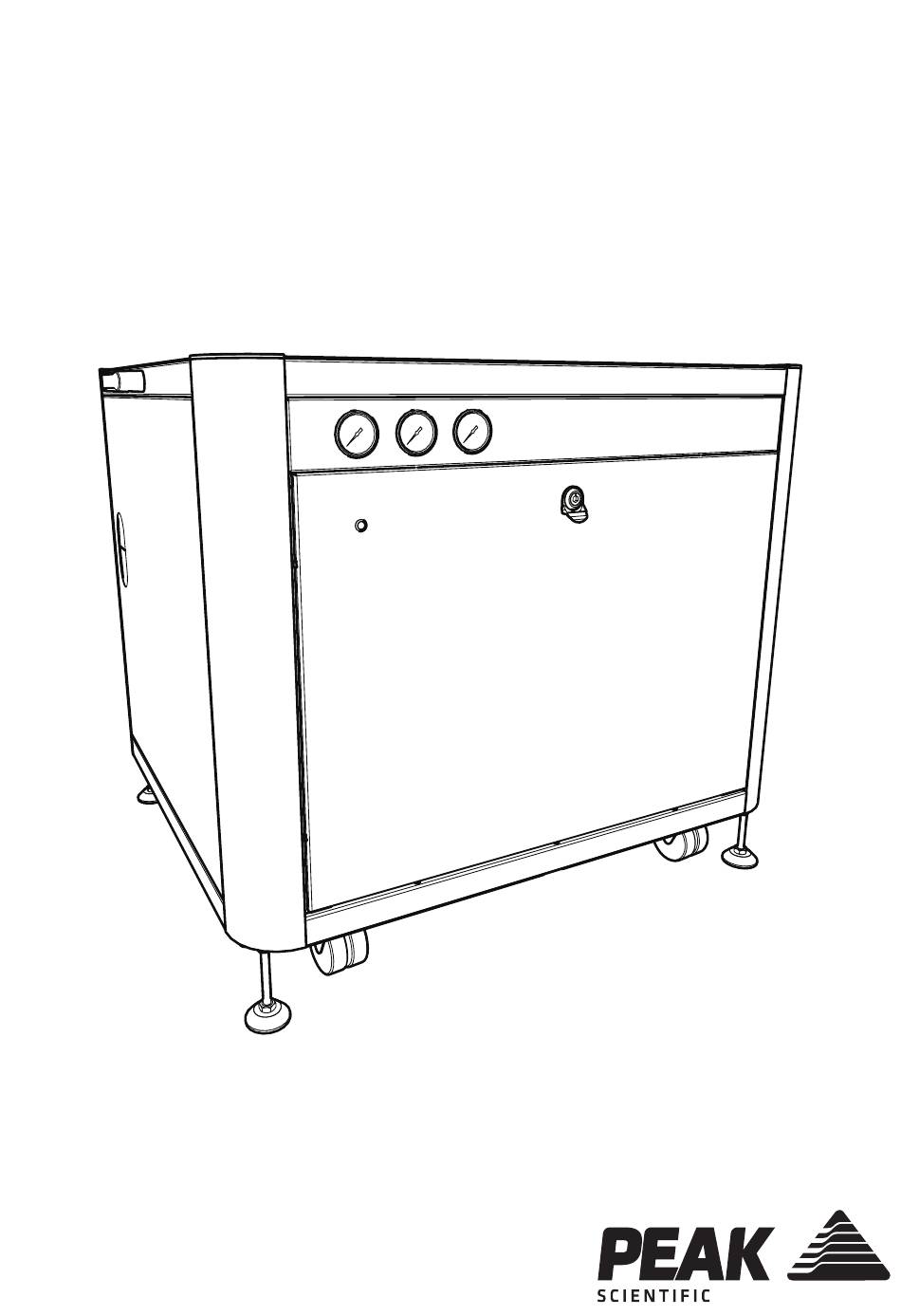

- Page 1 MS Table (All Models) Installation Guide MS Table Installation Guide Rev 1 PN IG-0012 21/09/16...
-
Page 2: Change History
User Manual for your gas generator. Thank you for selecting Peak Scientific to meet your laboratory gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or Peak Partner from which you purchased your generator. -
Page 3: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 4: Fittings Kit
Fittings Kit 1/4” - 6mm Push Fit Fitting 02-4600 8mm Hex Key 00-0007 US Mains Cable C13 6-15 04-1029 x6** M5 Plain Washer 00-1040 x3m* 6mm PE Tubing 00-1282 x6** US Mains Cable C13 5-15 04-1039 M5 Spring Washer 00-1044 x6** x12m* M5 Screw 00-5476... - Page 5 0° 0° Unpack the MS Table from the shipping crate and position on a flat surface, in desired area. To lock the levelling feet in place, firstly slacken off the 17mm top nut. Page 5...
- Page 6 Then, using a 14mm spanner unscrew the levelling foot until it reaches the floor. Unscrew the foot a further 1 full turn before tightening the locking nut to lock the foot in place. For non-gas versions of the MS Table proceed to step 8, or for instructions on fitting the optional water bottle mount, complete step 5 before moving on to step 8.
- Page 7 00-1044 00-5476 00-1040 OPTIONAL: To attach the water bottle mount, locate the two mounting holes, towards the back of the MS Table on the left side. Using the screws and washers provided attach the water bottle mount in the order of: Water bottle mount, Plain Washer (00-1044), Spring Washer (00-1044) then M5 Screw (00-5476).
- Page 8 Connect an air supply to the compressed air inlet bulkhead, located at the rear of the unit. 04-1028/04-1029/ 04-1038/04-1039 Select the appropriate mains cable from the fittings kit and plug the IEC 60320/C19 cable into the mains input at the rear of the generator. Page 8...
- Page 9 CAUTION 110V 230V 110VAC 50/60Hz OR 230VAC 50/60Hz Plug the mains cable into the corresponding 110VAC 50/60Hz OR 230VAC 50/60Hz single phase power supply. CAUTION ensure the correct cable has been selected for your electrical supply For non-gas versions of the MS Table proceed to step 15. minutes Leave the generator switched on for a period of 30 minutes to purge the system.
- Page 10 After 30 minutes of running, the generator can be disconnected from the air supply. The 6mm blanking plug can now be removed from the Drain port. Page 10...
- Page 11 00-1282 Connect tubing to the Curtain, Source & Exhaust outputs on the generator and attach to the corresponding inputs on your instrument. 00-1282 Re-connect the compressed air supply to the Air inlet. Connect 6mm PE Tubing 00-1282 to the Drain outlet. Fit the other end of the tubing to a suitable drain connection or container.
- Page 12 CONGRATULATIONS Your Peak Scientific MS Table is now fully installed, operational and ready to supply gas on demand to your instrument. Page 12...
-
Page 13: General Notes
General Notes Electrical requirements for 230V generators is 110VAC 50/60Hz OR 230VAC 50/60Hz. The Teflon tube supplied in the fittings kit is to allow the generator to be installed adjacent to the instrument it is supplying. If the generator is to be installed further away from the instrument then attention needs to be paid to pressure drops that could occur. - Page 14 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
- Page 15 User Manual for your gas generator. Peak Scientific has highly trained, fully certified Field Service Engineers located in over 20 countries across every continent around the world. This allows us to provide an industry-leading rapid response service to our customers.
