Summary of Contents for Gold Medal 2408

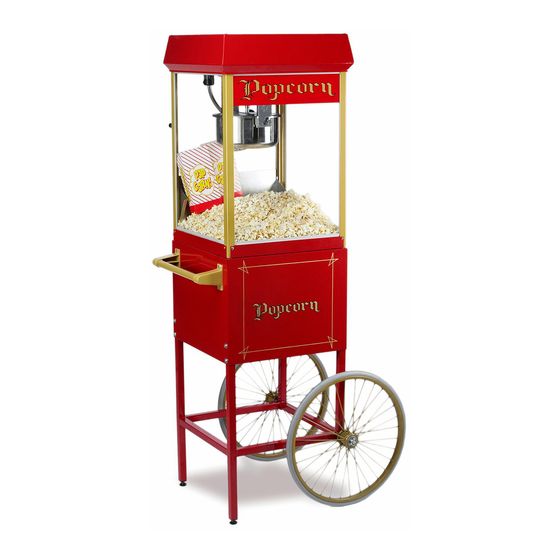

- Page 1 A-PDF Watermark DEMO: Purchase from www.A-PDF.com to remove the watermark Part No. 59410 FUN POP 8 OZ. POPPER Instruction Manual Model #2408 Shown here on Model #2689CR Cart (Optional) Cincinnati, OH 45241-4807 USA...
- Page 2 SAFETY PRECAUTIONS...
-
Page 3: Installation Instructions
Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Company’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 4: Popping Instructions
Your new popper is equipped with a 178ml corn measure cup. Popcorn popped in coconut oil stays fresher longer. Coconut oil does not leave black deposits in your kettle like other oils. Corn charge - 8 oz. (240 ml) Oil charge – 2.6 oz. (60 ml) Flavacol – 1 tablespoon (8 cc) Model# 2408... -
Page 5: Care And Cleaning
Cleaning the cabinet of your machine is easy. Take a clean cloth and wipe excess grease from the glass. Wipe the outside of the machine also. NOTE: Never use a glass or plastic cleaner that contains ammonia. It will crack the plastic on the machine. Model# 2408... - Page 6 MAINTENANCE INSTRUCTIONS...
- Page 7 ORDERING SPARE PARTS Always speak to a Gold Medal Products Technical Service Advisor before ordering any parts to help ensure accuracy for your product. Included diagrams may not be the latest information. 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list.
- Page 8 Popcorn Machine Cabinet Assembly Model# 2408...
- Page 9 Popcorn Machine Cabinet - Interior Roof Model# 2408...
- Page 10 Popcorn Machine Interior Cabinet (Top) Model# 2408...
- Page 11 Popcorn Machine Interior Cabinet (Bottom) Model# 2408...
- Page 12 42532 Lighted Rocker Switch 55076 Switch Mount Box 67194 Gear Block 58109 Glass 58110 Corn Pan 58077 Wire Route Cover 58064 Base Pan 49100 Old Maid Pan 40557 120V / 20W Foil Heater (Not Shown) 58001 Front Glass Decal (Not Shown) Model# 2408...
- Page 13 Popcorn Machine 8 oz. Kettle Assembly When ordered complete, (as shown above), the kettle is item number 58000C. Model# 2408...
- Page 14 Popcorn Machine Kettle Bottom Model# 2408...
- Page 15 Popcorn Machine Lid and Agitator Assembly Model# 2408...
- Page 16 Spacer, Dump Handle 49328 Kettle Cord Complete (Individual Parts Below) 49086 Kettle Lead Wire (Red) 49087 Kettle Lead Wire (White) 49159 Kettle Lead Wire (Green) 49329 15 Amp Kettle Plug 46241 90 Degree Connector 77079-16 Conduit 77080NM Conduit Bushings (2) Model# 2408...
- Page 17 Popcorn Machine ELECTRICAL SCHEMATIC Model# 2408...
- Page 18 WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
