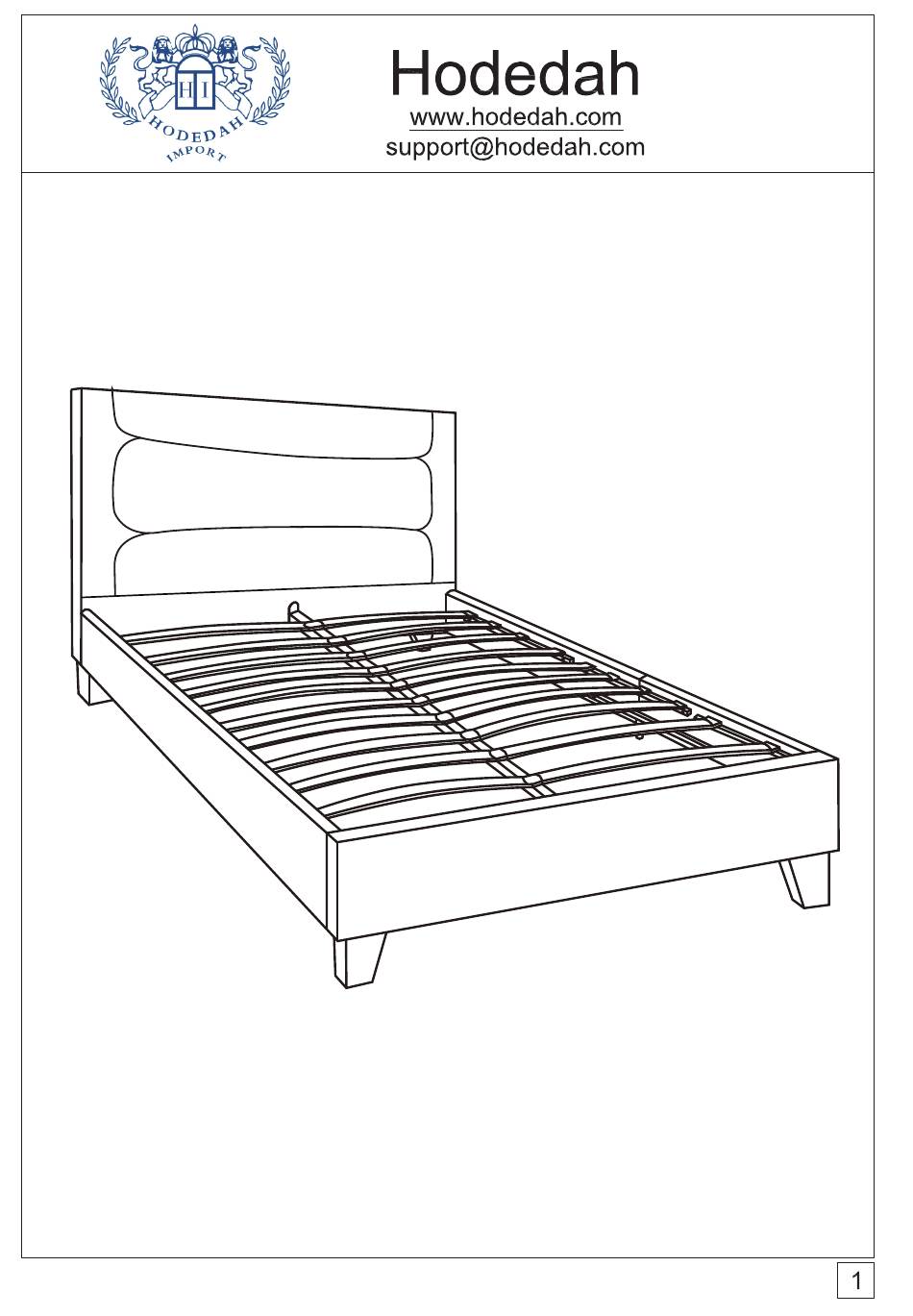

- Page 1 HI504...
- Page 2 Parts...
- Page 3 Parts Head Board Foot Board Slats Center Support 1 un. 1 un. 24 un. 2 un. Side Rail Bed Ho o k Side Rail Side Rail 4 un. 4 un. 4 un. 2 un. Connector Connector Center Leg Bed Leg 2 un.
- Page 6 Step 1 Allen Key Bolt M8*50mm Attach Bed Leg 12 to Headboard 1 with Bolts (B) using Allen Key (G) Step 2 Allen Key Bolt M8*50mm Attach Bed Leg 12 to Footboard 1 with Bolts (B) using Allen Key (G)
- Page 7 Step 3 Allen Key Bolt M8*16mm Attach Bed Hook 7 to Side Rail 6 with Bolt (A) with Allen Key G Step 4 Bolt M6*35mm Bolt M6*16mm Allen Key Attach Side Rail 8 to Side Rail 6 with Bolt (D) using Allen Key (H) Attach Side Rail 5 to Side Rail 6 with Bolt (E) using Allen Key (H)
- Page 8 Bolt M6*16mm Allen Key Attach Center Leg 9 and Connector 11 to Center Support 4 with Bolt (E)using Allen Key (H) Flat Washer Spring Washer Bolt M8*30mm Allen Key I J F G I J F G Attach Side rails 6 to Headboard 1 and Footboard 2 with Bed Hook 7 using Washer (I) and (J), insert Bolt ( F)using Allen Key (G)
- Page 9 Bolt M6*25mm Allen Key Attach Connector 4 to Headboard 1 with Bolt ( C) using Allen Key ( H) Attach Connector to Side Rail 6 with Bolt (C) using Allen Key ( H) Pipe Plug Pipe Plug Insert each Slats 3 to Pipe Plug then Slats 3 to Pipe Plug...
