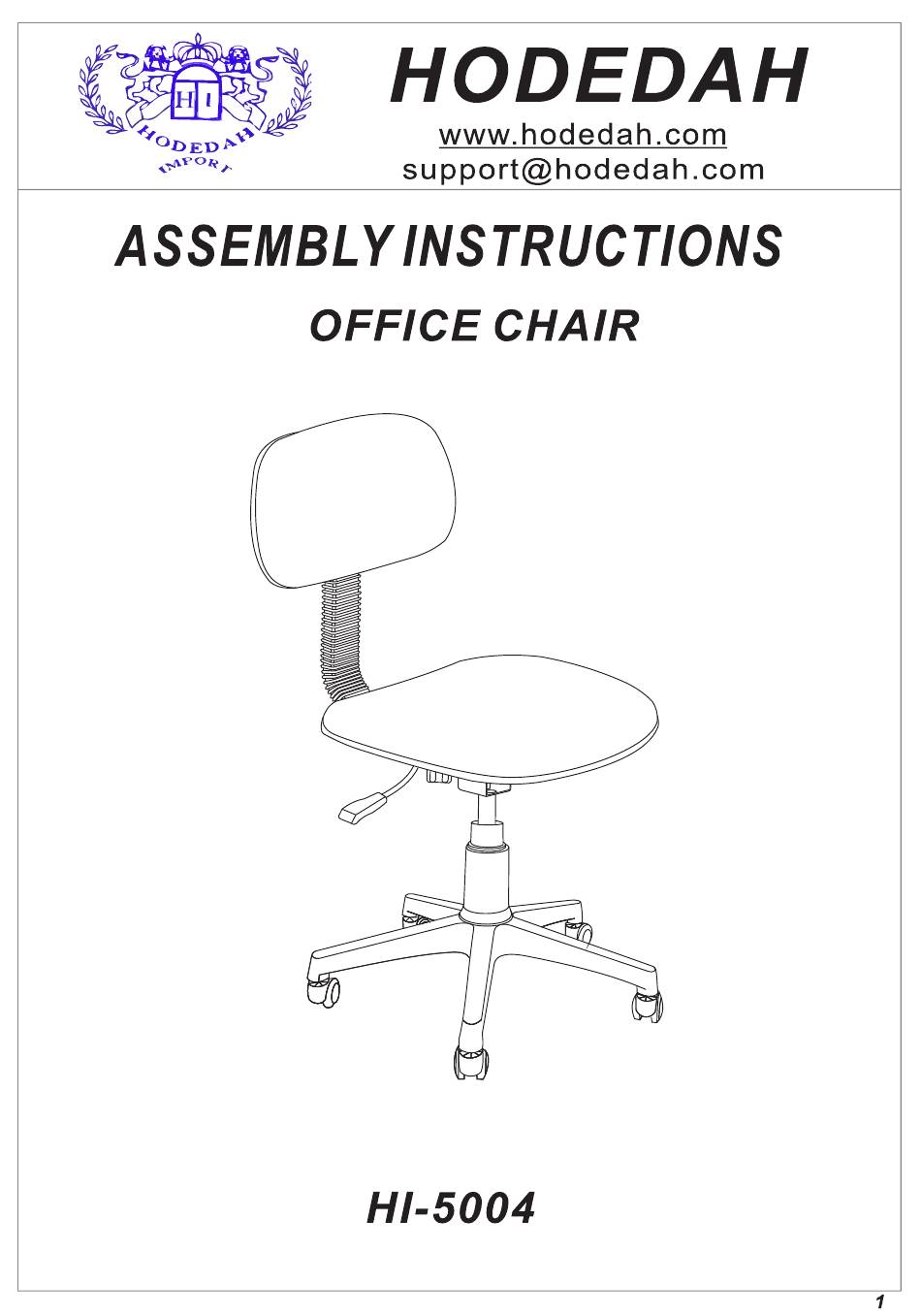

- Page 1 HODEDAH www.hodedah.com support@hodedah.com ASSEMBLY INSTRUCTIONS OFFICE CHAIR HI-5004...
- Page 2 HODEDAH www.hodedah.com support@hodedah.com IMPORTANT NOTE • This product contains small components, please ensure that they kept away from small children. • This instruction booklet contains IMPORTANT safety information. Please read and keep for future reference. • Note: you will find extra screws...
- Page 3 HODEDAH www.hodedah.com support@hodedah.com Thank you for purchasing from Hodedah To learn more about hodedah and our products visit www.hodedah.com READ BEFORE BEGINING ASSEMBLY -Read each step carefully. It is very important that each step of instruction is performed in the correct order.
- Page 4 HODEDAH www.hodedah.com OD ED support@hodedah.com Breakdown Structure...
- Page 5 HODEDAH www.hodedah.com support@hodedah.com Parts O Chair back O Chair support frame O Metal base Chair seat 1 un 1 un 1 un 2 un. O Plastic cover O Caster Base 1 un 1 un. 5 un 1 un. O Knob Plastic 1 un.
- Page 6 HODEDAH www.hodedah.com OD ED support@hodedah.com Step •Attach caster (8) to base(6) .(see photos for example) Step • Attach gas bar (5) to base (6) . (see photos for example)
- Page 7 HODEDAH www.hodedah.com OD ED support@hodedah.com Step • Insert plastic cover (7) through gas bar(6). Step • Attach top of chair support frame(3) to slot of plastic cap(10) .(see photos for example) Outside view Inside view Slot...
- Page 8 HODEDAH www.hodedah.com OD ED support@hodedah.com Step •Attach the combination to chair 2 X bolt(A) with allen key (D)in the holes. (see photos for example) HARDWARE REQUIRED Step • Attach metal base (4) on bottom of chair seat (2),insert combination into the slot of metal base, fix screw 4 X bolt(B) through washer (C)with allen key (D) in the holes after four holes aligned .
- Page 9 HODEDAH www.hodedah.com OD ED support@hodedah.com Step • Screw knob(9) on metal base (4) to make combination together with base . (see photos for example) Step • Put chair seat on top of gas bar, let the bar top into metal base hole, sit on chair to let gas...
- Page 10 HODEDAH www.hodedah.com support@hodedah.com Step • Tighten all screws after every part is in the right position Complete In the interest of our environment please dispose of all packaging thoughtfully. WARNING! 1. MAKE SURE SCREWS HAVE BEEN PROPERLY TIGHTENED BEFORE USING CHAIR 2.DO...
