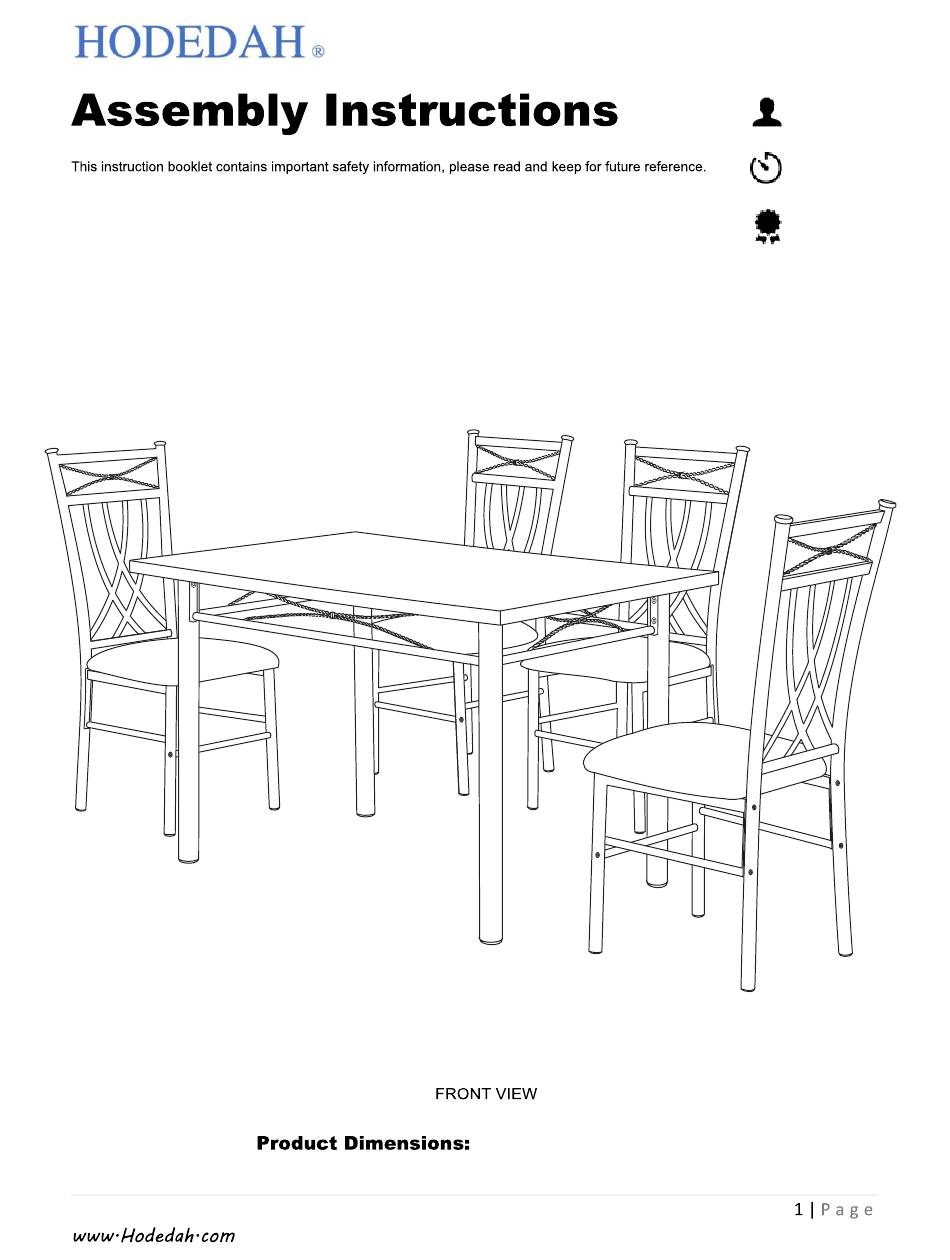

- Page 1 2 person 30 mins ITEM#HITC84-Z 1 YR LTD Dining set 1 Box TABLE: H29.5"W47.2"D31.5" CHAIR: H38.9"W19.7"D16.5"...
- Page 4 Screw Bolt Wrench bar Bolt Screw 16 un. 8 un. 1 un. 24 un. 16 un. Ø4*15mm Ø4*12mm Ø4*40mm Ø4*16mm Wrench bar 1 un. Table Table fence Table leg Table top Plastic footing Table fence 4 un. 2 un. 1 un 2 un.
-
Page 6: Hardware Required
Step 1 Attach 1piece table fence(2) and 1 piece table fence(3) on one table leg(4), screw bolt (A) ● into the hole after aligned ,make them a combination.(se e photos for example) HARDWARE REQUIRED 4* A Step 2 Do the same on the other leg following step 1. ●... - Page 7 Step 3 Attach table top(1) on table leg(4), insert screw (B) through the hole on small piece of metal ● welded at top of table leg, tighten screw after all fixed. (See photos for example) HARDWARE REQUIRED 8* B Step 4 Cover plastic footing (5)at bottom of table leg (4).
- Page 8 Step 5 Attach steel rod (9) on chair leg (8),tighten with wrench bar (F).(see photos for example) ● HARDWARE REQUIRED 2* D Step 6 Attach chair back frame(6) on chair leg (8),Screw bolt (D) into the hole after aligned, tighten ●...
- Page 9 Step 7 Attach seat cushion(7)on chair legs, insert screw(B) through holes on small metal welded at ● side of chair legs.(see photos for example) HARDWARE REQUIRED 4* E Step 8 Cover plastic footing(10) at bottom of chair leg(8). ● Assemble all other chairs with same steps. ●...
