Summary of Contents for Hodedah HITV 107

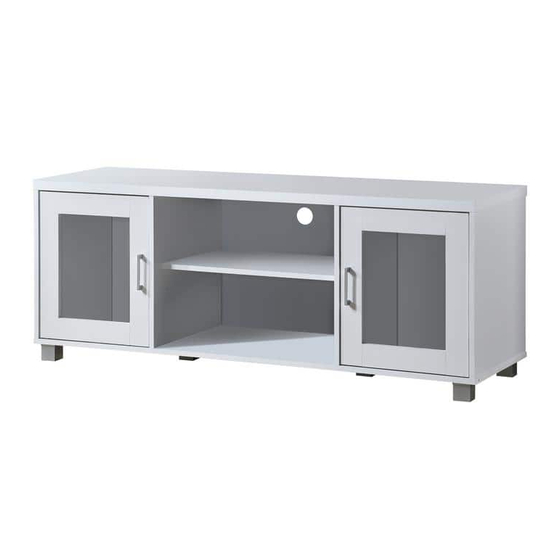

- Page 1 Hodedah www.hodedah.com support @hodedah.com HITV 107 L 57'' X D 17 " X H 21 "...
- Page 2 Hodedah www.hodedah.com support @hodedah.com PART & HARDWARE LIST DOOR SUPPORT SPRING PLASTIC DOWEL M8 X 25MM 902 MAGNET PLATE CB SCREW M3 X 12MM CB SCREW M3.5 X 16MM 902 MAGNET ABS SQUARE LEG (40MM) CSK CAP M6 X 40MM...
- Page 3 Hodedah www.hodedah.com support @hodedah.com - This product contains small components, please ensure that they are kept away from small children. - THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. DO NOT RETURN PRODUCT TO THE STORE.
- Page 4 - Never push, drag or pull your furniture (especially on carpet). Warranty Information Hodedah warrants this product to be free from defects in material and workmanship agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to be repair or replacement of defective parts and no assembly labor is included.
- Page 5 Hodedah www.hodedah.com support @hodedah.com STEP 1 PLASTIC DOWEL M8 X 25MM MINIFIX 5654 PVC SHELF SUPPORT 902 MAGNET BOTTOM VIEW RIGHT VIEW LEFT VIEW RIGHT VIEW LEFT VIEW - Insert 16 x Plastic dowel (A) into panels (2), (3), (4) & (5) using a plastic hammer.
- Page 6 Hodedah www.hodedah.com support @hodedah.com STEP 2 DOOR SUPPORT SPRING CB SCREW M3 X 12MM 902 MAGNET PLATE CB SCREW M3.5 X 16MM HANDLE 2379 (160MM) - PVC P/H SCREW M4 X 24MM GLASS (282 X 356 X 3MM) BACK VIEW...
- Page 7 Hodedah www.hodedah.com support @hodedah.com STEP 3 CB SCREW M3.5 X 16MM ABS SQUARE LEG (40MM) CSK CAP M6 X 40MM ALLEN KEY MINIFIX 5654 - Attach Panel (2) & (3) into Panel (1) with 4 x CSK Cap M6 x 40mm (D) by using a Allen key (N).
- Page 8 Hodedah www.hodedah.com support @hodedah.com STEP 4 POWER NAIL " BOTTOM - Assemble Panel (7) with 42 x Power nail (L) by using a hammer. - Slide 1 x Panel (8) between Panel (4) & Panel (5). - Press & insert the Door support spring (I) at the panel (9) & (10) top into the hole at bottom of Panel (6).
