Summary of Contents for Hodedah HIBT 70

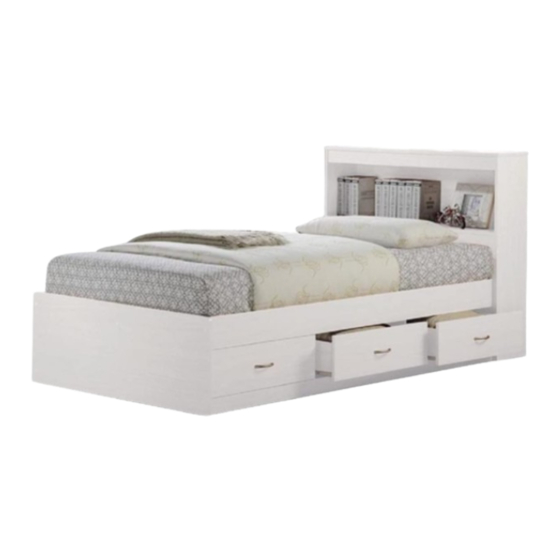

- Page 1 Hodedah www.hodedah.com support @hodedah.com HIBT70-HB HIBT70-FB & SR HIBT 70 - FB & SR '' X D84 '' X H35'' (M/S - 39" X 75")
- Page 2 Hodedah www.hodedah.com support @hodedah.com PART & HARDWARE LIST PLASTIC DOWEL M8 X 25MM PLASTIC PIN CB SCREW M3.5 X 12MM HANDLE IP994 (96MM) - PVC CB SCREW M4 X 35MM CSK CAP M6 X 40MM P/H SCREW M4 X 40MM JCBC BOLT M6 X 50MM DRAWER SLIDE 16"...
- Page 3 Hodedah www.hodedah.com support @hodedah.com - This product contains small components, please ensure that they are kept away from small children. - THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. DO NOT RETURN PRODUCT TO THE STORE.
-
Page 4: Helpful Hints
- Never push, drag or pull your furniture (especially on carpet). Warranty Information Hodedah warrants this product to be free from defects in material and workmanship agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to be repair or replacement of defective parts and no assembly labor is included. - Page 5 Hodedah www.hodedah.com support @hodedah.com STEP 1 PLASTIC DOWEL M8 X 25MM PLASTIC PIN PLASTIC PIN - Insert 22 x Plastic dowel (A) into Panels (1), (2)x2, (4), (5) & (6) using a plastic hammer. - Knock 16 x Plastic pin (J) into panels (1), (2)x2, (3)x2, (4) & (6) base by using a plastic hammer.
- Page 6 Hodedah www.hodedah.com support @hodedah.com STEP 2 BARREL NUT MINIFIX 5654 INSIDE VIEW INSIDE VIEW - Insert 12 x Barrel nut (G) into inside of Panels (1), (4), (5) & (6) inside. - Insert 2 x Minifix (H2) into inside of Panels (5) & (6) by using a Philip head screwdriver.
- Page 7 Hodedah www.hodedah.com support @hodedah.com STEP 3 CB SCREW M3.5 X 12MM CB SCREW M4 X 25MM DRAWER SLIDE 16" LEFT VIEW LEFT VIEW RIGHT VIEW RIGHT VIEW RIGHT VIEW LEFT VIEW - Attach 4 x Drawer slide 16" (L1) into Panel (2) left & right side. Insert 12 x CB Screw M3.5 x 12mm (B) &...
- Page 8 Hodedah www.hodedah.com support @hodedah.com STEP 4 CB SCREW M3.5 X 12MM P/H SCREW M4 X 40MM CB SCREW M4 X 35MM DRAWER SLIDE 16" HANDLE IP994 (96MM) - PVC CB SCREW M3.5 X 16MM 8A 8B - Attach 2 x Panel (10) into Panel (8A). After that attach 1 x Panel (9) into both Panel (10) with 8 x CB Screw M4 x 35mm (C).
- Page 9 Hodedah www.hodedah.com support @hodedah.com STEP 5 ALLEN KEY CB SCREW M4 X 35MM CSK CAP M6 X 40MM JCBC BOLT M6 X 50MM - Attach 3 x Panel (12) into drawer base using 6 x CB Screw M4 x 35mm (C). Tighten using Phillips head screwdriver.
-
Page 10: Left View
Hodedah www.hodedah.com support @hodedah.com STEP 6 CSK CAP M6 X 40MM MINIFIX 5654 JCBC BOLT M6 X 50MM ALLEN KEY LEFT VIEW RIGHT VIEW - Insert 2 x Minifix 5654 (H1) into Panel (2) & (5) using Allen key (F). -
Page 11: Job Complete
Hodedah www.hodedah.com support @hodedah.com STEP 7 CB SCREW M4 X 35MM - Place 4 x Panel (7) into Panel (4) & (5). Insert 16 x CB Screw M4 x 35mm (C) & tighten with Philip head screw driver. - Slide the drawer box into the drawer slide at the Panel (2) & (3).
