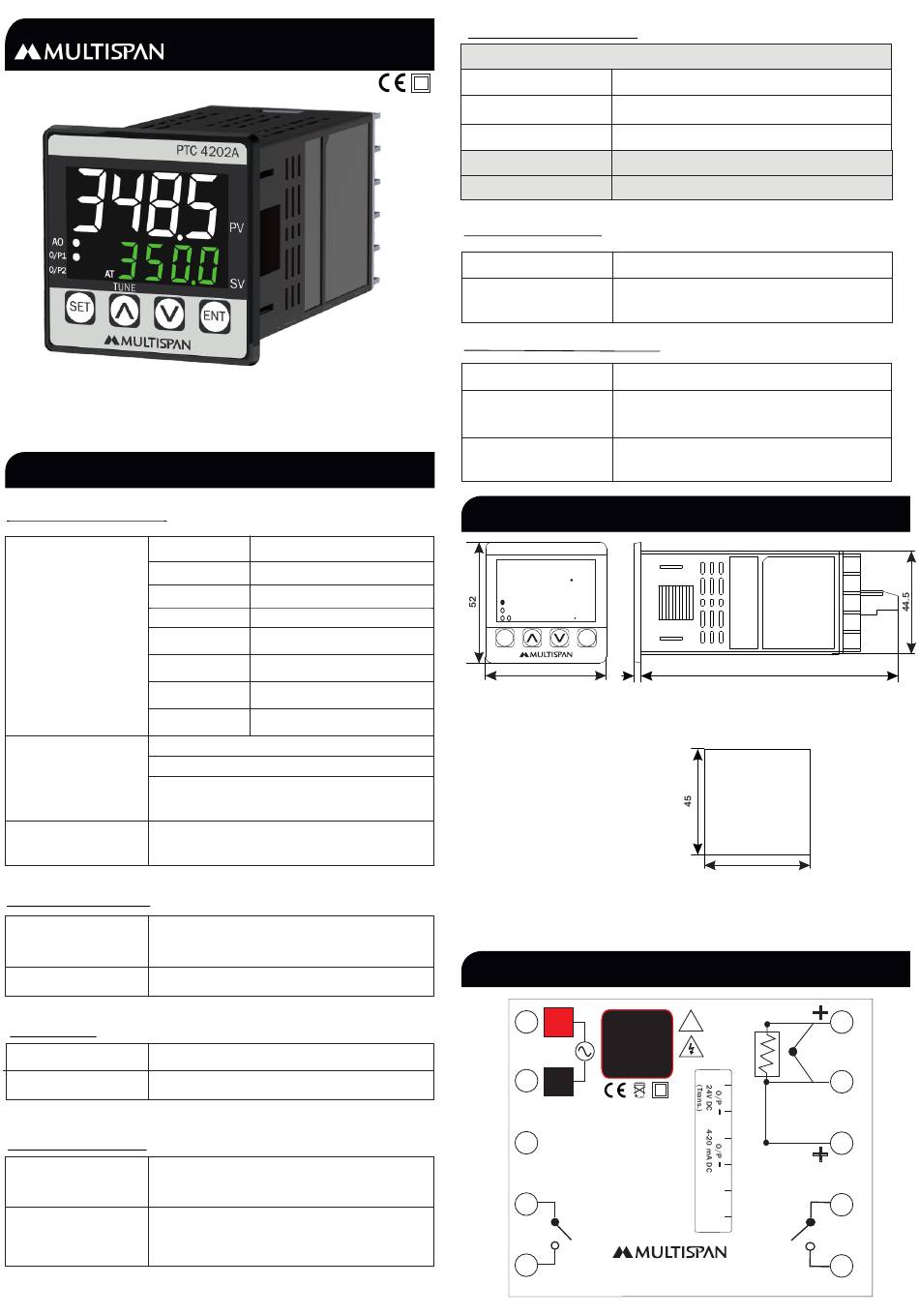

PROCESS TEMPERATURE CONTROLLER
PV = Process value
SV = Set Value
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input Types
PT-100
0-10V DC
0-20mA DC
4-20mA DC
Resolution
J,K,PT-100 = 1°C
PT.1 = 0.1°C
0-10V DC,0-20mA DC,4-20mA DC
= 0.1,0.01,0.001,0001
±1% of FSD ± 1°C
Indication
Accuracy
(FSD:- full scale deflection)
DISPLAY AND KEYS:
Display
Upper: 4 digit, 7 segment, 0.56" White
Lower: 4 digit, 7 segment, 0.33" Green
Keys
SET, INC, DEC, ENT
DIMENSION:
Size
52 (H) x 52 (W) x 111 (D) mm
Panel Cutout
45 (H) x 45 (W) mm
CONTROL METHOD:
Heating
1) PID control with Auto-Tuning
2) ON-OFF control
Cooling
1) BL.TP (Blower Time Proportion)
2) ON-OFF control
PTC-4202A
Display Color:
Upper : White Or Red
Lower : Green
Input
Range
J
0 to 600°C,
K
0 to 1200°C,
-99 to 400°C,
PT.1
-99.9 to 400.0°C,
-999 to 9999
-999 to 9999
-999 to 9999
OUTPUT SPECIFICATION
Relay Output
Relay
2 nos.
Relay Type
1 C/O (NO-C)
Rating
5A, 230V AC/30 V DC
Analog Output
4 to 20mA DC
Transmitter supply
24V DC
AUXILIARY SUPPLY
Supply voltage
100 to 270V AC, 50-60Hz
Power consumption
Approx 7 VA @ 230V AC MAX
(VA RATING)
ENVIRONMENT CONDITION
Operating Temp.
Relative Humidity
Protection Level
MECHANICAL INSTALLATION
PTC 4202A
4485
PV
4500
AO
O/P1
O/P2
AT
SV
TUNE
SET
ENT
3
52
FRONT VIEW
All dimensions are in mm
TERMINAL CONNECTION
L
100
1
270V AC
50/60 Hz
7VA
N
2
Made in India
3
4
C
R1
NO
5
www.multispanindia.com
0°C to 55°C
UP to 95% RH
(non-condensing)
IP-65 (Front side) As per IS/IEC
60529 : 2001
111
RIGHT SIDE VIEW
Panel Cutout
45
0-10V DC
~
!
TC
-
+
0/4-20
mA DC
+
RTD
C
R2
NO
6
7
8
9
10
