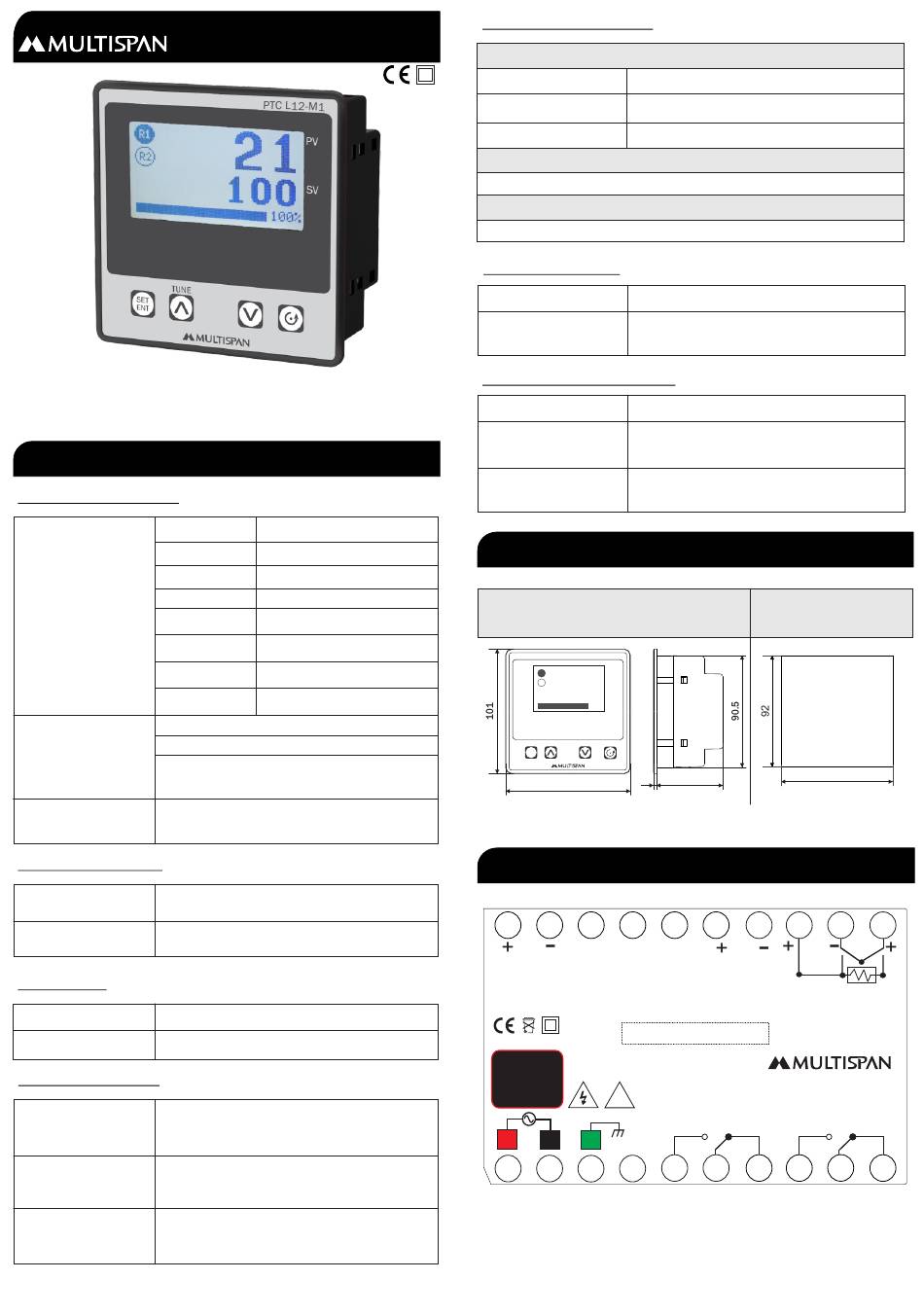

MULTISPAN PTC-L12-M1 Installation Manual
MULTISPAN PTC-L12-M1 Installation Manual

MULTISPAN PTC-L12-M1 Installation Manual

Process temperature controller

Advertisement

Quick Links

PROCESS TEMPERATURE CONTROLLER
PV = Process value
SV = Set Value
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input Types
Input
PT-100
PT.1
0-10V DC
0-20mA DC
4-20mA DC
Resolution
J,K,PT-100 = 1°C
PT.1 = 0.1°C
0-10V DC,0-20mA DC,4-20mA DC
= 0.1,0.01,0.001,0001
±1% of FSD ± 1°C
Indication
Accuracy
(FSD:- full scale deflection)
DISPLAY AND KEYS:
Display
128 x 64 Bit Graphical LCD
Keys
SET/ENT, INC, DEC, SCROLL KEY
DIMENSION:
Size
101 (H) x 101 (W) x 54 (D) mm
Panel Cutout
92 (H) x 92 (W) mm
CONTROL METHOD:
1) PID control with Auto-Tuning
Heating
2) ON-OFF control
1) BL.TP (Blower Time Proportion)
Cooling
2) ON-OFF control
High / Low / Inband / Outband /
Alarm
Absolute low / Absolute outband
PTC- L12-M1
Range
J
0 to 600°C,
K
0 to 1200°C,
-99 to 400°C,
-99.9 to 400.0°C,
-999 to 9999
-999 to 9999
-999 to 9999
OUTPUT SPECIFICATION
Relay Output
Relay
2 nos.
Relay Type
1 C/O (NO-C-NC)
Rating
5A, 230V AC/30 V DC
Transmitter supply
24V DC
Modbus
RS-485
AUXILIARY SUPPLY
Supply voltage
100 to 270V AC, 50-60Hz
Power consumption
Approx 7 VA @ 230V AC MAX
(VA RATING)
ENVIRONMENT CONDITION
Operating Temp.
0°C to 55°C
Relative Humidity
UP to 95% RH
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
60529 : 2001
MECHANICAL INSTALLATION
Outline Dimension (mm)
PTC-L12-M1
34
R1
R2
100
100%
TUNE
SET
ENT
101
2.5
TERMINAL CONNECTION
20
19
18
17
O/P
24V DC
PTC L12-M1-A2-00
Made in India
~
100
270V AC
50/60 Hz
!
7VA
L
N
E
1
2
3
4
Panel Cutout
Dimension (mm)
92
101
16
15
14 13
12
D
D
PT-100
O/P
3W
MODBUS
0/4-20
mA DC
www.multispanindia.com
RELAY-1
RELAY-2
NO
NO
C
NC
C
5
6
7
8
9
11
T/C
0-10
V DC
NC
10

Advertisement

loading
Need help?

Need help?

Do you have a question about the PTC-L12-M1 and is the answer not in the manual?

Questions and answers

Summary of Contents for MULTISPAN PTC-L12-M1

  • Page 1 PT-100 -99 to 400°C, Outline Dimension (mm) Panel Cutout PT.1 -99.9 to 400.0°C, Dimension (mm) 0-10V DC -999 to 9999 PTC-L12-M1 0-20mA DC -999 to 9999 4-20mA DC -999 to 9999 100% Resolution J,K,PT-100 = 1°C PT.1 = 0.1°C TUNE 0-10V DC,0-20mA DC,4-20mA DC = 0.1,0.01,0.001,0001...
  • Page 2: Maintenance

    MECHANICAL INSTALLATION GUIDELINES DISPLAY INDICATION 1. Prepare the panel cutout with proper dimensions as shown above. 2. Fit the unit into the panel with the help of clamp given. 3. The equipment in its installed state must not come in close proximity to any heating source, caustic vapors, oils steam, or other unwanted process byproducts.
  • Page 3: Factory Setting

    FACTORY SETTING Factory Set FACTORY SETTING PARAMETER VALUES 20.0° 15 sec 0° C OFFSET 0° C HYSTERESIS-1 2° C HYSTERESIS-2 3° C C-PB 4.0° C C-ON 1 Sec 48Sec C-OFF CRFC ERROR DISPLAY When an error has occurred the display indicates error Message as given below.
  • Page 4: Alarm Operation

    RANGE FOR CONTROL PARAMETER PARAMETER RANGE FOR J,K,PT-100 RANGE FOR PT.1 SENSOR RANGE FOR ANALOG INPUT 0.0 to 999.9°C 0.0 to 999.9°C 0.0 to 999.9 0 to 9999 0 to 9999 0 to 9999 0 to 9999 0 to 9999 0 to 9999 4 to 99 sec 4 to 99 sec...
  • Page 5: Low Alarm

    ALARM OPERATION LOW ALARM: RLY-OFF RLY-OFF HYST RLY-ON RLY-ON RLY-OFF RLY-ON RLY-ON HIGH ALARM: RLY-ON RLY-ON HYST RLY-OFF RLY-OFF RLY-ON INBAND ALARM High S.P RLY-ON RLY-ON Low S.P RLY-OFF RLY-ON OUTBAND ALARM RLY-ON High S.P RLY-OFF Low S.P RLY-ON RLY-OFF RLY-ON...
  • Page 6 MAIN MENU SUB MENU SETPOINT SETTING If input If Analog input Corrc. Factor Decimal Point Offset correc. Set Low Limit Set High Limit Decimal Point. Low Range High Range Filter Time Select Sensor Soak Timer 4-20 select 4-20/0-20/0-10 Select Sensor Offset correc.
