AXIOMTEK PICO313 Quick Installation Manual page 2

SCN1
SCN2
SCN3

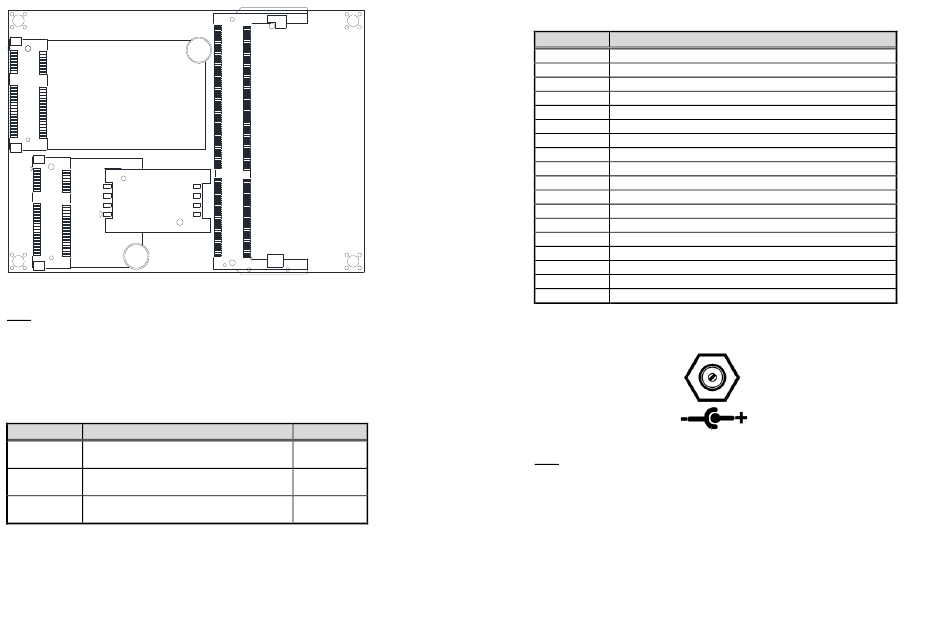

Bottom View
Note: Please refer to the PICO313 product information DVD for the complete
user's manual, drivers and utilities. User's manual and related
documents are in Acrobat PDF format.
Jumper Settings
Before applying power to the PICO313, please make sure all of the
jumpers are in factory default position.
Jumper Description
LVDS +3.3V/+5V/+12V Voltage Selection
JP2
Default: +3.3V
Restore BIOS Optimal Defaults
JP3
Default: Normal Operation
Auto Power On
JP4
Default: Enable
2
SSDIMM1
Setting
1-2 Close
1-2 Close
2-3 Close
9418H313000E
©
Copyright 2017 Axiomtek Co., Ltd.
Version A1 May 2017
Printed in Taiwan
Connectors
Connector Description
CN1 Board to Board Connector 1 (Low Speed Signal)
CN2 Board to Board Connector 2 (High Speed Signal)
CN4 USB 2.0 Wafer Connector
CN5 SATA Power Connector
CN6 SMBus Connector
CN7 Front Panel Connector
CN8 Digital I/O Connector
CN9 I2C Connector
CN10 LVDS Connector
CN11 Power Connector
CN12 Inverter Connector
BAT1 CMOS Battery Connector
LAN1 Ethernet Connector
SATA1
SATA Connector
Full-size PCI-Express Mini Card or mSATA Connector
SCN1
SCN2 SIM Card Socket
SCN3 Half-size PCI-Express Mini Card Connector
SSDIMM1 DDR3L SO-DIMM Connector
Quick Start
CN5 on AX93A07
Note: Please refer to AX93A07 quick installation guide for I/O board related
information.
The basic procedures required to power on PICO313:
(1). Require at least 60W/12V DC power adapter. Make sure that all
necessary peripheral devices are plugged properly.
(2). Check all jumper settings and make sure they are at default settings;
especially JP4 (2-3 close).
(3). To ensure normal functioning, DDR3L memory module must be
installed into SSDIMM1 until fully seated.
9418H313000E
©
Copyright 2017 Axiomtek Co., Ltd.
Version A1 May 2017
Printed in Taiwan
3
